Cloud services and open standard
Cloud architecture design, unified cloud service and management
Up to 1000 virtual conference room, easy for conference initiating
Standard H.323/SIP, H.239/BFCP, REST API for interoperability
High-performance and high-capacity
Up to 64 HD endpoints in one conference per unit
Up to 25CP (continuous presence) @2 group conference simultaneously
Up to 1000 concurrent IM clients
Max. Network throughput: 128Mbps
6-level cascade for large conference
Supports 10 TV wall servers stack
Excellent network adaptability
Embedded proxy for NAT and firewall traversal
IPLR (Intelligent Packet Loss Recovery)
Qos (DiffServ, IP Precedence)
Stream uploading and smooth sending control
Automatic redial if there is any disconnection
Multi-network-segment access
High reliability
Embedded OS
1+1 hot backup
Dual network port hot backup
Dual power hot backup

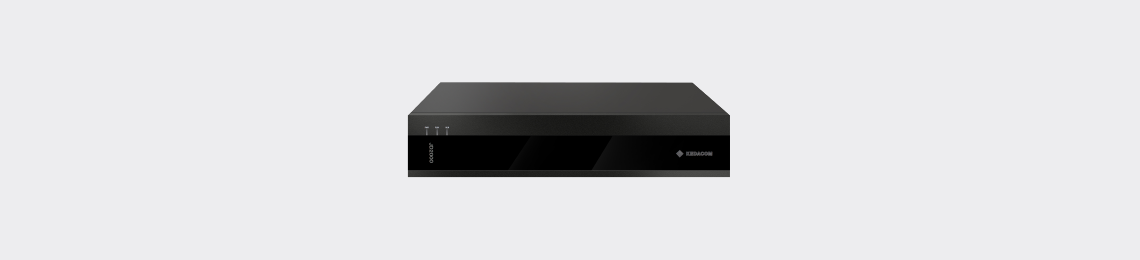

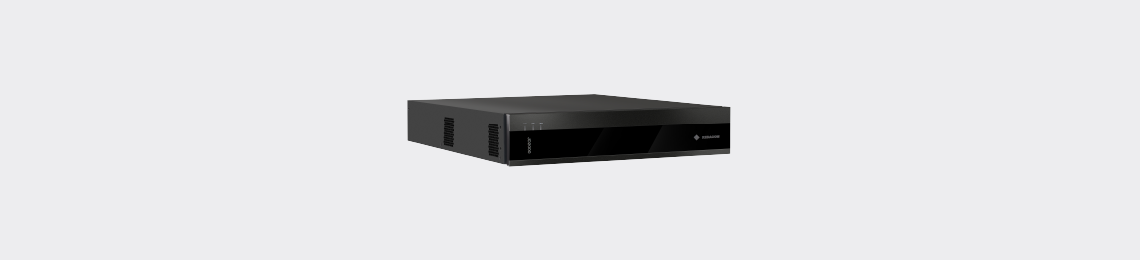

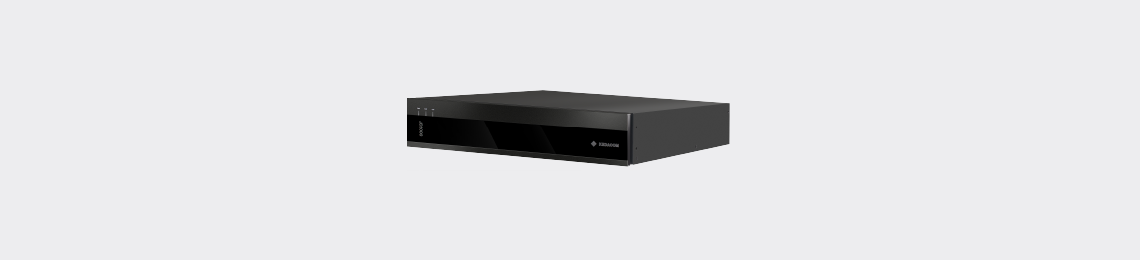

JD2000 | ||
Sub Models | -L | -H |
System standard | H.323, SIP H.225, H.235, H239, BFCP, H.245, H.281 | |
Video Standard | H.264HP, H.264BP | H.265, H.264HP, H.264BP |
Audio Standard | G.711、G.719、G.722、G.722.1 Annex C/Polycom® Siren14TM、G.728、G.729、Opus、MPEG-4 AAC(LC/LD stereo)、MPEG-4 AAC(LC/LD) | |
Network Protocol | TCP/IP, TELNET, SSH, FTP/FTPS, HTTP, RTP/RTCP/RTS | |
Conference Functions | Virtual conference room, independent conference call, conference appointment, email notification, SMS notification, conference schedule push, cloud address book, venue pre-supervision, conference recording and broadcasting control(with external server), conference subtitles, VIP continuous presence, voice activation switching, conference roll call, conference polling, virtual tv-wall, instant messaging, permanent conference | |
Conference Bitrate | 64Kbps-8Mbps | |
Call Capacity | User License: 2–64 Network Throughput: 128 Mbps Call Capacity:64 HD Endpoints(64 x 2M or 32 x 4M) Proxy Capacity:64 HD Endpoints ( 64 x 2M or 32 x 4M ) | |
Conference Group | Continuous Presence(CP) conference: H.264: 1080P30 / 720P30, 2 groups; or H.264: 1080P60, 1 group Audio Mixing: 2 groups Dual Call Rate: 1 group Resolution Adaptive: 1 group Pre-adaptor before CP: 1 group, access up to 4 sites@ 1080p30 or 9 sites @ 720p30 third party endpoints Speech Mode:10 group | Continuous Presence(CP) conference: H.264: 1080P30 / 720P30, 2 groups; or H.265: 1080P30, 1 group; or H.264: 1080P60, 1 group Audio Mixing: 2 groups Dual Call Rate: 1 group Resolution Adaptive: 1 group Pre-adaptor before CP: 1 group, access up to 4 sites@ 1080p30 or 9 sites @ 720p30 third party endpoints Speech Mode:10 group |
Video Resolution | Video: 1080i/p (1920 x 1080), 720p (1280 x 720), 4CIF (704 x 576), CIF (352 x 288) Content: UXGA (1600×1200), SXGA (1280×1024), WSXGA (1280×854), WXGA (1280×800), XGA (1024×768), SVGA (800×600), VGA (640×480) | |
Continuous Presence(CP) | 2/3/4/9/16/25/N+1 etc. Two modes for video source: dynamic following and manual specifying The speaker and administrator can be distinguished by window frame colors. | |
Audio | Customized or intelligent audio mixing mute and dumb Voice Active Detection | |
Dual Stream | H.239/BFCP supported Configurable video format and resolution The permission for initiating dual streams can be controlled. | |
Management | Unified web portal, unified user management, unified conference management, unified equipment management, unified resource management, unified report management | |
Instant Message | Supports XMPP protocol and instant messaging between software client endpoints; IM client supports viewing organizational structure, text chat, file transmission, group discussion, join virtual conference room, initiating conference and other functions; Supports up to 1000 concurrent IM clients without external server | |
Conference Initiating | Start a conference or schedule a conference through a web page Initiating a conference by template via hardware or software endpoints | |
Embedded GK | Endpoint registration Address resolution Call control Bandwidth control Regional management | |
Recording and Playback | Conference recordings and playbacks can be controlled. | |
Video Wall | Supports external video wall servers | |
Network | Embedded proxy to realize NAT/firewall transversal IPLR (Intelligent Packet Loss Recovery) Dynamic bitrate adjustment Qos(DiffServ, IP Precedence) MT stream uploading and smooth sending control Automatic recall due to disconnection Multi-network-segment access | |
Cascade Conference | Supports the combination of simply cascaded and combined cascaded conferences The main MCU can directly control the endpoints connected to lower level MCU Six-level cascading management | |
Security Features | Embedded OS H.235 conference encryption AES 256 encryption Conference password authentication, uninterrupted conference, hidden conference, User authentication and authorization Built-in firewall Settings | |

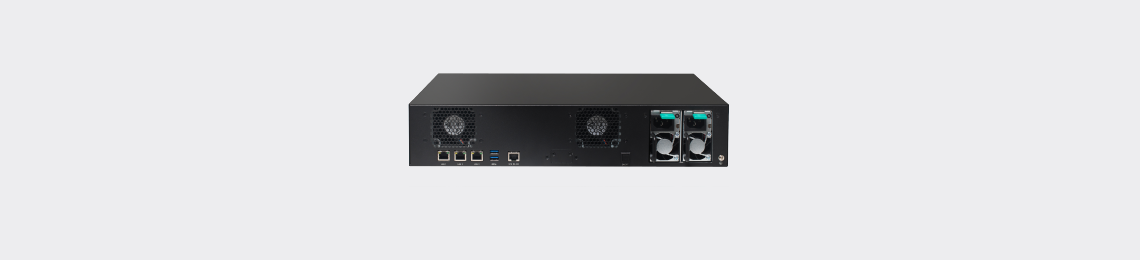

Interfaces | 3 x Gigabit network ports, RJ45 interface 2 x USB, 1 x RS232 | |
Reliability | Dual Network Port Backup Dual Power Backup 1+1 JD2000 Hot Backup with same configuration | |
Electricity | Power consumption: ≤250W Power supply: Dual Power Supply, AC (100V-240V/50~60Hz) | |
Operating Environment | Ground resistance: ≤5Ω Operating temperature: 0°C~45°C Operating humidity: 10%-90% (non-condensing) Atmospheric pressure: 70-106 kPa | |
Physical Characteristics | Weight: <10kg / 22lb Dimensions: 93 x 443 x 566mm / 3.66" x 17.44" x 22.28" |
