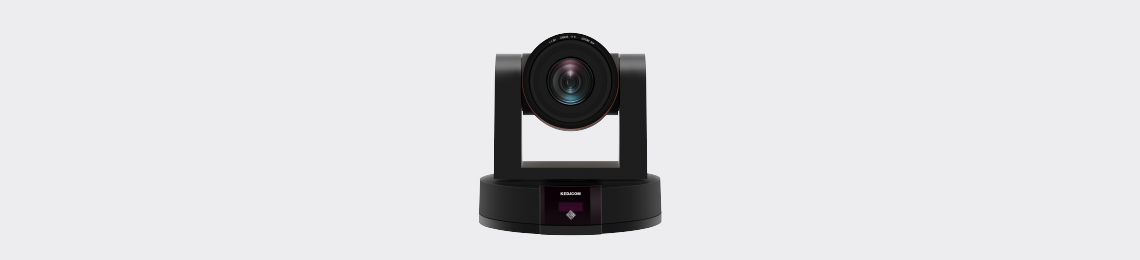

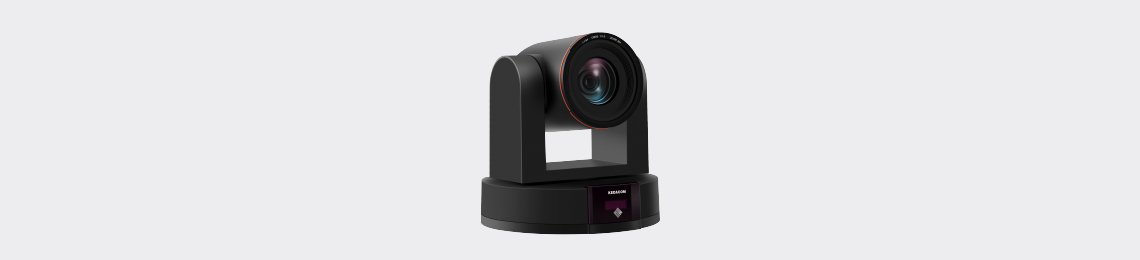

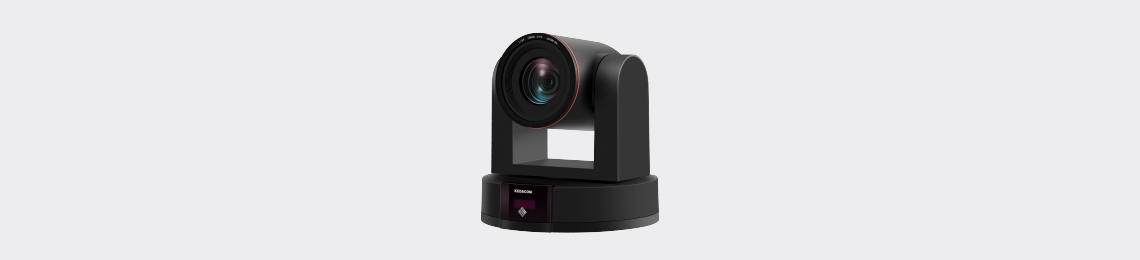

MOON70-4K30 4K UHD HDBaseT Conference Camera

Ingenious and mindful design, easy to use and deploy

Delicate appearance, High-tech sense, Independent R & D

Supports gravity sensing, upside-down mounting with automatic image flipping

The front panel comes with an OLED screen, which displays the output resolution and fault code, easy to use

HDBaseT output interface supports up to 100m long-distance lossless transmission, delivering maximum deployment flexibility

Standard with bracket, support upside-down and wall mounting

Zigbee control, 360° precision control

The lens will turn to -90° during standby to protect user privacy

High environmental adaptability, plug and play


High-end professional video experience

30x optical zoom, 16x digital zoom, wide-angle view, ±160° pan range, covering various conference room scenes

4K UHD image quality, clear and smooth, fast and accurate focus, strong environmental adaptability

Excellent ISP algorithm, support AWB (Automatic White Balance) / AE (Auto Exposure) / AF (Auto Focus), optimize the video effect especially under low illumination conditions


Abundant functions and features

Supports endpoint control camera, also support reverse control endpoint through camera's remote control

Configurable initial position of lens, Home / Preset 1 / Last position

Supports up to 255 presets


Widely compatible with third-party devices

Rich video output interfaces, support standard DVI-I (compatible with DVI / HDMI / YPbPr) and SDI high-definition video interfaces, compatible with third-party video conference endpoints

Support multiple control protocols, standard VISCA / PELCO-D / PELCO-P protocols, camera settings and pan / tilt / zoom functions can be controlled remotely via serial port

Provide SDK, convenient system integration



MOON70-4K30
Image Sensor1/1.8" CMOS
Effective PixelsApprox. 8 MP
Output Resolution4Kp30,4Kp25,4Kp24, 1080p60,1080p50,1080p30,1080p25,720p60,720p50
Lens30x optical zoom, 16x digital zoom
f=6 ~ 180mm, F=1.6 ~ 4.6
Gravity SensorUpside-down mounting with automatic image flipping
Horizontal Field of View2.6° ~ 58°
Min. Illumination0.1Lux
Signal Noise Ratio (SNR)> 50dB
Shutter Speed1 / 50 ~1 / 10000s
FocusAuto / manual
ExposureAuto / aperture priority / shutter priority / manual
White BalanceAuto / manual / single trigger
ImageColor / black and white
Mirror: Horizontal / vertical
Mode: Standard / Bright / Soft / Manual
2D noise reduction / 3D noise reduction
PTZ FeaturesConfigurable PTZ limit / zoom magnification display / PT maximum speed / Initial position
PAN Range±160°
TILT Range-90° ~ 50°,  -90°  standby (Exclusive design, privacy protection)
PresetsMaximum number: 255
Each preset supports different parameter settings

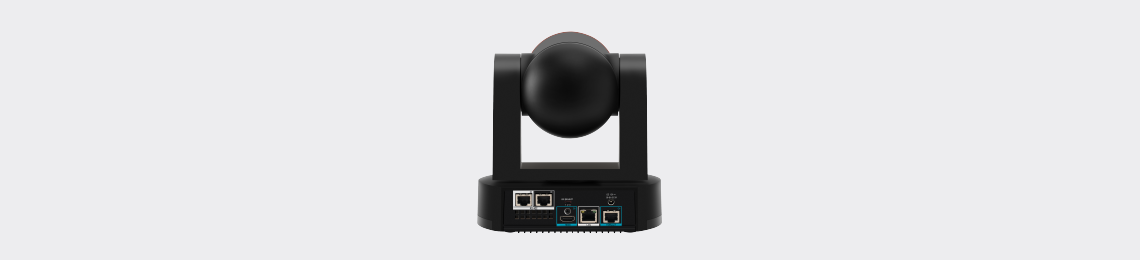

Video Interfaces1 x HDBaseT (100m long-distance lossless transmission, Video&Control&Power 3 in 1)
1 x HDMI
Control Interfaces1 x RS422 in, 1 x RS422 out
Supports daisy chain control
Supports VISCA / PELCO-D / PELCO-P control protocols
IR / ZigBee remote control
1 x IR dip switch
Network Interfaces1 x Network port, RJ45 interface (For remote update)
EnvironmentalOperating temperature: 0°C ~ 45°C / 32 ~ 113
Operating humidity: 10% ~ 90%
Atmospheric pressure: 53 ~ 106 kPa
ElectricalPower: DC 12V (10.8 ~ 13.2V)
Power consumption: Max. 24W
MechanicalWeight: Approx  2.5kg / 5.51lb
Dimensions: 184.2 x 187.4 x 196mm / 7.25" x 7.38" x 7.72"  (H x W x D)
