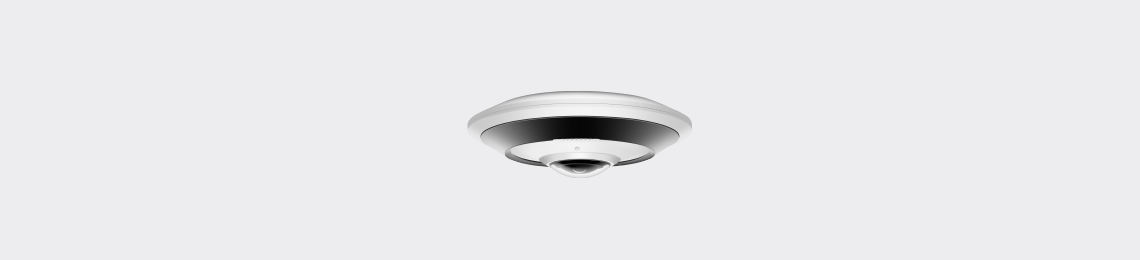

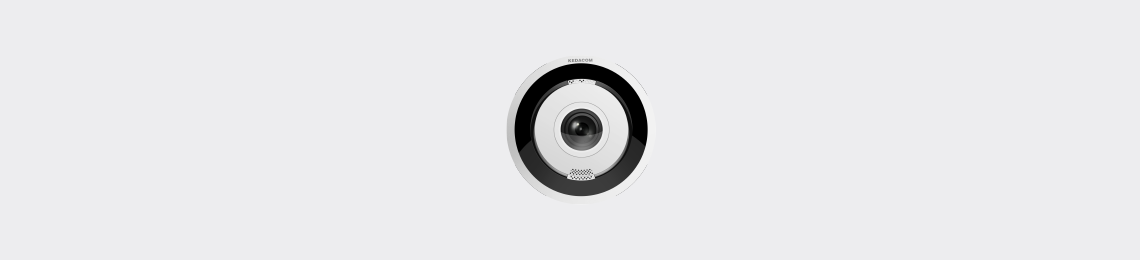

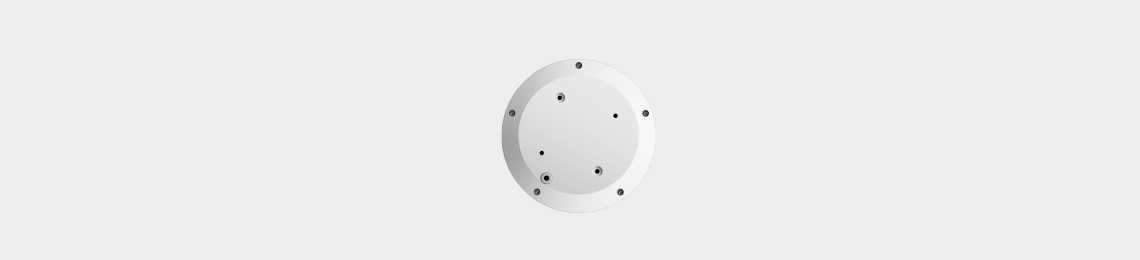

IPC2860-HN-PIR15 8MP Panoramic IR Fisheye Camera
Excellent Image Quality
  • 8.0 Megapixel 1/1.7'' progressive scan CMOS sensor
  • High definition and smooth picture, 3264×2448@25fps
  • H.265 video codec, saves up to 50% bandwidth and storage
  • Low illumination, 0.05lux with color picture
  • WDR / 3D noise reduction / Auto Iris / HLC
Intelligent Functions
  • Motion detection / Tampering / Guard line / Enter guard area / Exit guard area
Vandal-Proof
  • Above IK10 @ 50J collision energy
Integrated High Efficiency IR
  • Industrial IR LED with long operational lifespan
  • 15m IR distance
  • Smart IR function
A Variety of Installation Modes
  • Supports 180° image rotation
Abundant Functions and Features
  • Micro SD card slot, supports Automatic Network Replenishment (ANR)
  • Built-in Mic
  • Up to 5 Multi-stream
  • PoE
  • IP67



　IPC2860-HN-PIR15
Camera
Image Sensor 1/1.7’’ progressive scan CMOS
Pixels8.0 Megapixel
Min. Illumination Color: 0.05lux@ (F2.0, AGC ON)
B/W: 0lux  with IR
Shutter Speed1 ~ 1/30,000s
Day / NightAuto (ICR) / Color / B/W
Wide Dynamic RangeDigital WDR
S/N Ratio>50dB
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationOff / BLC / WDR / HLC

Mount TypeM12
Focal Length1.85mm (-L0185)
Angle of View-L0185: 180°
Infrared
IR Distance15m
IR IntensitySmart IR
Video
CompressionH.265 / H.264
Image ResolutionMain stream: 3264×2448
Secondary stream: D1
Frame RateMain stream: 3264×2448@25fps, 1080p@30fps
Secondary stream: D1@30fps
Bitrate32kbps ~ 16Mbps
Bitrate ControlVBR / CBR
Multi-streamSupported
CaptionDate and time / Alarm / Customized
Privacy MaskingUp to 4 zones
Motion DetectionUp to 4 zones
Video FreezeSupported
ROISupported
Digital Noise Reduction3D noise reduction
Digital DefogSupported
Image FlipFlip / Mirror / Rotation at 180°
Audio
CompressionG.711a / G.711u / ADPCM / G.722 / G.722.1c / G.726
Bitrate32kbps ~ 64kbps
Audio FunctionAEC / Dumb
Network
Network ProtocolsTCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User InterfaceIPC Control (IE, Firefox, Chrome)
Max. User AccessMax. 10 Users (includes 2 internal)
Application ProgrammingONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR)Supported
Alarm
Alarm TriggersNetwork disconnect / Disk full / Disk error
IntelligentMotion detection / Tampering / Guard line / Enter guard area / Exit guard area
Alarm EventsAlarm report / Recording / Text overlay / Snapshot / Email notice
Interfaces
Ethernet10/100M, RJ45 interface
Memory SlotMicro SD card slot, supports up to 256GB
Environmental
Operating Temperature-40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity 10% ~ 95%
Protection LevelIK10+ @50J, IP67
Electrical
Power DC12V ± 10% / PoE (IEEE802.3at)
Power ConsumptionMax. 20W
Mechanical
Weight 0.5 kg / 1.1lb (Gross Weight)
DimensionsΦ160× 47mm / Φ6.30’’ x 1.85’’
