IP68, adaptive to various environments
2 meters drop protection
KWTP protocol for 3G / 4G / Wi-Fi transmission, improves the video stream continuity under unstable network conditions
H.264 / H.265 video codec, saves up to 50% bandwidth and storage
Night view with LED and IR
High definition and smooth picture, 1080p@30fps
EIS function, ensures stable image quality during walking patrol
Optional extendable camera types (button, badge, ear-hook)
Supports face recognition
Built-in face comparison algorithm, offline alarm

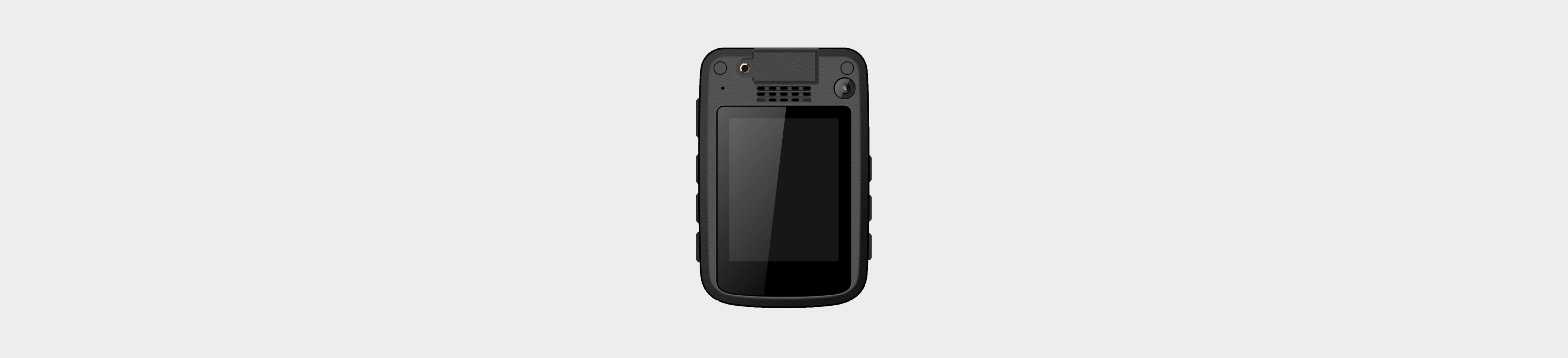

2.4” touchscreen display
Various shortcut button, additional customized function button
Supports location function by GPS, GLONASS
Supports external memory

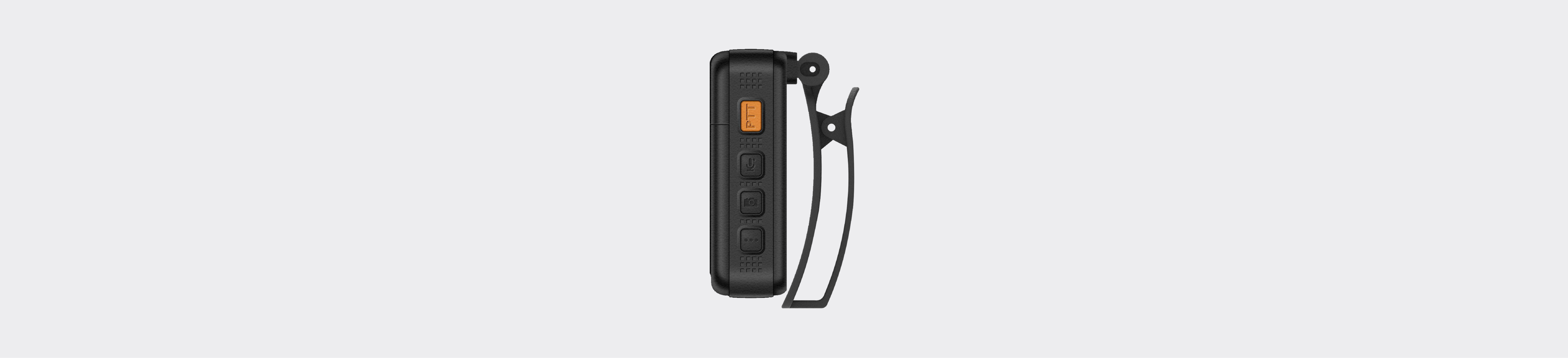

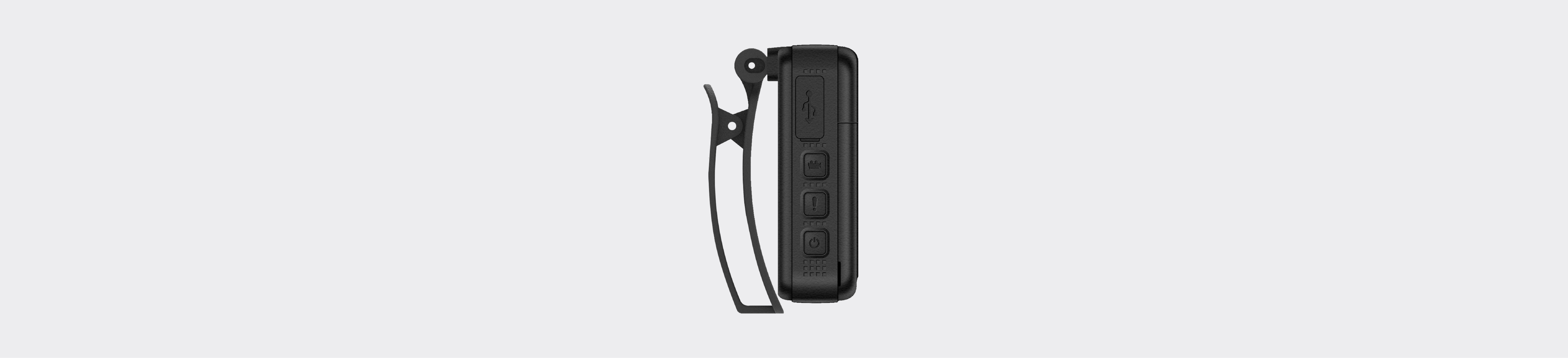

Supports removable clips
| DSJ-U3-LPN | ||
| System | ||
| Operating System | Deep customized Android OS | |
| Processor | Qualcomm 8 core 2GHz | |
| Application System | Customized law-enforcing recording software system | |
| RAM | 4GB | |
| Video | ||
| Compression | H.264 / H.265 | |
| Image Resolution | Main stream: 1080p | |
| Secondary stream: 720p | ||
| Frame Rate | Main stream: 1080p@30fps | |
| Secondary stream: 720p@30fps | ||
| Bitrate | 64Kbps ~ 8Mbps | |
| Dual-stream | Supported | |
| Caption | Date and time / Customized | |
| Watermark | Supported | |
| Audio | ||
| Compression | G.711a / G.7221c / ADPCM | |
| Coding Rate | 32Kbps ~ 64Kbps | |
| Audio Function | Bi-directional audio / AEC / Dumb / Mute | |
| Display | ||
| Size | 2.4” | |
| Technology | Visible under the sun | |
| Touchscreen | Supported | |
| Rear Camera | ||
| Image Sensor | 5MP 1/2.7’’ progressive scan CMOS | |
| Focal Length | 2.52mm | |
| Angle of View | Diagonal 120°, Horizontal 106° | |
| Snapshot Resolution | 40MP | |
| Night View | 1 white LED, 2 IR LED, 15M Infrared Distance | |
| Front Camera | ||
| Image Sensor | 5MP 1/5’’ progressive scan CMOS | |
| Focal Length | 2.26mm | |
| Angle of View | Diagonal 76.8°, Horizontal 46° | |
| Snapshot Resolution | 40MP | |
| Network | ||
| 3G | WCDMA: B1 / B2 / B5 / B8 TD-SCDMA: B34 / B39 EVDO: BC0 | |
| 4G | FDD-LTE: B1 / B3 / B7 / B20 / B26 / B28 TD-LTE: B38 / B39 / B40 / B41 | |
| Wi-Fi | 802.11 a/b/g/n/ac 2.4G+5GHz | |
| Bluetooth | Bluetooth 5.0 | |
| NFC | Supported (optional) | |
| Location Technology | GPS, GLONASS | |
| Storage | ||
| ROM | 64G | |
| External Memory | MicroSD (up to 256G) | |
| Interface | ||
| Shortcut Button | PTT, Power on/off, Video recording, Audio recording, Snapshot, Event tag, Customized function | |
| SIM | 1 x Micro SIM slot | |
| USB | 1 x Type C | |
| Protection | ||
| Protection Level | IP68 | |
| Shock Protection | 2 meters drop | |
| Battery | ||
| Capacity | 2600mAh | |
| Replaceable | Supported, continous work during battery replacing | |
| Built-in Camera Usage Time (Hours) * | 3G / 4G (on): Up to 8h | |
| Wi-Fi (on) : Up to 8h | ||
| 3G / 4G (off) and Wi-Fi (off): Up to 10h | ||
| External Camera (720p) Usage Time (Hours) * | 3G / 4G (on): Up to 3.5h | |
| Wi-Fi (on) : Up to 3.5h | ||
| 3G / 4G (off) and Wi-Fi (off): Up to 3.8h | ||
| External Camera (1080p) Usage Time (Hours) * | 3G / 4G (on): Up to 3.2h | |
| Wi-Fi (on) : Up to 3.2h | ||
| 3G / 4G (off) and Wi-Fi (off): Up to 3.5h | ||
| Environmental | ||
| Operating Temperature | -30°C ~ 70°C / -22°F ~ 158°F | |
| Mechanical | ||
| Weight | 188g / 0.414lb (including battery & clip) 169g / 0.37lb (including battery) | |
| Dimensions | 89.9× 58.7× 31.3mm / 3.54’’ x 2.31’’ x 1.23’’ | |
| Accessories | ||
| Standard | Power adapter, USB cable, Battery | |
| Optional | Additional battery, Button / Badge camera, Ear-hook camera | |
| * All battery claims depend on network configuration and many other factors, actual results will vary. | ||
