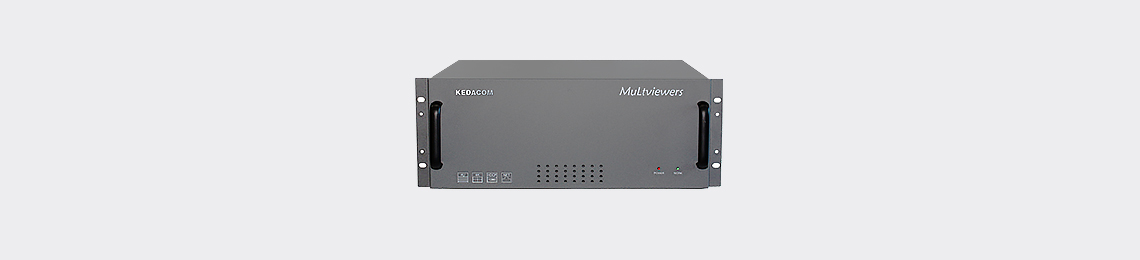

Splicing Processor
Splicing Processor is a high performance image processing platform, between video source and transmitter. It can support multiple video signals' input, output and real-time processing, work in the core position of whole system. User can select different I/O card by inserting into different chassis. Options of chassis are 4U, 8U, 14U and 22U.

The product is equipped with high volume, high speed FPGA array and CrossPoint digital muilti-bus routing exchange technology, which guarantees all input signal that are processed in real-time and high data uniformity without delay, discretization or frame loss, which offers best-in-class image. In support of multiple screen control with different resolutions, separated display and multi-channel video input displayed anywhere in video wall, all windows can be moved, overlapped, zoomed in and out and PIP displayed freely.
ModelMSP100-X1-4UMSP100-X1-8UMSP100-X1-14UMSP100-X1-22U
GeneralSPEC19-inch, 4U19-inch, 8U19-inch, 14U19-inch, 22U
Dimensions (mm)438 × 316 × 178 (mm)438 × 316 × 356 (mm)438 × 316 × 623 (mm)438 × 316 × 979 (mm)
 CardInput Slot6132432
Output Slot24.5918
Max. Input Channel16 × 1080p + 4 × 4K / 24 × 1080p36 × 1080p + 8 × 4K / 52 × 1080p64 × 1080p + 16 × 4K / 96 × 1080p56 × 1080p + 36 × 4K / 128 × 1080p
Max. Output Channel4 × 4K / 8 × 1080p9 x 4K / 18 × 1080p18 x 4K / 36 × 1080p36 x 4K / 72 × 1080p
ControlLAN Port1 × RJ-45 port, Ethernet 10/100Base-T1 × RJ-45 port, Ethernet 10/100Base-T1 × RJ-45 port, Ethernet 10/100Base-T1 × RJ-45 port, Ethernet 10/100Base-T
Debug port2 × RS232 port2 × RS232 port2 × RS232 port2 × RS232 port
Power SupplyRedundant Power Supply-SupportedSupportedSupported
Hot-swapSupportedSupportedSupportedSupported
Module11 (the second power is optional)22
Input VoltageAC110~220V (50~60Hz)AC110~220V (50~60Hz)AC110~220V (50~60Hz)AC110~220V (50~60Hz)
Max Consumption200W420W600W800W
OperationMTBF30,000hrs30,000hrs30,000hrs30,000hrs
MTTR10s10s10s10s
Operating temp. (℃ )-10 ~ +55-10 ~ +55-10 ~ +55-10 ~ +55
Operating humidity (RH)10~90% RH non-condensing10~90% RH non-condensing10~90% RH non-condensing10~90% RH non-condensing
Shockproof LevelISTA 1A cartonISTA 1A cartonISTA 1A cartonISTA 1A carton
CoolingAir cooling componentAir cooling componentAir cooling component

Air cooling component



ModelTypeChannelPortResolution
D-ICInput4DVI-D1080p
R-ICInput4VGA1080p
H-ICInput4HDMI1080p
N-ICInput4Twisted-pair1080p
F-ICInput4Optical1080p
V-ICInput16CVBS（2 DVI  convert to 16 CVBS）NTSC/PAL
W-ICInput4CVBSNTSC/PAL
S-ICInput4SD / HD / 3G SDI1080p
R+ICInput4YPbPr1080p
HD-ICInput2Dual-link DVI4K
UH-ICInput2HDMI 1.44K
DP-ICInput2DP4K
HI-ICInput2RJ451080p
D-OCOutput4DVI-I / VGA1080p
H-OCOutput4HDMI1080p
N-OCOutput4Twisted-pair1080p
S-OCOutput4SDI1080p
F-OCOutput4Optical1080p
UH-OCOutput2HDMI 1.44K
HD-OCOutput2Dual-link DVI4K
02PVSignal pre-monitor128RJ45Supports browse channel signal source real-time by computer software
