13.3” color LCD with resolution of 1920*1080
Supports up to 24 units of body worn camera
Supports up to 24TB storage
Wall-mounted and desktop design, easy to install
Modular design, easy to upgrade system capacity
Open slot design, compatible with all kinds of portable cameras
Plug and play, auto charging and data transmission
Touch screen operation
Record searching and playback
Use password / fingerprint to request device
Priority slot for high speed data transmission
Built-in battery protection for sudden power-off / shut down

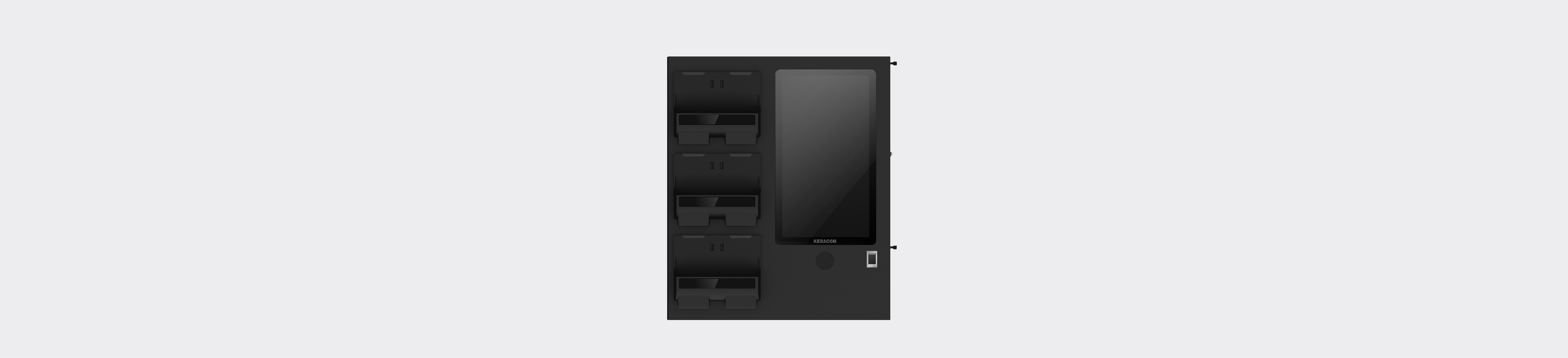

| ZCS-KDCA3 | |
| System | |
| Operating System | Windows10 |
| Processor | Intel N3710 |
| Application System | Data Docking Station Management Software |
| RAM | 4GB |
| User Management | Admin / User |
| Log Management | User login / User operation / Alarm / Update |
| Display | |
| Size | 13.3” |
| Resolution | 1920*1080 |
| Touch Screen | Supported |
| Search & Playback | |
| File Type | Video, Audio, Pic, Log |
| Search Mode | Duration filter / Tag |
| Playback Resolution | 1 x 1080p@30fp |
| Functions | Querying, Viewing, Downloading, Removing |
| Slot | |
| Default Slot | ZCS-KDCA3-6N: 6 Slots by default, supports 6 units of Body Worn Camera Supports up to 3 extended modules (6 slots per module) Applies to DSJ-U1-S, DSJ-U1-LPN and DSJ-U3-LPN |

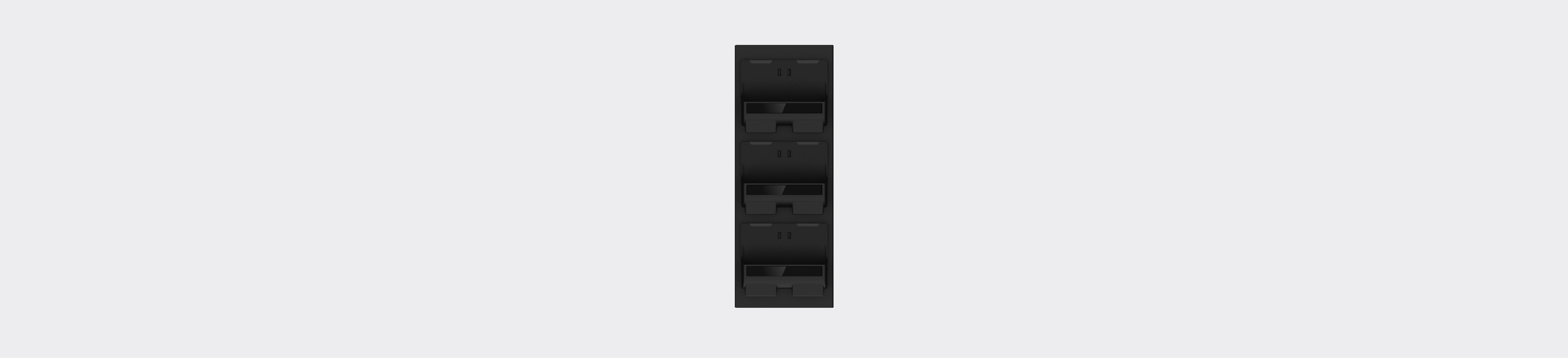

| Extended Module | ZCS-KDCA1-EX6N: Extended module of ZCS-KDCA3-6N, 6 slots per module, supports 6 units of Body Worn Cameras) Applies to DSJ-U1-S, DSJ-U1-LPN and DSJ-U3-LPN |
| Slot Funtions | Battery charging, Data transmission, Lock, Priority slot, Automatic upgrade, Time correction |
| Data Loading Speed | Full load: up to 4.6MB/s per slot For priority slot: up to 15MB/s |
| Alarm | |
| System Alarm Triggers | No disk / Insufficient recording space / Network disconnected |
| Alarm Events | Buzzer / Alarm text |
| Storage | |
| Max. Internal HDDs | 3 x 3.5” hard disk drawer (1 x 4TB Hard disk included) |
| Max. 24TB (up to 8TB/each) | |
| Interfaces | |
| Ethernet | 1 x Gigabite network port, RJ45 interface |
| Audio Out | Build-in speaker |
| Point lock | 1 x Point lock (Unlock all devices at the same time bye key) |
| USB | 2 x USB 2.0 |
| Environmental | |
| Operating Temperature | -10°C ~ 55°C / 14°F ~ 131°F |
| Operating Humidity | 10% ~ 95% |
| Electrical | |
| Power | 100 ~ 240V AC, 50 ~ 60Hz |
| Power Consumption | ZCS-KDCA3-6N: Max. 105W ZCS-KDCA3-6N + 1 x ZCS-KDCA3-EX6N: Max. 135W ZCS-KDCA3-6N + 2 x ZCS-KDCA3-EX6N: Max. 165W ZCS-KDCA3-6N + 3 x ZCS-KDCA3-EX6N: Max. 195W |
| Emergency Power | Built-in battery: 2150mAh |
| Mechanical | |
| Weight | ZCS-KDCA3-6N: 10.3Kg / 22.7lb (HDD not included) ZCS-KDCA3-EX6N: 3.68Kg/8.11lb |
| Dimensions | ZCS-KDCA3-6N: 430 x 510 x 113mm / 16.92’’ x 20.08’’ x 4.45’’ ZCS-KDCA3-EX6N: 190 x 510 x 113mm / 7.48’’ x 20.08’’ x 4.45’’ |
