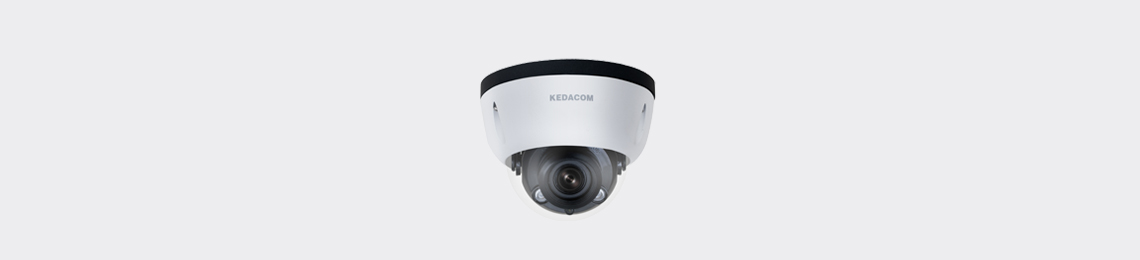

IPC2233-FN-SIR40 2.0MP Starlight & Ultra WDR HD Network Vandal-Proof Varifocal IR Semi Dome
Excellent Image Quality
  • 2.0 Megapixel 1/2.8'' progressive scan CMOS sensor
  • High definition and smooth picture, 1080p@30fps
  • H.265 video codec, saves up to 50% bandwidth and storage
  • Ultra low illumination, 0.002lux with color picture
  • 120dB Ultra WDR
  • 3D noise reduction / Auto Iris / HLC
Intelligent Functions
  • Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
 Vandal-Proof
  • Above IK10 @ 50J collision energy
 Integrated High Efficiency IR
  • Industrial IR LED with long operational lifespan
  • 20 ~ 40m IR distance
  • Smart IR function
 A Variety of Installation Modes
  • Supports 90°, 180°, 270° image rotation
  • Motorized varifocal lens
 Abundant Functions and Features
  • Micro SD card slot, supports Automatic Network Replenishment (ANR)
  • Bi-directional audio / alarm in and out / video out / RS485
  • 2 channel audio input simultaneously
  • Up to 3 Multi-stream
  • PoE
  • IP67
 　IPC2233-FN-SIR40
 Camera
 Image Sensor 1/2.8’’ progressive scan CMOS
 Pixels2.0 Megapixel
 Min. Illumination Color: 0.002lux@ (F1.6,  AGC ON)
 B/W: 0.0002lux@ (F1.6,  AGC ON); 0lux  with IR
 Shutter Speed1 ~ 1/30,000s
 Day / NightAuto (ICR) / Color / B/W
 Wide Dynamic RangeUltra WDR, >=120dB
 S/N Ratio>50dB
 White BalanceAuto / Manual
 Gain ControlAuto / Manual
 Backlight CompensationOff / BLC / WDR / HLC
 Lens
 Mount TypeΦ14
 Auto IrisDC drive
 Focal Length-Z2712: 2.7~12mm @ F1.6 motorized varifocal lens
 Focus ControlManual / Semi-Automatic / Auto
 Angle of View-Z2712: 106° ~ 33°
 Adjustment RangePan: -120° ~ +120° / Tilt: 0° ~ 65° / Rotation: -90° ~ +90°
 Infrared
 IR Distance20 ~ 40m
 IR IntensitySmart IR
 Video
 CompressionH.265 / H.264 / MJPEG
 Image ResolutionMain stream: 1080p
 Secondary stream: D1
 Frame RateMain stream: 1080p@30fps
 Secondary stream: D1@30fps
 Bitrate32kbps ~ 16Mbps
 Bitrate ControlVBR / CBR
 Multi-streamSupported
 CaptionDate and time / Alarm / Customized
 Privacy MaskingUp to 4 zones
 Motion DetectionUp to 4 zones
 Video FreezeSupported
 ROISupported
 Digital Noise Reduction3D noise reduction
 Digital DefogSupported
 Image FlipFlip / Mirror / Rotation at 90°,180°,270°
 Audio
 CompressionG.711a / G.711u / ADPCM / G.722 / G.722.1c / G.726
 Bitrate32kbps ~ 64kbps
 Audio FunctionBi-directional audio / AEC / Mixed audio recording / Dumb / Mute
 Network
 Network ProtocolsTCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional), IGMP
 User InterfaceIPC Control (IE, Firefox, Chrome)
 Max. User AccessMax. 10 Users (includes 2 internal)
 Application ProgrammingONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
 Automatic Network Replenishment (ANR)Supported
 Alarm
 Alarm TriggersAlarm input / Network disconnect / Disk full / Disk error
 IntelligentMotion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
 Alarm EventsAlarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm
 Interfaces
 Ethernet10/100M, RJ45 interface
 Audio In / Out2 x Line in / 1 x Line out
 Control1 x RS485
 Alarm In / Out1 x Input / 1 x Output
 Video Out1 x BNC, 1.0V [p-p] / 75Ω
 Memory SlotMicro SD card slot, supports up to 128GB
 Environmental
 Operating Temperature-40°C ~ 70°C / -40°F ~ 158°F
 Operating Humidity 10% ~ 95%
 Protection LevelIK10+ @50J, IP67
 Electrical
 Power DC12V ± 10% / PoE (IEEE802.3af)
 Power ConsumptionMax. 11W
 Mechanical
 Weight 0.71 kg / 1.57lb (Gross Weight)
 DimensionsΦ122× 96.13mm / Φ4.8’’ x 3.78’’
