4K Megapixel 1/1.7’’ Progressive Scan CMOS Sensor
High definition and smooth picture, 4K@30fps
H.265 video codec, saves up to 50% bandwidth and storage
Ultra low illumination, 0.006lux with color picture
IR automatically adjust
120dB Ultra WDR
3D noise reduction / HLC / BLC
Industrial components, withstands operation temperatures of -40°C ~ 70°C
IP66, TVS 6000V lightning protection, surge protection and voltage transient protection
23x optical zoom
IR distance up to 200m
Micro SD card optional, supports Automatic Network Replenishment (ANR)
Wiper supported

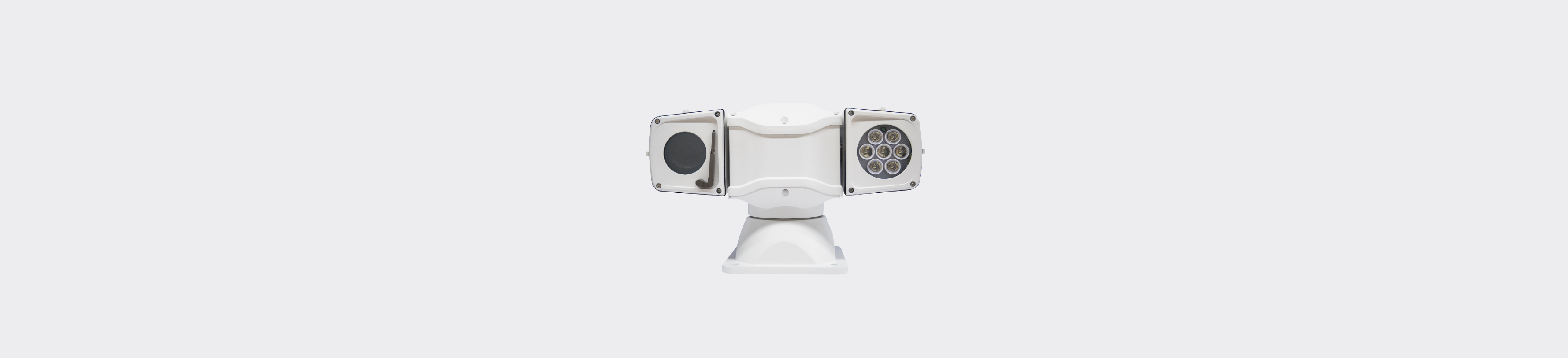

Vehicle based PT structure
| IPC523-F833-N | |
| Camera | |
| Image Sensor | 1/1.7’’ Progressive Scan CMOS |
| Pixels | 2.0 Megapixel |
| Min. Illumination | Color: 0.006lux @ (F1.6, AGC ON) |
| B/W: 0.0006lux @ (F1.6, AGC ON); 0lux with IR | |
| Shutter Speed | 1 ~ 1/30,000S |
| Day / Night | Auto (ICR) / Color / B/W |
| Wide Dynamic Range | Ultra WDR, 120dB |
| S/N Ratio | >57dB |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Backlight Compensation | Off / WDR / BLC / HLC |
| Lens | |
| Focal Length | 6 ~ 138mm, 23x optical |
| Zoom Speed | Approx 3s (Optical) |
| Angle of View | 60°~ 3.8° (Wide~Tele) |
| Min. Object Distance | 10 ~ 1500mm (Wide~Tele) |
| Max. Aperture Ratio | F1.5 (Wide) / F3.4 (Tele) |
| Focus Control | Auto / Manual / Semi-Automatic |
| Infrared | |
| IR LED | 7pcs IR LED Array |
| IR Distance | 150 ~ 200m |
| IR Intensity | Automatically adjust according to zoom ratio |
| Pan and Tilt | |
| Pan / Tilt Range | 360° Endless / -85° ~ 85° (Auto Flip) |
| Pan / Tilt Speed | Pan manual speed: 0.1° ~ 60°/s; Pan preset speed: 100°/s |
| Tilt manual speed: 0.1° ~ 40°/s; Tilt preset speed: 80°/s | |
| Proportional Zoom | Pan / Tilt speed can be adjusted automatically according to zoom multiples |
| Preset | 256 |
| Patrol | 8 Patrols scheme, up to 32 presets per patrol |
| Pattern Scan | 4 Scan paths, each path can record 10 minutes of operation path |
| Power-off Memory | Power-off memory / Power-on recovery |
| Auto Guard | Path / Preset / Mixed / Pan scan / Tilt scan / Frame scan / Random scan / Panorama scan |
| PT Limit | Manual / Scan / Pan |
| 3D Positioning | PTZ control with mouse click and drag |
| Wiper | Supported |
| Video | |
| Compression | H.265 / H.264 / MJPEG |
| Image Resolution | Main stream: 4K |
| Secondary stream: 1080P | |
| Third stream：720P | |
| Frame Rate | Main stream: 4K@30fps |
| Secondary stream: 1080P@30fps | |
| Third stream：720P@60fps | |
| Bitrate | 32kbps ~ 16Mbps |
| Bitrate Control | VBR / CBR |
| Multi Stream | Supported |
| Caption | Date and time / Alarm / Direction / Customized |
| Privacy Masking | Up to 4 zones |
| Motion Detection | Up to 4 zones |
| Video Freeze | Supported |
| ROI | Supported |
| Digital Noise Reduction | 3D noise reduction |
| Digital Defog | Supported |
| Image Flip | Flip / Mirror |
| Network | |
| Network Protocols | TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional) |
| User Interface | IPC Control (IE, firefox, Chrome) |
| Max. User Access | Max. 10 Users (includes 2 internal) |
| Application Programming | Onvif (Profile S, Profile G), GB/T 28181-2016, API, CGI |
| Alarm | |
| Alarm Triggers | Network disconnect |
| Alarm Events | Alarm report / Text overlay / Email notice |
| Interfaces | |
| Ethernet | 10/100M, RJ45 interface |
| Control | 1 x RS485 |
| Video Out | 1 x BNC |
| Memory Slot | Built-in Micro SD card (optional), up to 256GB |
| Environmental | |
| Operating Temperature | -40°C ~ 70°C / -40°F ~ 158°F |
| Operating Humidity | 10% ~ 95% |
| Protection Level | IP66, TVS 6000V lightning protection, surge protection and voltage transient protection |
| Electrical | |
| Power | 9 ~ 36V DC, wide range voltage input |
| Power Consumption | Max. 50W (IR on) |
| Mechanical | |
| Weight | 11.2kg / 24.69lb (Gross Weight) |
| Dimensions | 398 × 212 × 244mm / 15.67’’ x 8.35’’ x 9.61’’ |
