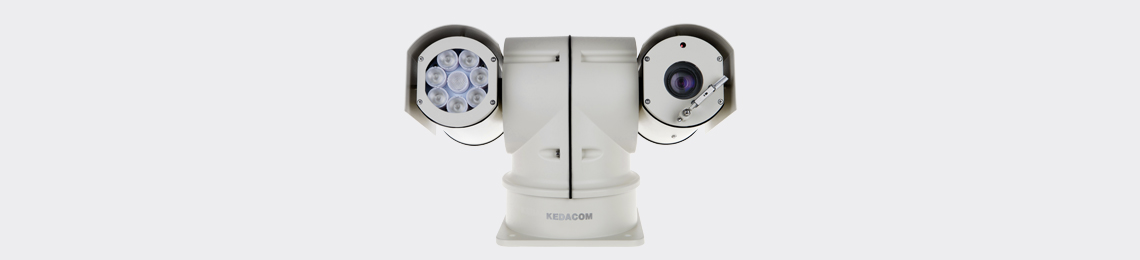

IPC521-F233-N 2.0MP 33x Vehicle PTZ Camera
Excellent Image Quality
  • 2.0 Megapixel 1/3’’ Progressive Scan CMOS Sensor
  • High definition and smooth picture, 1080p@30fps
  • H.265 video codec, saves up to 50% bandwidth and storage
  • Ultra low illumination, 0.003lux with color picture
  • IR automatically adjusts
  • 120dB Ultra WDR
  • 3D noise reduction / HLC / BLC
Long Operation Lifespan
  • Industrial components, withstands operation temperatures of -40°C ~ 70°C
  • IP66, TVS 6000V lightning protection, surge protection and voltage transient protection
Large Scale
  • 33x optical zoom
  • IR distance up to 200m
Abundant Functions and Features
  • SD card optional, supports Automatic Network Replenishment (ANR)
  • Wiper supported
  • Vehicle based PT structure
　IPC521-F233-N
Camera
Image Sensor 1/3’’ Progressive Scan CMOS
Pixels2.0 Megapixel
Min. Illumination Color: 0.003lux @ (F1.6, AGC ON)
B/W: 0.0003lux @ (F1.6, AGC ON); 0lux with IR
Shutter Speed1 ~ 1/30,000S
Day / NightAuto (ICR) / Color / B/W
Wide Dynamic RangeUltra WDR, >=120dB
S/N Ratio>55dB
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationOff / WDR / BLC / HLC
Lens
Focal Length4.5 ~ 148.5mm, 33x optical
Zoom SpeedApprox 3s (Optical)
Angle of View67.8°~ 2.34° (Wide~Tele)
Min. Object Distance300 ~ 1500mm (Wide~Tele)
Max. Aperture RatioF1.6 (Wide) / F4.4 (Tele)
Focus ControlAuto / Manual / Semi-Automatic
Infrared
IR LED8pcs IR LED Array
IR Distance150 ~ 200m
IR IntensityAutomatically adjust according to zoom ratio
Pan and Tilt
Pan / Tilt Range360° Endless / -85° ~ 85° (Auto Flip)
Pan / Tilt SpeedPan manual speed: 0.1° ~ 80°/s; Pan preset speed: 120°/s
Tilt manual speed: 0.1° ~ 60°/s; Tilt preset speed: 100°/s
Proportional ZoomPan / Tilt speed can be adjusted automatically according to zoom multiples
Preset 256
Patrol8 Patrols scheme, up to 32 presets per patrol
Pattern Scan4 Scan paths, each path can record 10 minutes of operation path
Power-off MemoryPower-off memory / Power-on recovery
Auto GuardPath / Preset / Mixed / Pan scan / Tilt scan / Frame scan / Random scan / Panorama scan
PT LimitManual / Scan / Pan
3D Positioning PTZ control with mouse click and drag
WiperSupported
Video
Compression FormatH.265 / H.264 / MJPEG
Image ResolutionMain stream: 1080p
Secondary stream: D1
Frame RateMain stream: 1080p@30fps
Secondary stream: D1@30fps
Bitrate32kbps ~ 16Mbps
Bitrate ControlVBR / CBR
Multi StreamSupported
CaptionDate&Time / Alarm / Direction / Customized
Privacy MaskingUp to 4 zones
Motion DetectionUp to 4 zones
Video FreezeSupported
ROISupported
Digital Noise Reduction3D noise reduction
Digital DefogSupported
Image FlipFlip / Mirror
Network
Network ProtocolTCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User InterfaceIPC Control (IE, firefox, Chrome)
Max. User Access10 Users (include 2 internal access)
Application ProgramOnvif (Profile S, Profile G), GB/T 28181-2011, API, CGI
Alarm
Alarm TriggersNetwork disconnect
Alarm EventsAlarm report / Text overlay / Email notice
Interfaces
Ethernet10/100M, RJ45 interface
Memory SlotBuilt-in SD card (optional), up to 128GB
Environmental
Operating Temperature-40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity 10% ~ 95%
Protection LevelIP66, TVS 6000V lightning protection, surge protection and voltage transient protection
Electrical
Power 9 ~ 36V DC, wide range voltage input
Power ConsumptionMax. 60W (IR on)
Mechanical
Weight 7Kg / 15.44lb (Gross Weight)
Dimensions180 × 375 × 247.5mm / 7.09’’ x 14.77’’ x 9.75’’
