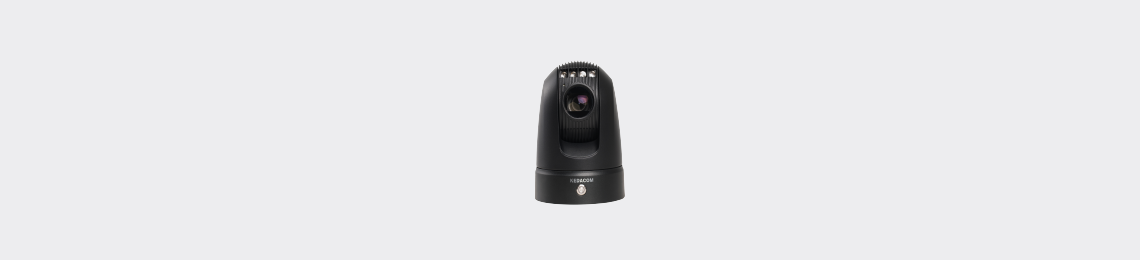

| IPC521-F120-G | |
| Camera | |
| Image Sensor | 1/2.8’’ Progressive Scan CMOS |
| Pixels | 2.0 Megapixel |
| Min. Illumination | Color: 0.003lux @ (F1.5, AGC ON) |
| B/W: 0.0003lux @ (F1.5, AGC ON); 0lux with IR | |
| Shutter Speed | 1 ~ 1/30,000S |
| Day / Night | Auto (ICR) / Color / B/W |
| Wide Dynamic Range | Digital WDR |
| S/N Ratio | >50dB |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Backlight Compensation | Off / WDR / BLC / HLC |
| Lens | |
| Focal Length | 4.7 ~ 94mm, 20x optical |
| Zoom Speed | Approx 3s (Optical) |
| Angle of View | 54.1°~ 2.9° (Wide~Tele) |
| Min. Object Distance | 300 ~ 1500mm (Wide~Tele) |
| Max. Aperture Ratio | F1.5 (Wide) / F3.0 (Tele) |
| Focus Control | Auto / Manual / Semi-Automatic |
| Infrared | |
| IR LED | 4pcs IR LED Array |
| IR Distance | 40 ~ 80m |
| IR Intensity | Automatically adjust according to zoom ratio |
| Pan and Tilt | |
| Pan / Tilt Range | 360° Endless / -15° ~ 90° (Auto Flip) |
| Pan / Tilt Speed | Pan manual speed: 0.1° ~ 30°/s; Pan preset speed: 40°/s |
| Tilt manual speed: 0.1° ~ 30°/s; Tilt preset speed: 40°/s | |
| Proportional Zoom | Pan / Tilt speed can be adjusted automatically according to zoom multiples |
| Preset | 256 |
| Patrol | 8 Patrols scheme, up to 32 presets per patrol |
| Pattern Scan | 4 Scan paths, each path can record 10 minutes of operation path |
| Power-off Memory | Power-off memory / Power-on recovery |
| Auto Guard | Path / Preset / Mixed / Pan scan / Tilt scan / Frame scan / Random scan / Panorama scan |
| PT Limit | Manual / Scan / Pan |
| 3D Positioning | PTZ control with mouse click and drag |
| Video | |
| Compression | H.265 / H.264 / MJPEG |
| Image Resolution | Main stream: 1080p |
| Secondary stream: D1 | |
| Frame Rate | Main stream: 1080p@30fps |
| Secondary stream: D1@30fps | |
| Bitrate | 64kbps ~ 16Mbps |
| Bitrate Control | VBR / CBR |
| Multi Stream | Supported |
| Caption | Date and time / Alarm / Direction / Customized |
| Privacy Masking | Up to 4 zones |
| Motion Detection | Up to 4 zones |
| Video Freeze | Supported |
| ROI | Supported |
| Digital Noise Reduction | 3D noise reduction |
| Digital Defog | Supported |
| Image Flip | Flip / Mirror |
| Network | |
| Network Protocols | TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional) |
| User Interface | IPC Control (IE, firefox, Chrome) |
| Max. User Access | Max. 10 Users (includes 2 internal) |
| Wireless | 3G / 4G / Wi-Fi |
| 3G / 4G Frequency Band | FDD-LTE: B1 / B2 / B3 / B5 / B7 / B8 / B20 TDD-LTE: B38 / B39 / B40 / B41 HSPA / UMTS: 850 / 900 / 1800 / 1900 / 2100MHz GSM / GPRS / EDGE: 850 / 900 / 1800 / 1900MHz TD-SCDMA: B34 / B39 EVDO/CDMA: BC0 / BC1 |
| Wi-Fi | 802.11b/g/n 2.4G, Wi-Fi AP |
| Location Technology | GPS, GLONASS (optional) |
| Application Programming | Onvif (Profile S, Profile G), API, CGI |
| Alarm | |
| Alarm Triggers | Network disconnect |
| Alarm Events | Alarm report / Text overlay / Email notice |
| Interfaces | |
| Aviation Port | 4-Pin 10/100M interface, 2-Pin Charge interface |
| Wi-Fi | Built-in Wi-Fi module |
| GPS | Build-in GPS module |
| 3G / 4G | Build-in 3G / 4G module |
| Memory Slot | Built-in 128G Micro SD card |
| Environmental | |
| Operating Temperature | Power supplied by built-in battary: -20°C ~ 60°C / -4°F ~ 140°F Power supplied by DC: -40°C ~ 70°C / -40°F ~ 158°F |
| Operating Humidity | 10% ~ 95% |
| Protection Level | IP66, TVS 6000V lightning protection, surge protection and voltage transient protection |
| Electrical | |
| Power | Built-in 10000mAH rechargeable lithium battery Up to 6 hours continous working with battary in 4G 12V DC ± 10% |
| Power Consumption | Max. 63W (IR on) |
| Mechanical | |
| Magnet | Built-in super magnet |
| Weight | 2.5kg / 5.51lb (Gross Weight) |
| Dimensions | Φ136 × 185mm / Φ5.35’’ x 7.29’’ |
| Accessories | |
| Optional | Three-proof Suitcase |
