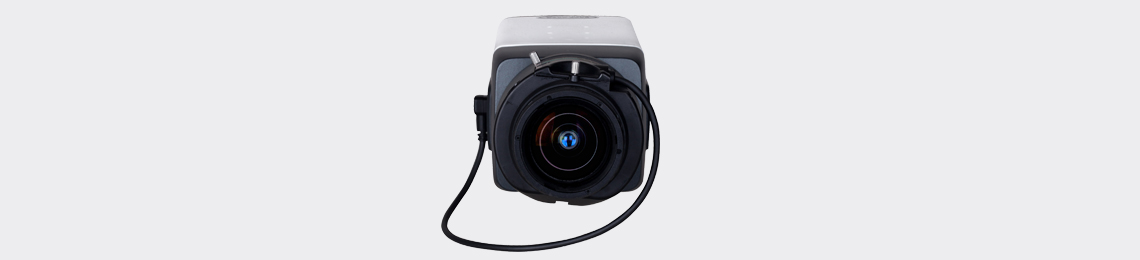

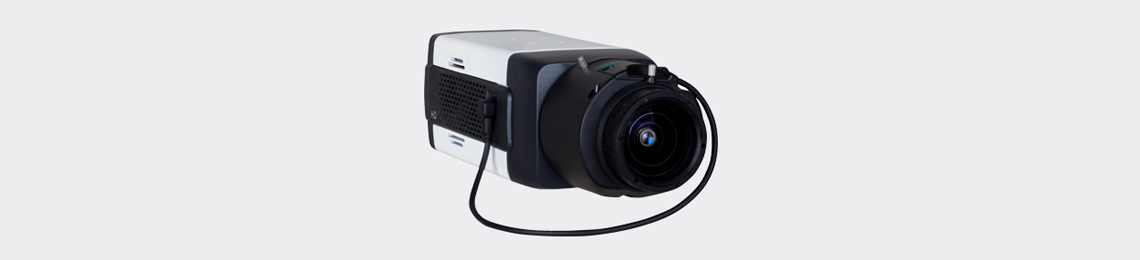

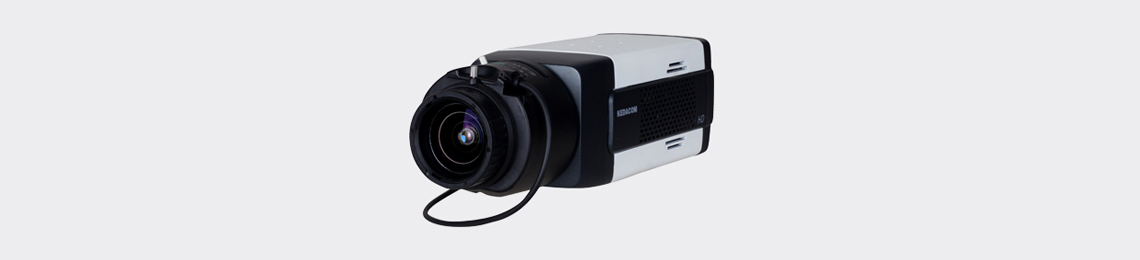

IPC185-AN | |
Camera | |
Image Sensor | 1/1.7’’ progressive scan CMOS |
Pixels | 8.0 Megapixel |
Min. Illumination | Color: 0.5lux @ (F1.2, AGC ON) |
B/W: 0.05lux @ (F1.2, AGC ON) | |
Shutter Speed | 1/10 ~ 1/10,000s |
Day / Night | Auto (ICR) / Color / B/W |
Wide Dynamic Range | Digital WDR |
S/N Ratio | >50dB |
White Balance | Auto / Manual |
Gain Control | Auto / Manual |
Backlight Compensation | Off / BLC / WDR |
Lens (not included) | |
Mount Type | C / CS |
Auto Iris | DC drive |
Video | |
Compression | H.264 |
Image Resolution | Main stream: 4K (4096×2160) |
Secondary stream: D1 | |
Frame Rate | Main stream: 4K@25fps |
Secondary stream: D1@25fps | |
Bitrate | 64kbps ~ 32Mbps |
Bitrate Control | VBR / CBR |
Dual-Stream | Supported |
Caption | Date and time / Alarm / Customized |
Privacy Masking | Up to 4 zones |
Motion Detection | Up to 4 zones |
Video Freeze | Supported |
Digital Noise Reduction | 3D noise reduction |
Image Flip | Flip / Mirror |
Audio | |
Compression | G.711a / G.711u / ADPCM / G.722 |
Bitrate | 32kbps ~ 64kbps |
Audio Function | Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute |
Network | |
Network Protocols | TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, IPv4, IPv6, HTTPS, NTP, SNTP, IEEEE802.1X |
User Interface | IPC Control (IE) |
Max. User Access | 8 Users (include 2 internal access) |
Application Programming | ONVIF (Profile S), GB/T 28181-2011, API, CGI |
Automatic Network Replenishment (ANR) | Supported |
Alarm | |
Alarm Triggers | Motion detection / Alarm input |
Alarm Events | Alarm caption / Snapshot / External output |
Interfaces | |
Ethernet | 10/100/1000M, RJ45 interface |
Audio In / Out | 1 x Line in / 1 x Line out |
Control | 1 x RS485 |
Alarm In / Out | 1 x Input / 1 x Output |
Video Out | 1 x BNC, 1.0V [p-p] / 75Ω |
Memory Slot | Micro SD card slot, supports up to 128GB |
Environmental | |
Operating Temperature | -40°C ~ 70°C / -40°F ~ 158°F |
Operating Humidity | 10% ~ 95% |
Electrical | |
Power | AC 24V ± 10% / DC 12V ± 10% / PoE (IEEE802.3af) |
Power Consumption | Max. 8W |
Mechanical | |
Weight | 0.65 kg / 1.4lb (Gross Weight) |
Dimensions | 168.9 x 75.5 x 66.4mm / 6.65’’ x 2.98’’ x 2.62’’ |
CM-W13
Wall mounted big bracket
CM-W16
Wall mounted small bracket
CH-010
Indoor small shield
CH-111
Outdoor small shield
CH-112
Outdoor small shield
CH-113
Outdoor small shield
CH-114
Outdoor small shield
DV4x12.5SR4A-SA1L
FUJINON, 12.5~50mm, 1/1.8", 5 Megapixels Manual focus
KA281236MP5-23
KANGO, 12~36mm, 2/3", 5.0 Megapixels Manual focus
DV2.2x4.1SR4A-SA2L
FUJINON, 4.1~9mm, 1/1.8", 6.0 Megapixels Manual focus
YC-669NUB
YOUNG, 3.8-12mm,1/1.8", 8.0 Megapixels Manual focus
