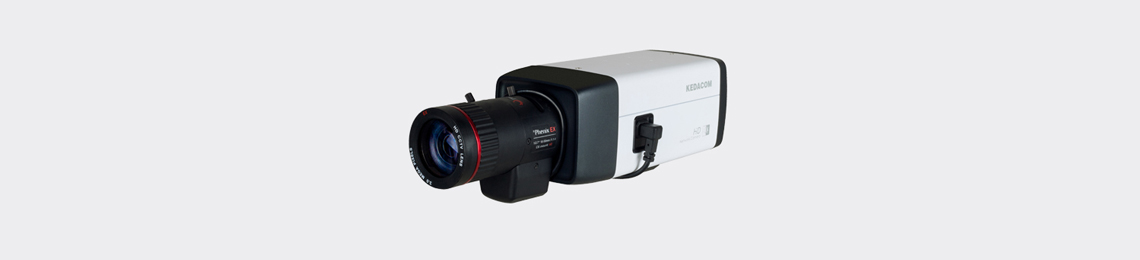

com.jeecms.content.domain.ContentAttr@57b973bb 2.0MP Starlight HD Network Box Camera -KEDACOM

Excellent Image Quality

2.0 Megapixel 1/1.9’’ Progressive Scan CMOS Sensor
High definition and smooth picture, 1080p@60fps
H.264 high profile video codec, save up to 30% bandwidth and storage
Ultra low illumination, 0.002Lux with color picture
WDR support / 3D noise reduction
Variety of Installation Application
Support Image rotation 90°,180°,270°

Abundant Functions and Features

TF card slot, support Automatic Network Replenishment (ANR)
Up to 4 multi stream
Bi-directional audio / alarm in&out / video out / RS485
PoE

	IPC123-EN
Camera
Image Sensor	1/1.9’’ Progressive Scan CMOS
Pixels	2.0 Megapixel
Min. Illumination	Color: 0.002Lux @ (F1.2, AGC ON)
Min. Illumination	B/W: 0.0002Lux @ (F1.2, AGC ON)
Shutter Speed	1/10 ~ 1/10,000S
Day / Night	Auto (ICR) / Color / B/W
Wide Dynamic Range	Digital WDR
S/N Ratio	>52dB
White Balance	Auto / Manual
Gain Control	Auto / Manual
Backlight Compensation	Off / BLC / WDR
Lens (not included)
Mount Type	C / CS
Auto Iris	DC drive
Video
Compression Format	H.264 / MJPEG
Image Resolution	Main stream: 1080p
Image Resolution	Secondary stream: D1
Frame Rate	Main stream: 1080p@60fps
Frame Rate	Secondary stream: D1@30fps
Bitrate	64kbps ~ 16Mbps
Bitrate Control	VBR / CBR
Multi Stream	Support
Caption	Date&Time / Alarm / Customized
Privacy Masking	Up to 4 zones
Motion Detection	Up to 4 zones
Video Freeze	Support
Digital Noise Reduction	3D noise reduction
Image Flip	Flip / Mirror / Rotation 90°,180°,270°
Audio
Compression Format	G.711a / G.711u / ADPCM / G.722
Bitrate
Audio Function	Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network Protocol	TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, IPv4, IPv6 (optional)
User Interface
Max. User Access	10 Users (include 2 internal access)
Application Program	Onvif, GB/T 28181-2011, API
ANR	Support
Alarm
Alarm Triggers	Motion detection / Alarm input
Alarm Events
Interfaces
Ethernet	10/100M, RJ45 interface
Audio In / Out	1 x Line in / 1 x Line out
Control
Alarm In / Out	1 x Input / 1 x Output
Video Out	1 x BNC, 1.0V [p-p] / 75Ω
Memory Slot	Micro SD card slot, support 128GB
Environmental
Operating Temperature	-30°C ~ 60°C / -22°F ~ 140°F
Operating Humidity	10% ~ 95%
Electrical
Power	12V DC ± 10% / PoE (IEEE802.3af)
Power Consumption	Max. 6W
Mechanical
Weight	0.5Kg / 1.1lb (Gross Weight)
Dimensions	147.5 x 68 x 61mm / 5.81’’ x 2.68’’ x 2.40’’
