H.265 supported
1 x 4K@30fps / 4 x 1080p@30fps video decoding capability
Up to 16 channels and 4K supported
Up to 80Mbps incoming bandwidth
Up to 64Mbps output bandwidth
0.7kg / 1.54lb
254 x 194 x 33mm / 10’’ x 7.64’’ x 1.3’’
Automatic network organizing
Built-in DHCP server
Embedded Linux
Low power consumption
Supports Packet Loss Recovery (PLR)
Long term recording
HDMI/VGA simultaneously output different content
E-Map, TV-Wall supported
Bi-directional audio, Broadcasting
NAT
Alarm management
Free CMS (V Station), supports 128 NVR simultaneously
CMS supports 6 screens simultaneously (4 x Live viewing, 1 x E-Map, 1 x TV-Wall)
NVR1829 -01004B/4P | NVR1829 -01009B/4P | NVR1829 -01016B/4P | NVR1829 -01004B | NVR1829 -01009B | NVR1829 -01016B | |
Video/Audio Input | ||||||
IP Camera Input | 4 channel | 9 channel | 16 channel | 4 channel | 9 channel | 16 channel |
Resolution | 8MP(4K), 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 960p, 720p, XGA, SVGA, D1, CIF, QCIF | |||||
Compression | H.265 / H.264 | |||||
Protocols | Onvif, RTSP, KEDACOM | |||||
Incoming Bandwidth | 20Mbps | 45Mbps | 80Mbps | 20Mbps | 45Mbps | 80Mbps |
Live Viewing | ||||||
Local Display | 1 x HDMI, 1 x VGA, simultaneously output different content | |||||
Multi Screen Display Local monitor | 1/1, 4/4, 1+5/1+5, 1+7/1+7, 9/9, 16/16 | |||||
Multi Screen Display Client | up to 4 screen simultaneously: 1 ~ 64 Multiple Layouts | |||||
E-Map | Live Viewing in E-Map (V Station) | |||||
Function | E-PTZ / Scheme (V Station) / Virtual channel | |||||
Recording | ||||||
Resolution | 8MP(4K), 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 960p, 720p, XGA, SVGA, D1, CIF, QCIF | |||||
Mode | Manual / Continuous / Schedule / Event (Pre / Post) / Long term recording | |||||
Event Trigger | Supported | |||||
Tag | Supported | |||||
Search & Playback | ||||||
Search Mode | Date and time (Calendar) / Event | |||||
Resolution | 8MP(4K), 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 960p, 720p, XGA, SVGA, D1, CIF, QCIF | |||||
Playback (Local Monitor) | 1 x 4K@30fps / 4 x 1080p@30fps | 1 x 4K@30fps / 4 x 1080p@30fps / 9 x 720p@30fps | 1 x 4K@30fps / 4 x 1080p@30fps | 1 x 4K@30fps / 4 x 1080p@30fps / 9 x 720p@30fps | ||
Playback (Client) | up to 16 x 4K@30fps | |||||
Synchronize Playback (Local Monitor) | 1 x 4K@30fps / 4 x 1080p@30fps / 9 x 720p@30fps | |||||
Synchronize Playback (Client) | up to 16 x 4K@30fps | |||||
Function | Slow forward / Fast forward / Loop / Single frame / E-PTZ | |||||
Storage | ||||||
Max. Internal HDDs | 1 x 3.5’’ HDD | |||||
Max. 8TB (up to 8TB/each) | ||||||
Audio | ||||||
Compression | G.711a / G.711u / ADPCM / G.722 / G.722.1c | |||||
Bit rate | 32kbps ~ 64kbps | |||||
Audio Function | Bi-directional audio / Dumb / Mute / Broadcasting | |||||
Alarm | ||||||
Service Alarm Triggers | Alarm input / Video lost / Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge | |||||
System Alarm Triggers | Device disconnected / No disk / Disk error / IP Address conflict / Network disconnected / Low speed / Insufficient recording space / MAC address conflict / Insufficient snapshot space | |||||
Alarm Events | Snapshot / Recording / PTZ preset / Buzzer / Email / Link to Client / Alarm caption / Live view in first window / Link to TV Wall / Link to secondary screen / Full screen viewing | |||||
System | ||||||
Operating System | Embedded Linux | |||||
User Management | Admin / User | |||||
Log Management | User login / User operation / Alarm / Backup / Update | |||||
Application Programming | V Station SDK | |||||
Network | ||||||
Network Protocols | TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, SNTP, VSIP, UPNP, SMTP, IPv4, IPv6 (optional) | |||||
Viewer Software | CMS (V Station) / Web / iOS app / Android app | |||||
Max. User Access | 16 Users | |||||
Output Bandwidth | 64Mbps | |||||
Function | NAT / Multiple network access / Packet loss recovery / Auto network organizing | |||||
Network Test | Supported | |||||

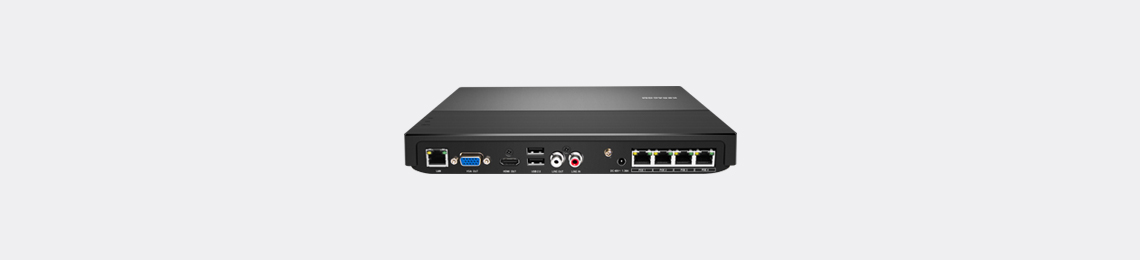

Interfaces | ||||||
Ethernet | 1 x 10/100M, RJ45 interface | 1 x Gigabite network port, RJ45 interface | 1 x 10/100M, RJ45 interface | 1 x Gigabite network port, RJ45 interface | ||
PoE | 4 x 10/100M PoE port, RJ45 interface, 15W / each port | / | ||||
Video Out | 1 x HDMI (up to 3840 x 2160@60Hz) | |||||
1 x VGA (up to 1920 x 1080@60Hz) | ||||||
Audio In / Out | 1 x RCA Line in / 1 x RCA Line out | |||||
USB | 2 x USB 2.0 | |||||
Environmental | ||||||
Operating Temperature | -10°C ~ 55°C / 14°F ~ 131°F | |||||
Operating Humidity | 10% ~ 90% | |||||
Electrical | ||||||
Power | 48V DC ± 10% | 12V DC ± 10% | ||||
Power Consumption | Max. 40W (HDD not included) | Max. 10W (HDD not included) | ||||
Mechanical | ||||||
Weight | 0.7kg / 1.54lb (HDD not included) | 0.6kg / 1.32lb (HDD not included) | ||||
Dimensions | 254 x 194 x 33mm / 10’’ x 7.64’’ x 1.3’’ |
