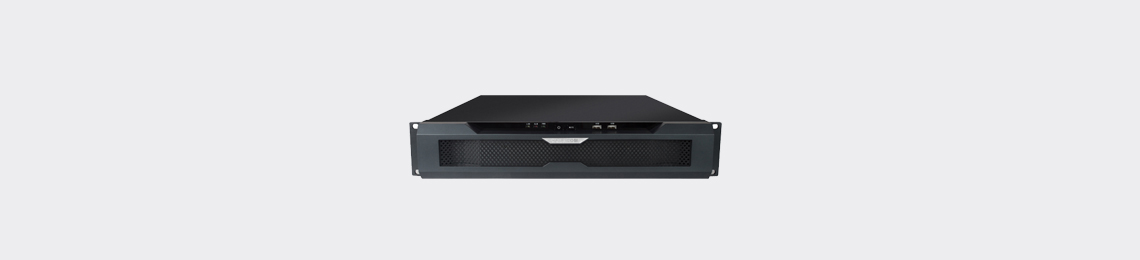

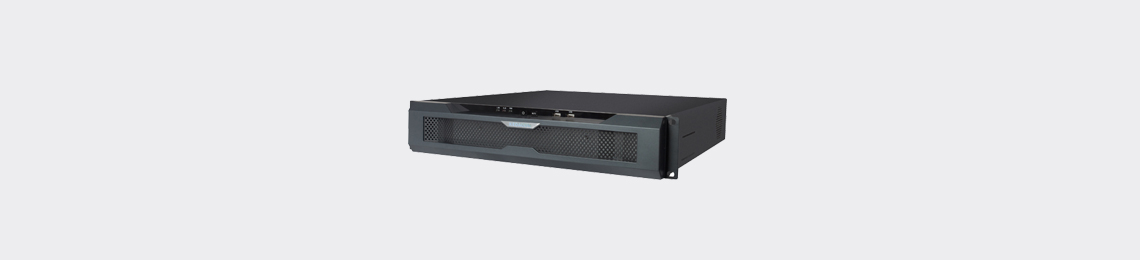

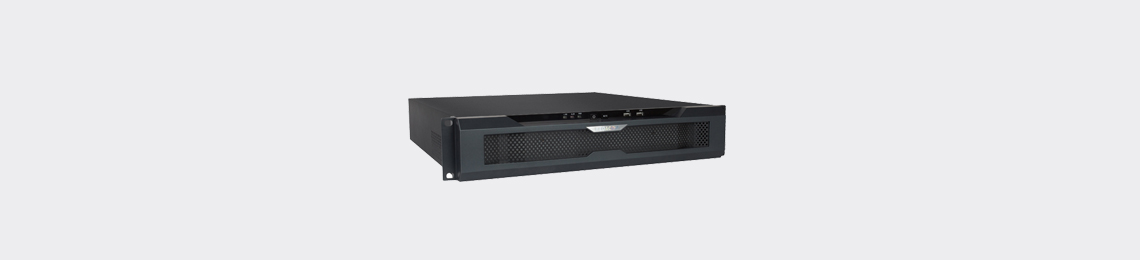

VS-G800-A | ||
Design Structure | Embedded design | |
Equipment Capacity | Video format | H.264 |
Input resolution | 1080P, 720P, D1, 4CIF, CIF, QVGA, QCIF, | |
Output resolution | 1080P, 720P, D1, 4CIF, CIF, QVGA, QCIF | |
Video bit rate | 64K~8M | |
Input audio format | ADPCM, G.711u, G.711α, G.722.1C, MP3 | |
Output audio format | G.711u, G.711α, MP3 | |
Audio bit rate | 16~64Kbps | |
Maximum support gateway | Single set supports at most 32 sets of G gateway access | |
Maximum slaves | Single set supports at most 31 slaves in the connection | |
Network protocol | HTTP, RTP/RTCP, etc. | |
Typical Application | Transcoding capacity | D1 transcoded to 4CIF ×10 channels, D1 transcoded to QVGA×25 channels 720P transcoded to 720P ×4 channels, 1080P transcoded to 1080P×2 channels |
Physical Features | Network interface | 2×RJ45,100Base-TX/1000Base-T |
Physical dimensions | 88mm (Height) ×443mm (Width) ×461mm (Depth) | |
Weight | 13Kg | |
Working Environment | Power supply | Power supply AC 100~240V,50~60Hz |
Power consumption | ≤130W | |
Working temperature | 0℃~55℃ | |
Storage humidity | 10%~90%RH |
