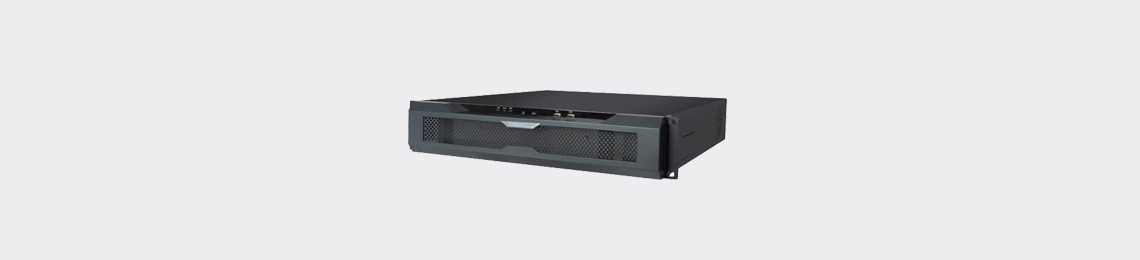

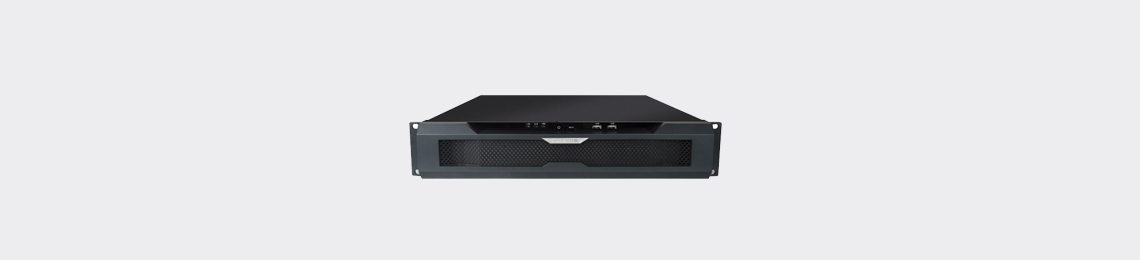

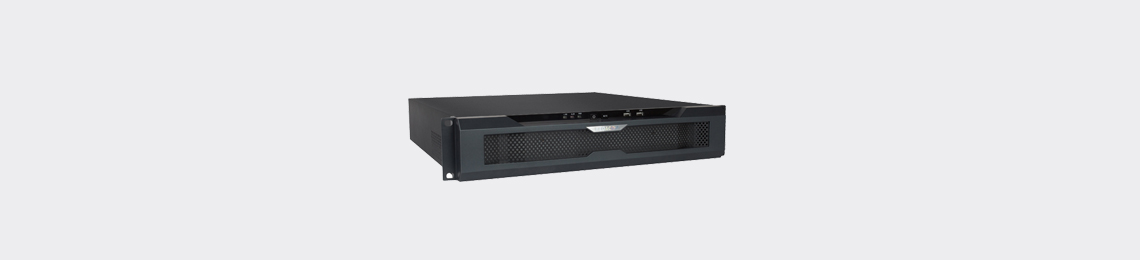

Model | VS-G200-A | |
Design Structure | Embedded design | |
Equipment Capacity | Access capacity of single equipment | Support the access of 64 matrixes and the access of 1024 monitoring points |
Typical Application | Networking mode | Matched with Kedacom encoder networking, 256 encoders can be configured in maximum |
Application function | Image browse, PTZ control, platform recording and TV wall browse | |
Physical Features | Network interface | 2×RJ45, 100Base-TX /1000Base-T |
Physical dimensions | 19 inch 2U, 88mm (Height) ×443mm (Width) ×461mm (Depth) | |
Weight | 13Kg | |
Working Environment | Power supply | AC 100~240V,50~60Hz |
Power consumption | ≤130W | |
Working temperature | 0℃~55℃ | |
Storage humidity | 10%~90%RH |
