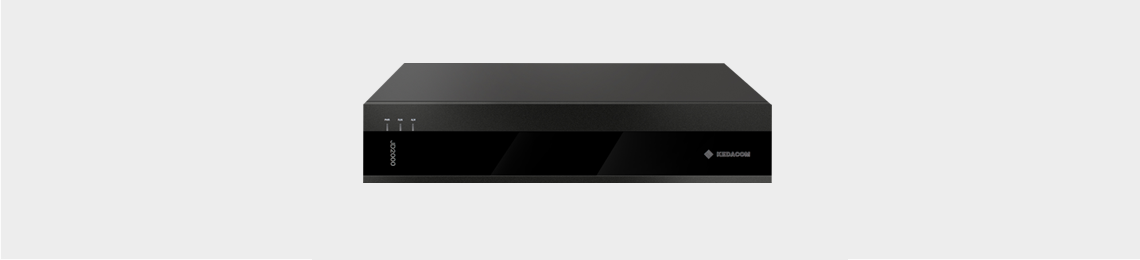

JD2000-G Unidad Multifunción de Control Multipunto

Alto Rendimiento y Alta Capacidad

  • Hasta 64 terminales HD en una conferencia por unidad

  • Hasta 16 reuniones grupales simultáneamente

  • Rendimiento máximo de la Red: 256 Mbps

  • 3 niveles de Cascada para conferencias largas

  • Soporta un apilamiento de 4 servidores de pared de TV


Excelente Adaptabilidad de Red

  • Proxy Incorporado para NAT y Firewall Transversal

  • IPLR (Recuperación inteligente de pérdida de paquetes)

  • Qos (DiffServ, Precedencia de IP)

  • Transmisión de Carga y Control de Envío sin problemas

  • Remarcado Automático si hay alguna Desconexión

  • Acceso de Segmento Multired

  • Soporta de Red Satelital


Alta Fiabilidad

  • SO incorporado

  • Hot Backup N+1, 1+1

  • Doble puerto de Red de Hot Backup

  • Doble potencia de Hot Backup





JD2000-G
System StandardsH.323, SIP
H.225, H.235, H239, BFCP, H.245, H.281
Video StandardsH.261, H.263, H.263+, H.264, H.264 High-Profile
Audio StandardsG.711, G.719, G.722, G.722.1 Annex C / Polycom Siren14TM, G.728, G.729, MP3
Network ProtocolsTCP / IP, Telnet, HTTP, FTP, SNMP, DHCP, RTP / RTCP, NTP
Conference Bitrate64 Kbps to 8 Mbps
Capacity8 / 12 / 16 / 24 / 32 / 40 / 48 / 56 / 64 Channels
Network Throughput: 256Mbps
Proxy Throughput: 128Mbps
Conference GroupContinuous Presence Conference: 1 group, 16 channels, 1080p30
Speech Mode: 16 groups
Audio Mixing: 1 larger mixer (64 channels) or 2 small mixer (32 channels each)
Dual Call Rate: 1 group
Resolution Adaptive: 1 group
Pre-adaptor before CP: 9 sites third party terminal @ 720p30
Video ResolutionVideo:
1080i/p (1920 x 1080), 720p (1280 x 720), 4CIF (704 x 576), CIF (352 x 288), QCIF (176 x 144)
Content:
UXGA (1600 x 1200), SXGA+ (1400 x 1050), WSXGA (1440 x 900), SXGA (1280 x 1024), WXGA (1280 x 800), XGA (1024 x 768), SVGA (800 x 600), VGA (640 x 480)
Continuous Presence1 / 2 / 3 / 4 / 6 / 7 / 8 / 9 / 10 / 13 / 15 / 16 CP
Two modes for video source: dynamic following and manual specifying
The speaker and chairman can be distinguished by window frame colors displayed
Video WallSupports external video wall server, up to 4 servers
OSD CaptionOSD caption can be sent as short messages to all terminals or specified terminals
OSD caption can be scrolled
Contents in a file (.txt) can be uploaded to be configured as OSD caption
AudioCustomized or auto audio mixing
Channle mute, Channel dumb
Voice active detection
Dual StreamH.239 supported
Configurable video format and resolution
The permission for initiating dual streams can be controlled
Embedded GateKeeperEndpoint registration
Address resolution
Call control
Bandwidth control
Regional management
Conference InitiatingLogging in to the JD2000-G through a web page, start a conference or schedule a conference
By remote control or web mode at the terminal side
Conference FunctionsDirector control, chairman control, voice activation, auto polling
Multiple groups of conferences can be initiated simultaneously
Terminal join-in request, chairman request, speaker request, and chime-in request
Multicast conferences
Recording and PlaybackConference recordings and recording playbacks can be controlled by using KEDACOM multimedia server
NetworkEmbedded proxy for NAT and firewall traversal
Intelligent Packet Loss Recovery (IPLR)
DiffServ, IP Precedence (Quality of service [QOS])
Stream uploading and smooth sending control
Automatic redial due to disconnection
Multi-network-segment access
Supports satellite network
Cascade ConferenceSupports the combination of simply cascaded and combined cascaded conferences
The cascading MCUs are interconnected and can control each other
3-level cascading management
Security FeaturesEmbedded OS
H.235 conference encryption
AES encryption
Conference password authentication, conference lock protection
User authentication and role-based authorization
ReliabilityDual network port hot backup
Dual power hot backup
1+1, N+1 hot backup
ManagementSNMP
Web / Telnet / FTP
Event logs
Online diagnosis and troubleshooting
Interfaces3 x Gigabit network ports, RJ45 interface (LAN 1 and LAN 2 are used as backup, LAN 3 is reserved)
2 x USB, 1 x RS232
EnvironmentalGround resistance: ≤5Ω
Operating temperature: 0°C ~ 45°C / 32℉ ~ 113℉
Operating humidity: 10% ~ 90%
Atmospheric pressure: 70 ~ 106kPa
ElectricalPower: Dual redundant power supply, 100 ~ 240V AC, 50 ~ 60Hz
Power consumption: Max. 250W
MechanicalWeight: <10kg / 22lb
Dimensions: 93 x 443 x 566mm / 3.66" x 17.44" x 22.28"
