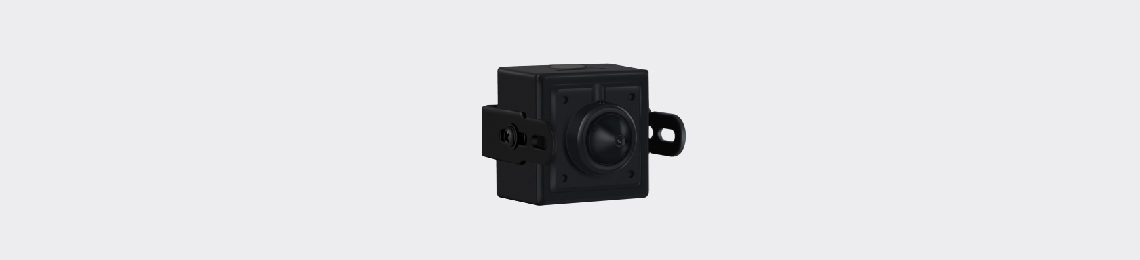

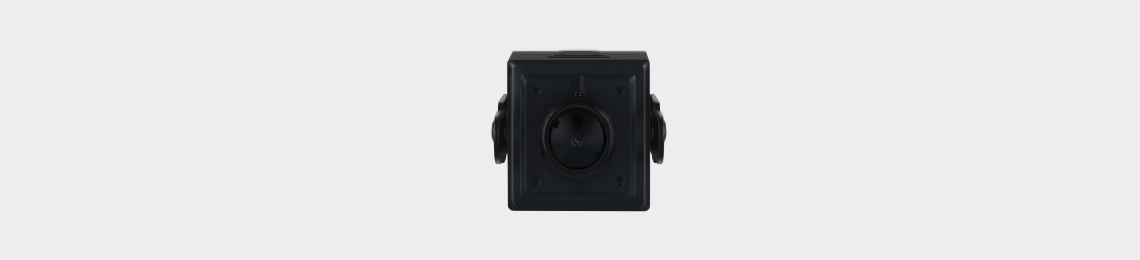

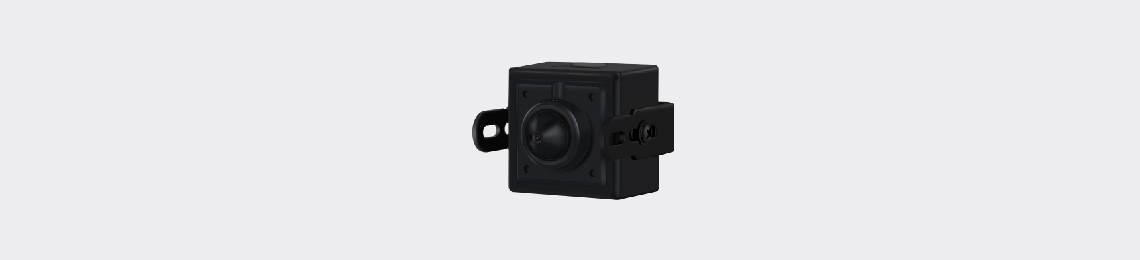

IPC2270-FN-S 2.0MP Starlight & Ultra WDR Pinhole HD Network Box Camera
Excellent Image Quality
  • 2.0 Megapixel 1/2.8’’ progressive scan CMOS sensor
  • High definition and smooth picture, 1080p@30fps
  • H.265 video codec, saves up to 50% bandwidth and storage
  • Ultra low illumination, 0.002lux with color picture
  • 120dB Ultra WDR
  • 3D noise reduction / Auto Iris / HLC
Intelligent Functions
  • Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering
A Variety of Installation Modes
  • Supports 90°, 180° image rotation
Abundant Functions and Features
  • Micro SD card slot, supports Automatic Network Replenishment (ANR)
  • Up to 3 Multi-stream
  • Bi-directional audio / alarm in and out / video out / RS485
  • 2 channel audio input simultaneously



　IPC2270-FN-S
Camera
Image Sensor 1/2.8’’ Progressive Scan CMOS
Pixels2.0 Megapixel
Min. Illumination Color: 0.002lux @ (F2.0, AGC ON)
B/W: 0.0002lux @ (F2.0, AGC ON)
Shutter Speed1 ~ 1/30,000s
Day / NightAuto (ICR) / Color / B/W
Wide Dynamic RangeUltra WDR, >=120dB
S/N Ratio>52dB
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationOff / WDR / BLC / HLC
Lens (not included)
Mount TypeM12
Focal Length3.7mm (-L0370)
Angle of View71.4° (-L0370)
Video
CompressionH.265 / H.264 / MJPEG
Image ResolutionMain stream: 1080p
Secondary stream: D1
Frame RateMain stream: 1080p@30fps
Secondary stream: D1@30fps
Bitrate64kbps ~ 16Mbps
Bitrate ControlVBR / CBR
Multi-streamSupported
CaptionDate and time / Alarm / Direction / Customized
Privacy MaskingUp to 4 zones
Motion DetectionUp to 4 zones
Video FreezeSupported
ROISupported
Digital Noise Reduction3D noise reduction
Digital DefogSupported
Image FlipFlip / Mirror / Rotation at 90°,180°
Audio
CompressionG.711a / G.711u / ADPCM / G.722 / G.722.1c / G.726
Bitrate32kbps ~ 64kbps
Audio FunctionBi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network ProtocolsTCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User InterfaceIPC Control (IE, Firefox, Chrome)
Max. User AccessMax. 10 Users (includes 2 internal)
Application ProgrammingONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR)Supported
Alarm
Alarm TriggersAlarm input / Network disconnect / Disk full / Disk error
IntelligentMotion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering
Alarm EventsAlarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm
Interfaces
Ethernet10/100M, RJ45 interface
Audio In / Out1 x 3.5mm Audio in, 1 x 3.5mm Audio out
Control1 x RS485
Alarm In / Out1 x Input
Video Out1 x BNC, 1.0V [p-p] / 75Ω
Memory SlotMicro SD card slot, supports up to 128GB
Environmental
Operating Temperature-10°C ~ 50°C / -10°F ~ 122°F
Operating Humidity 0% ~ 85%
Electrical
Power DC 12V ± 10%
Power ConsumptionMax. 3.5W
Mechanical
Weight 0.175 kg / 0.39lb (Gross Weight)
Dimensions32 x 32 x 35mm / 1.26’’ x 1.26’’  x 1.38’’
