6.0 Megapixel 1/1.8’’ Progressive Scan CMOS Sensor
High definition and smooth picture, 3072 x 2048@30fps
WDR / HLC / 3D noise reduction
Human Silhouette and Vehicle Silhouette capturing
Built-in picture comparison algorithm, best picture selection
Micro SD card slot, supports Automatic Network Replenishment (ANR)
Bi-directional audio / alarm in&out / RS485
-40°C ~ 60°C operation temperature
IP66

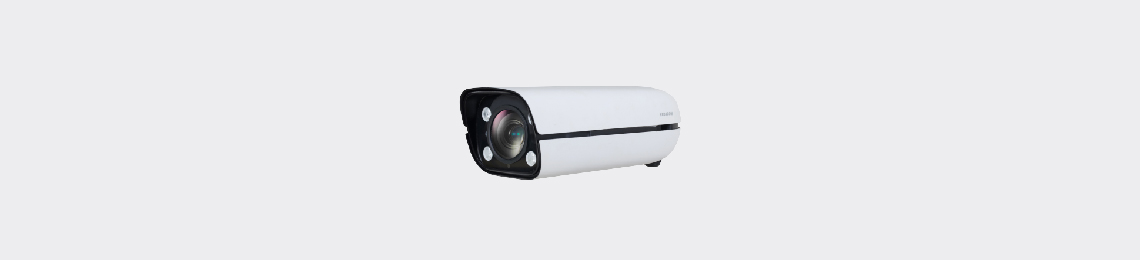

IPC2655-Gi7N | |
Camera | |
Image Sensor | 1/1.8’’ Progressive Scan CMOS |
Pixels | 6.0 Megapixel |
Min. Illumination | Color: 0.01Lux @ (F1.4, AGC ON) |
B/W: 0.001Lux @ (F1.4, AGC ON) | |
Shutter Speed | 1/7.5 ~ 1/16,000s |
Day / Night | Auto (ICR) / Color / B/W |
Wide Dynamic Range | Digital WDR |
S/N Ratio | 52dB |
White Balance | Auto / Manual |
Gain Control | Auto / Manual |
Backlight Compensation | Off / WDR / BLC / HLC |
Lens | |
Auto Iris | DC drive |
Focal Length | 15 ~ 50mm @ F1.4 motorized varifocal lens |
Focus Control | Manual / Semi-Automatic / Auto |
Night View | |
White LED Distance | 20m ~ 30m |
Video | |
Compression | H.265 / H.264 |
Image Resolution | Main stream: 3072 x 2048 |
Secondary stream: D1 | |
Frame Rate | Main stream: 3072 x 2048@30fps |
Secondary stream: D1@30fps | |
Bitrate | 32kbps ~ 16Mbps |
Bitrate Control | VBR / CBR |
Multi-stream | Supported |
Caption | Date and time / Alarm / Direction / Customized |
Privacy Masking | Up to 4 zones |
Motion Detection | Up to 4 zones |
Video Freeze | Supported |
Digital Noise Reduction | 3D noise reduction |
Image Flip | Flip / Mirror |
Audio | |
Compression | G.711a / G.711u / ADPCM / G.722 / G.722.1c |
Bitrate | 32kbps ~ 64kbps |
Audio Function | Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute |
Network | |
Network Protocols | TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional) |
User Interface | IPC Control (IE, Firefox, Chrome) |
Max. User Access | Max. 10 Users (includes 2 internal) |
Application Programming | Onvif (Profile S, Profile G), GB/T 28181-2011, API, CGI |
Automatic Network Replenishment (ANR) | Supported |
Recognitive Functions | |
Target Detection | Human silhouette, Vehicle |
Captured Picture | Human silhouette, Vehicle Built-in picture comparison algorithm, best picture selection |
Alarm | |
Alarm Triggers | Alarm input / Network disconnect / Disk full / Disk error |
Alarm Events | Alarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm |
Interfaces | |
Ethernet | 10/100M, RJ45 interface |
GPS | Build-in GPS module |
Audio In / Out | 2 x Line in / 1 x Line out |
Control | 1 x RS485 |
Alarm In / Out | 2 x Input / 1 x Output |
Memory Slot | Micro SD card slot, supports up to 128GB |
Environmental | |
Operating Temperature | -40°C ~ 60°C / -40°F ~ 140°F |
Operating Humidity | 10% ~ 95% |
Protection Level | IP66 |
Electrical | |
Power | AC 24V ± 10% |
Power Consumption | Max. 36W |
Mechanical | |
Weight | 2.8kg / 6.17lb (Gross Weight) |
Dimensions | 383 x 129.9 x 133mm / 15.05’’ x 5.11’’ x 5.24’’ |
