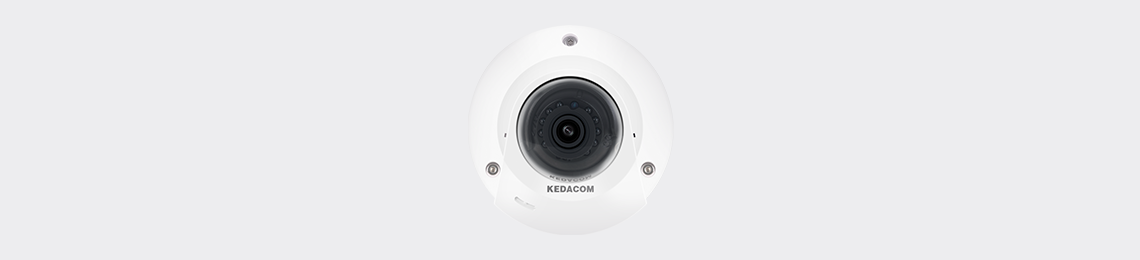

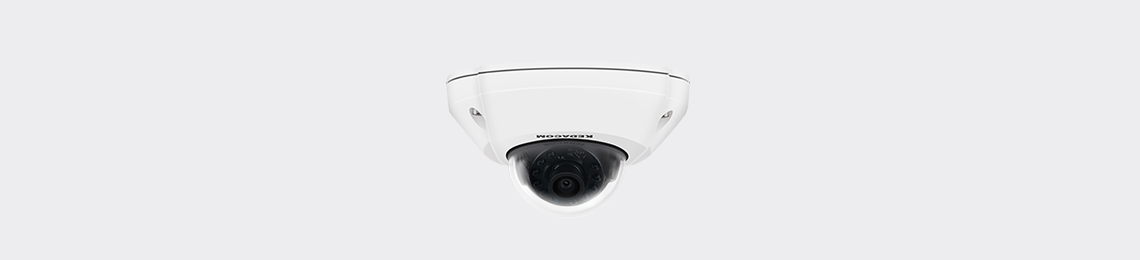

IPC2241-Gi4NW/Gi4WG-SIR15 2.0MP Human Recognitive HD Network Mini IR Semi Dome
Excellent Image Quality

  • 2.0 Megapixel 1/2.8’’ progressive scan CMOS sensor

  • High definition and smooth picture, 1080p@30fps

  • H.265 video codec, saves up to 50% bandwidth and storage

  • Ultra low illumination, 0.002lux with color picture

  • WDR / HLC / 3D noise reduction

Recognitive Functions

  • Up to 36 targets simultaneously

  • Target capturing and characters recognizing

  • Built-in picture comparison algorithm, best picture selection

Integrated High Efficiency IR

  • Industrial IR LED with long operational lifespan

  • 15m IR distance

  • Smart IR function

Abundant Functions and Features

  • Micro SD card slot, supports Automatic Network Replenishment (ANR)

  • Bi-directional audio / Built-in Mic / alarm in and out / RS485

  • Wi-Fi supported

  • 3G / 4G supported (-Gi4WG only)

  • Dual-stream (1080p + D1)

  • Anti-fog glass

  • EN50155

  • PoE

  • IK10

  • IP67


IPC2241-Gi4NW-SIR15IPC2241-Gi4WG-SIR15
Camera
Image Sensor 1/2.8’’   progressive scan CMOS
Pixels2.0   Megapixel
Min. Illumination Color:   0.002lux @ (F2.0, AGC ON)
B/W: 0.0002lux @ (F2.0, AGC ON);
Shutter Speed1 ~   1/30,000s
Day / NightAuto   (ICR) / Color / B/W
Wide Dynamic RangeUltra   WDR, >=120dB
S/N Ratio>58dB
White BalanceAuto   / Manual
Gain ControlAuto   / Manual
Backlight CompensationOff   / WDR / BLC / HLC
Lens
Mount TypeM12
Focal Length3.6mm   (-L0360) / 6mm (-L0600)
Angle of View78.6°   (-L0360) / 53.2° (-L0600)
Adjustment RangePan:   -45° ~ 45° / Tilt: 0° ~ 90° / Rotation: 0° ~ 360°
Infrared
IR Distance15m
IR IntensitySmart   IR
Video
CompressionSmart   H.265 / H.265 / H.264 / MJPEG
Image ResolutionMain   stream: 1080p
Secondary stream: D1
Frame RateMain   stream: 1080p@30fps
Secondary stream: D1@30fps
Bitrate32kbps   ~ 8Mbps
Bitrate ControlVBR   / CBR
Dual-streamSupported
CaptionDate and time / Alarm / Customized
Privacy MaskingUp to 4 zones
Motion DetectionUp to 4 zones
ROISupported
Digital Noise Reduction3D noise reduction
Image FlipFlip / Mirror
Audio
CompressionG.711a / G.711u / ADPCM / G.722
Bitrate32kbps ~ 64kbps
Audio FunctionBi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network ProtocolsTCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x,   NAT, QoS, SMTP, IPv4, IPv6 (optional)
User InterfaceIPC Control (IE, Firefox, Chrome)
Max. User AccessMax.10 Users (includes 2 internal)
WirelessWi-Fi
Wi-Fi802.11b/g/n 2.4G, Wi-Fi AP
3G / 4G Frequency Band/FDD-LTE:   B1 / B3 / B5 / B8
    TDD-LTE: B38 / B39 / B40 / B41
    WCDMA: B1 / B8
    GSM / GPRS / EDGE: 900 / 1800MHz
    TD-SCDMA: B34 / B39
    EVDO/CDMA: BC0
Application ProgrammingONVIF   (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR)Supported
Recognitive Functions
Target Detection

Person,   Face

up to 36 targets simultaneously

Captured Picture

Person,   Face, Full view

Built-in picture comparison algorithm, best picture selection

Target CharactersDirection / Speed level
Alarm
Alarm TriggersAlarm input / Network disconnect / Disk full / Disk error
IntelligentMotion detection
Alarm EventsAlarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm
Interfaces
Ethernet10/100M, RJ45 interface/
Wi-FiBuilt-in Wi-Fi module
GPSBuild-in GPS module
3G / 4G Frequency BandBuild-in 3G / 4G module
Audio In / Out1 x   Line in / 1 x Line out / 1 x Built-in Mic
Control1 x   RS485
Alarm In / Out2 x   Input / 1 x Output
Memory SlotMicro   SD card slot, supports up to 256GB
Environmental
Operating Temperature-40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity 10% ~ 95%
Protection levelIK10, IP67, EN50155
Electrical
Power 12V DC ± 25% / PoE (IEEE802.3af)
Power ConsumptionMax. 14W
Mechanical
Weight 0.5 kg / 1.1lb (Gross Weight)
DimensionsΦ103.7 × 61.7mm / Φ4.08’’ x 2.43’’
