Grabación de Audio y Video Digital
Protocolos H.323 y SIP.
Recibe Audio y Video Digital de la MCU y los Terminales evitando la pérdida de calidad de imagen debido al Codec secundario.
Conferencia en Vivo
Los usuarios pueden ver conferencias de Transmisión en Vivo sin necesidad de esperar hasta el final de la Grabación.
Proporcione la función de programación de Transmisión en Vivo
Grabación y Reproducción de Transmisión Múltiple
Soporta la Grabación y Reproducción de Múltiples transmisiones
Los usuarios pueden personalizar el Estilo de Diseño del Video
Ver conferencias a pedido
Múltiples Métodos de Reproducción.
Las conferencias se pueden Reproducir a través del Navegador Web, Reproductor de Windows Media o Terminal de conferencia de la reunión

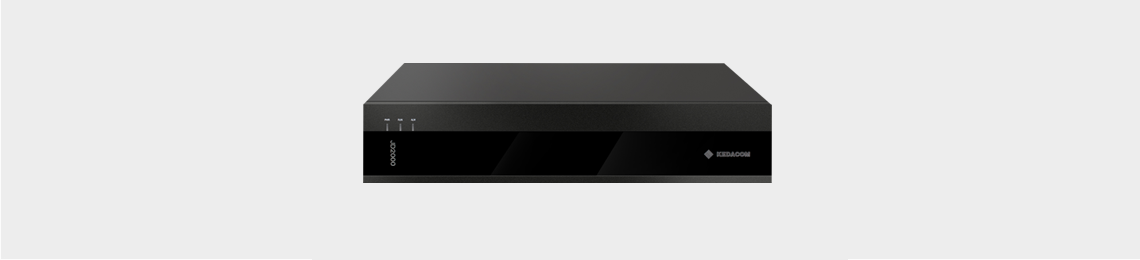

VRS2100-G | |
System Standards | H.323, SIP H.225, H.245, H.239 |
Video Standards | H.261, H.263, H.263+, H.264, H.264 High-Profile |
Audio Standards | G.711, G.719, G.722, G.722.1 Annex C / Polycom Siren14TM, G.728, G.729, MP3 |
Network Protocols | TCP/IP, FTP, RTP/RTSP, HTTP, SNMP |
Conference Bitrate | 64 Kbps to 8 Mbps |
System Capacity | 2 x 2TB HDD storage Up to 2000 hours video recording @ 2Mbps 15 groups of video recording / playback, 5 groups of live broadcast, 200 users playback / live broadcast |
Video Resolution | Video: 1080i/p (1920 x 1080), 720p (1280 x 720), 4CIF (704 x 576), CIF (352 x 288), QCIF (176 x 144) Content: UXGA (1600 x 1200), SXGA (1280 x 1024), WXGA (1280 x 800), XGA (1024 x 768), SVGA (800 x 600), VGA (640 x 480) |
Content Recording | Supports the recording of broadcast figures and terminal-applied conference sites in multipoint conferences and the recording of local figures and multiple streams |
VOD and Playback | Conferences can be played back in multiple ways, such as by a web page browser, the Windows Media Player, and a Meeting Conferencing Terminal. |
Content Management | Contents can be classified and published and are only available to authorized users |
Security Features | AES encryption User authentication and role-based authorization NAT and firewall traversal |
Management | Logs, remote upgrade / configuration, operating status monitoring SNMP |
Network Interfaces | 3 x 10/100/1000M network ports |
Environmental | Ground resistance: ≤5Ω Operating temperature: 0°C ~ 45°C / 32℉ ~ 113℉ Operating humidity: 10% ~ 90% Atmospheric pressure: 70 ~ 106kPa |
Electrical | Power: Dual redundant power supply, 100 ~ 240V AC, 50 ~ 60Hz Power consumption: Max. 250W |
Mechanical | Weight: <10kg / 22lb Dimensions: 93 x 443 x 566mm / 3.66" x 17.44" x 22.28" |
