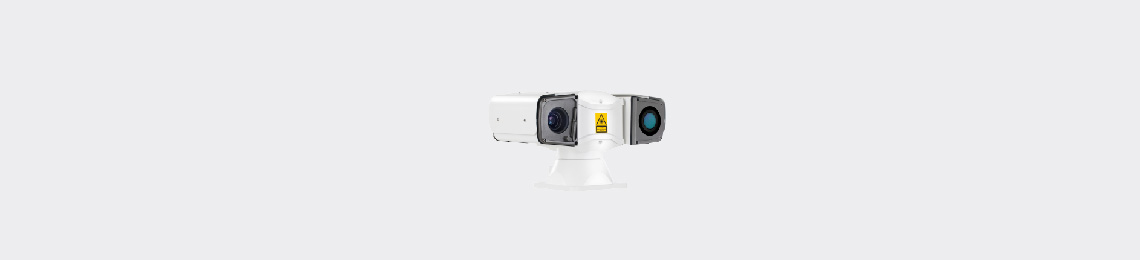

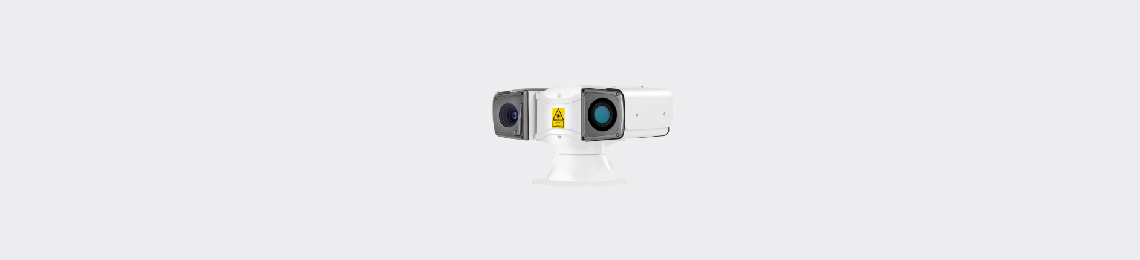

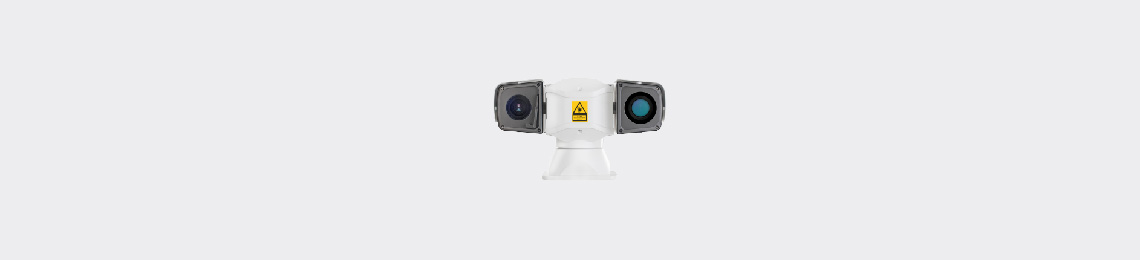

IPC523-F255-NL 2.0MP HD 55x Network Laser PTZ Camera
Excellent Image Quality
  • 2.0 Megapixel 1/2.8’’ Progressive Scan CMOS Sensor

  • High definition and smooth picture, 1080p@60fps

  • H.265 video codec, saves up to 50% bandwidth and storage

  • Ultra low illumination, 0.001lux with color picture

  • 120dB Ultra WDR

  • Laser automatically adjusts

  • HLC / 3D noise reduction

Intelligent Functions
  • Motion detection / Tampering / Guard line / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge

Long Operation Lifespan
  • Industrial components, withstands operation temperatures of -40°C ~ 70°C

  • IP66, TVS 6000V lightning protection, surge protection and voltage transient protection

Large Scale
  • 55x optical zoom

  • Laser distance up to 1500m

Abundant Functions and Features
  • SD card optional, supports Automatic Network Replenishment (ANR)

  • Up to 3 video streams

  • Bi-directional audio / alarm in and out / video out


IPC523-F255-NL
Camera
Image Sensor 1/2.8’’   Progressive Scan CMOS
Pixels2.0   Megapixel
Min. Illumination Color:   0.001Lux @ (F1.2, AGC ON)
B/W: 0.0001Lux @ (F1.2, AGC ON); 0Lux with IR
Shutter Speed1   ~ 1/30,000S
Day / NightAuto   (ICR) / Color / B/W
Wide Dynamic RangeUltra   WDR, >=120dB
S/N Ratio>55dB
White BalanceAuto   / Manual
Gain ControlAuto   / Manual
Backlight CompensationOff   / WDR / BLC / HLC
Lens
Focal Length6.6   ~ 363mm, 55x optical
Zoom SpeedApprox   4s (Optical)
Angle of View43.8°~   1° (Wide~Tele)
Min. Object Distance300   ~ 1500mm (Wide~Tele)
Max. Aperture RatioF1.6   (Wide) / F6.0(Tele)
Focus ControlAuto   / Manual / Semi-Automatic
Laser
Laser Distance1500m
Laser IntensityAutomatically   adjust according to zoom ratio
Pan   and Tilt
Pan / Tilt Range360°   Endless / - 85° ~ 85° (Auto Flip)
Pan / Tilt SpeedPan   manual speed: 0.1° ~ 120°/s; Pan preset speed: 120°/s
Tilt manual speed: 0.1° ~ 30°/s; Tilt preset   speed: 100°/s
Proportional ZoomPan   / Tilt speed can be adjusted automatically according to zoom multiples
Preset 256
Patrol8   Patrols scheme, up to 32 presets per patrol
Power-off MemoryPower-off   memory / Power-on recovery
Auto GuardPath   / Preset / Pan scan
PT LimitManual   / Scan / Pan
3D Positioning PTZ   control with mouse click and drag
WiperSupported
Video
Compression FormatH.265   / H.264 / MJPEG
Image ResolutionMain   stream: 1080p
Secondary stream: D1
Frame RateMain   stream: 1080p@60fps
Secondary stream: D1@30fps
Bitrate32kbps   ~ 16Mbps
Bitrate ControlVBR   / CBR
Multi streamSupported
CaptionDate   and time / Alarm / Direction / Customized
Privacy MaskingUp   to 4 zones
Motion DetectionUp   to 4 zones
Video FreezeSupported
ROISupported
Digital Noise Reduction3D   noise reduction
Digital DefogSupported
Image FlipFlip   / Mirror
Audio
CompressionG.711a   / G.711u / ADPCM / G.722 / G.722.1c / G.726
Bitrate32kbps   ~ 64kbps
Audio FunctionBi-directional   audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network ProtocolsTCP/IP,   UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x,   NAT, QoS, SMTP, IPv4, IPv6 (optional)
User InterfaceIPC   Control (IE, Firefox, Chrome)
Max. User AccessMax.   10 Users (include 2 internal)
Application ProgrammingONVIF   (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR)Supported
Alarm
Alarm TriggersAlarm   input / Network disconnect / Disk full / Disk error
IntelligentMotion   detection / Tampering / Guard line / Enter guard area / Exit guard area /   Object left / Object removal / Gathering / Audio surge
Alarm EventsAlarm   report / Recording / Text overlay / Snapshot / External output / Email notice   / Acoustic alarm
Interfaces
Ethernet10/100M,   RJ45 interface
Audio In / Out1   x Line in / 1 x Line out
Alarm In / Out1   x Input / 1 x Output
Video Out1   x BNC, 1.0V [p-p] / 75Ω
Memory SlotBuilt-in   Micro SD card (optional), up to 128GB
Environmental
Operating Temperature-40°C   ~ 70°C / -40°F ~ 158°F
Operating Humidity 10%   ~ 95%
Protection LevelIP66,   TVS 6000V lightning protection, surge protection and voltage transient   protection
Electrical
Power 24V   AC / 3A (Power adapter included)
Power ConsumptionMax.   70W (Laser on)
Mechanical
Weight 10kg   / 22lb (Gross Weight)
Dimensions404   × 222.6 × 243.5mm / 15.9’’ x 8.76’’ x 9.59’’
