LCD Display System

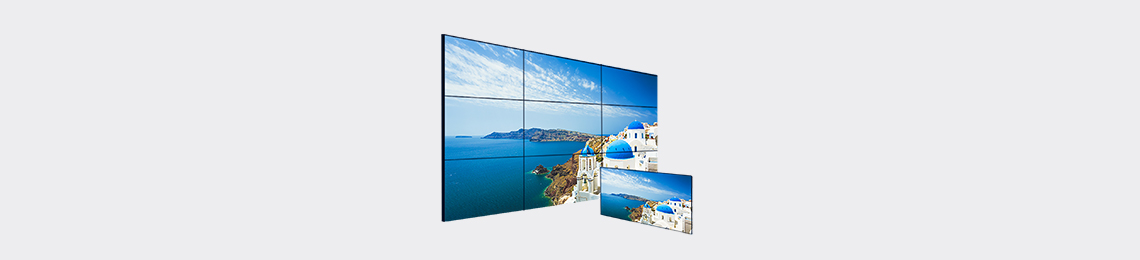

KEDACOM LCD product features ultra-narrow bezel panel with seams minimum at 1.8mm. Direct type LED backlight can accomplish high brightness and wide color gamut.

There are rich selections of video interfaces of DVI VGA, HDMI and many more. Now users can mix and match three different sizes-46", 49" and 55", two seam types-1.8mm and 3.5mm, two brightness levels-500cd/m2 and 700cd/m2,according to their own requirement. Compared to LED Display, the LCD system has a better performance price ratio.

1.8mm Series LCD Display Screen

ModelJL-L1-49H18JL-L1-49L18JL-L1-55H18JL-L1-55L18
PhysicalDiagonal49"49"55"55"
Bezel Width1.8mm1.8mm1.8mm1.8mm
Panel TypeS-IPSS-IPSS- IPSS- IPS
BacklightDirect LEDDirect LEDDirect LEDDirect LED
Display Size1073.8 × 604mm1073.8 × 604mm1209.6 × 680.4mm1209.6 × 680.4mm
Dimensions1075.72 × 605.94 × 74.1mm1075.72 × 605.94 × 74.1mm1211.5 × 682.3 × 66.3mm1211.5 × 682.3 × 66.3mm
Net Weight20kg20kg21kg21kg
Gross Weight22kg22kg23.5kg23.5kg
DisplayResolution1920 × 10801920 × 10801920 × 10801920 × 1080
Contrast Ratio4000:13000:14000:13000:1
Luminance700cd/m²500cd/m²700cd/m²500cd/m²
Aspect Ratio16:0916:0916:0916:09
Response Time8ms8ms8ms8ms
Chroma16.7M16.7M16.7M16.7M
Viewing Angle178°(H) / 178°(V)178°(H) / 178°(V)178°(H) / 178°(V)178°(H) / 178°(V)
ControlInput1 × DVI, 1 × VGA,1 × HDMI, 1 × BNC1 × DVI, 1 × VGA,1 × HDMI, 1 × BNC1 × DVI, 1 × VGA,1 × HDMI, 1 × BNC1 × DVI, 1 × VGA,1 × HDMI, 1 × BNC
output1 × BNC1 × BNC1 × BNC1 × BNC
ControlRS232, IRRS232, IRRS232, IRRS232, IR
Other InterfaceUSBUSBUSBUSB
PowerPower InputAC100~240V (50~60Hz)AC100~240V (50~60Hz)AC100~240V (50~60Hz)AC100~240V (50~60Hz)
Max. Consumption (W)260W260W230W230W
OperationLifetime50,000hrs50,000hrs50,000hrs50,000hrs
Operating Temp. (℃ )0°C - 50°C0°C - 50°C0°C - 50°C0°C - 50°C
Storage Temp. (℃ )-20°C - 60°C-20°C - 60°C-20°C - 60°C-20°C - 60°C
Operating Humidity (RH)10%-85% RH Non-Condensing10%-85% RH Non-Condensing10%-85% RH Non-Condensing10%-85% RH Non-Condensing
Storage Humidity (RH)5%-95% RH Non-Condensing5%-95% RH Non-Condensing5%-95% RH Non-Condensing5%-95% RH Non-Condensing



3.5mm Series LCD Display Screen

ModelJL-L1-46H35JL-L1-46L35JL-L1-49L35JL-L1-55H35JL-L1-55L35
PhysicalDiagonal46"46"49"55"55"
Bezel Width3.5mm3.5mm3.5mm3.5mm3.5mm
Panel TypeS-PVAS-PVAS-PVAS-PVAS-PVA
BacklightDirect LEDDirect LEDDirect LEDDirect LEDDirect LED
Display Size1018.08 × 572.67mm1018.08 × 572.67mm1073.8 × 604mm1209.6 × 680.4mm1209.6 × 680.4mm
Dimensions1021.98 × 576.57 × 70mm1021.98 × 576.57 × 70mm1075.72 × 605.94 × 74.1mm1213.5 × 684.3 × 67.5mm1213.5 × 684.3 × 67.5mm
Net Weight18kg18kg20kg21kg21kg
Gross Weight20.5kg20.5kg22kg23.5kg23.5kg
DisplayResolution1920 × 10801920 × 10801920 × 10801920 × 10801920 × 1080
Contrast Ratio4000:13000:13000:14000:13000:1
Luminance700cd/m²500cd/m²500cd/m²700cd/m²500cd/m²
Aspect Ratio16:916:916:916:916:9
Response Time8ms8ms8ms8ms8ms
Chroma16.7M16.7M16.7M16.7M16.7M
Viewing Angle178°(H) / 178°(V)178°(H) / 178°(V)178°(H) / 178°(V)178°(H) / 178°(V)178°(H) / 178°(V)
ControlInput1 × DVI, 1 × VGA,1 × HDMI, 1 × BNC1 × DVI, 1 × VGA,1 × HDMI, 1 × BNC1 × DVI, 1 × VGA,1 × HDMI, 1 × BNC1 × DVI, 1 × VGA,1 × HDMI, 1 × BNC1 × DVI, 1 × VGA,1 × HDMI, 1 × BNC
output1 × BNC1 × BNC1 × BNC1 × BNC1 × BNC
ControlRS232, IRRS232, IRRS232, IRRS232, IRRS232, IR
Other InterfaceUSBUSBUSBUSBUSB
PowerPower InputAC100~240V (50~60Hz)AC100~240V (50~60Hz)AC100~240V (50~60Hz)AC100~240V (50~60Hz)AC100~240V (50~60Hz)
Max. Consumption (W)260W260W260W260W260W
OperationLifetime50,000hrs50,000hrs50,000hrs50,000hrs50,000hrs
Operating Temp. (℃ )0°C - 50°C0°C - 50°C0°C - 50°C0°C - 50°C0°C - 50°C
Storage Temp. (℃ )-20°C - 60°C-20°C - 60°C-20°C - 60°C-20°C - 60°C-20°C - 60°C
Operating Humidity (RH)10%-85% RH Non-Condensing10%-85% RH Non-Condensing10%-85% RH Non-Condensing10%-85% RH Non-Condensing10%-85% RH Non-Condensing
Storage Humidity (RH)5%-95% RH Non-Condensing5%-95% RH Non-Condensing5%-95% RH Non-Condensing5%-95% RH Non-Condensing5%-95% RH Non-Condensing



-->
