2.0 Megapixel 1/1.8’’ Progressive Scan CMOS Sensor
High definition and smooth picture, 1080p@60fps (Optical), 800 x 600@30fps (Thermal)
H.265 video codec, saves up to 50% bandwidth and storage
Low illumination, 0.005lux with color picture
120dB Ultra WDR
Laser automatically adjusts
HLC / 3D noise reduction
High sensitivity thermal module, 800 x 600@30fps
Up to 9 palettes of adjustable color
Industrial components, withstands operation temperatures of -40°C ~ 60°C
IP66, TVS 6000V lightning protection, surge protection and voltage transient protection
More than 30,000 hours operational lifespan of the laser illuminator
60x optical zoom
Long range night vision up to 5Km
Micro SD card slot, supports Automatic Network Replenishment (ANR)
Strong PT structure has smooth movements even with a 100kg carry-on load
Optical defog
Built-in O-sensor
AR and AF housing glass
Aviation connector

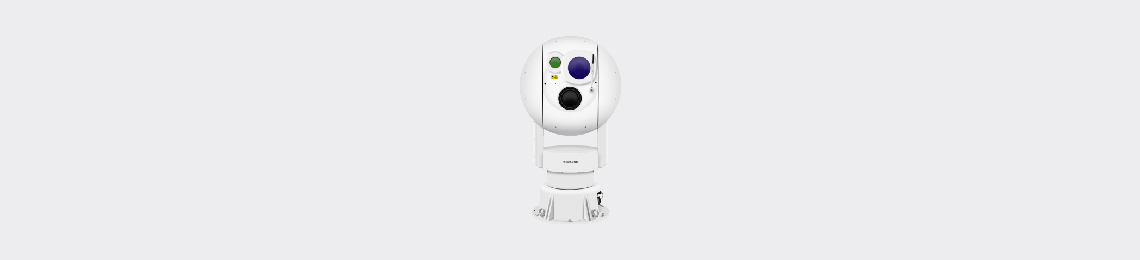

IPC528-F360-NL5-R150Z | |
Thermal Module | |
Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
Resolution | 800 x 600 |
Lens | 15 ~ 150mm, 10x thermal |
Pixel Interval | 17μm |
NETD | < 40mk(@25°C,F#=1.0) |
Response Waveband | 8μm ~ 14μm |
Color mode | up to 9 modes |
Optical Camera | |
Image Sensor | 1/1.8’’ Progressive Scan CMOS |
Pixels | 2.0 Megapixel |
Min. Illumination | Color: 0.005Lux @ (F3.0, AGC ON) |
B/W: 0.0005Lux @ (F3.0, AGC ON); 0Lux with Laser | |
Shutter Speed | 1 ~ 1/30,000S |
Day / Night | Auto (ICR) / Color / B/W |
Wide Dynamic Range | Ultra WDR, >=120dB |
S/N Ratio | >57dB |
White Balance | Auto / Manual |
Gain Control | Auto / Manual |
Backlight Compensation | Off / WDR / BLC / HLC |
Lens | |
Focal Length | 16.7 ~ 1000mm, 60x optical |
Zoom Speed | Approx 3 ~ 10s (Optical) |
Angle of View | 28.43°~ 0.29° (Wide~Tele) |
Min. Object Distance | 5000mm (Wide) |
Max. Aperture Ratio | F3.5 (Wide) / F16 (Tele) |
Focus Control | Auto / Manual / Semi-Automatic |
Auto Back Focus | Auto |
Optical Defog | Supported |
Laser | |
Wave Length | 808nm |
Power Consumption | 25W |
Laser Distance | 5Km |
Laser Intensity | Automatically adjust according to zoom ratio |
Illuminating Angle | 0.3° ~ 30° continuous change |
Vision | |
Day | 10Km |
Night | 5Km |
Pan and Tilt | |
Pan / Tilt Range | 360° Endless / - 60° ~ 60° (Auto Flip) |
Pan / Tilt Speed | Pan manual speed: 0.01° ~ 180°/s; Pan preset speed: 180°/s |
Tilt manual speed: 0.01° ~ 90°/s; Tilt preset speed: 90°/s | |
Proportional Zoom | Pan / Tilt speed can be adjusted automatically according to zoom multiples |
Preset | 256 |
Patrol | 8 Patrols scheme, up to 32 presets per patrol |
Power-off Memory | Power-off memory / Power-on recovery |
Auto Guard | Path / Preset / Pan scan |
PT Limit | Manual / Scan / Pan |
3D Positioning | PTZ control with mouse click and drag |
Electronic compass | Built-in O-sensor |
Location Sensor | GPS |
Shield | |
Housing Glass | AR & AF glass |
Video | |
Compression Format | H.265 / H.264 / MJPEG |
Image Resolution | Main stream: 1080p |
Secondary stream: D1 | |
Frame Rate | Main stream: 1080p@60fps |
Secondary stream: D1@30fps | |
Bitrate | 32kbps ~ 16Mbps |
Bitrate Control | VBR / CBR |
Multi-stream | Supported |
Caption | Date and time / Alarm / Direction / Customized |
Privacy Masking | Up to 4 zones |
Motion Detection | Up to 4 zones |
Video Freeze | Supported |
ROI | Supported |
Digital Noise Reduction | 3D noise reduction |
Digital Defog | Supported |
Image Flip | Mirror |
Audio | |
Compression | G.711a / G.711u / ADPCM / G.722 / G.722.1c / G.726 |
Bitrate | 32kbps ~ 64kbps |
Audio Function | Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute |
Network | |
Network Protocols | TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional) |
User Interface | IPC Control (IE, Firefox, Chrome) |
Max. User Access | Max. 10 Users (include 2 internal) |
Application Programming | ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI |
Automatic Network Replenishment (ANR) | Supported |
Alarm | |
Alarm Triggers | Network disconnect / Disk full / Disk error |
Intelligent | Motion detection / Tampering / Guard line / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge |
Alarm Events | Alarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm |
Interfaces | |
Ethernet | 10/100M, RJ45 interface |
Audio In / Out | 1 x Line in / 1 x Line out |
Alarm | 4 x Input / 2 x Output |
Memory Slot | Micro SD card slot, supports up to 256GB |
Environmental | |
Operating Temperature | -40°C ~ 60°C / -40°F ~ 140°F |
Operating Humidity | 10% ~ 95% |
Protection Level | IP66, TVS 6000V lightning protection, surge protection and voltage transient protection |
Electrical | |
Power | 48V DC ± 25% (Power adapter included) |
Power Consumption | Max. 180W (Laser on) |
Mechanical | |
Weight | 150kg / 330.69lb (Gross Weight) |
Dimensions | 614 × 621 × 1170mm / 24.17’’ x 24.45’’ x 46.06’’ |
