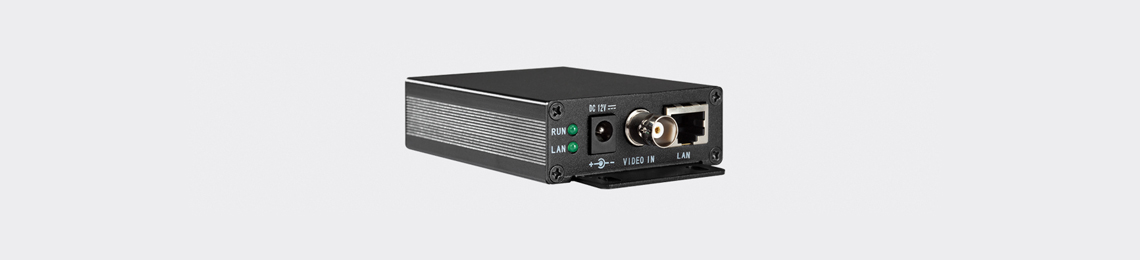

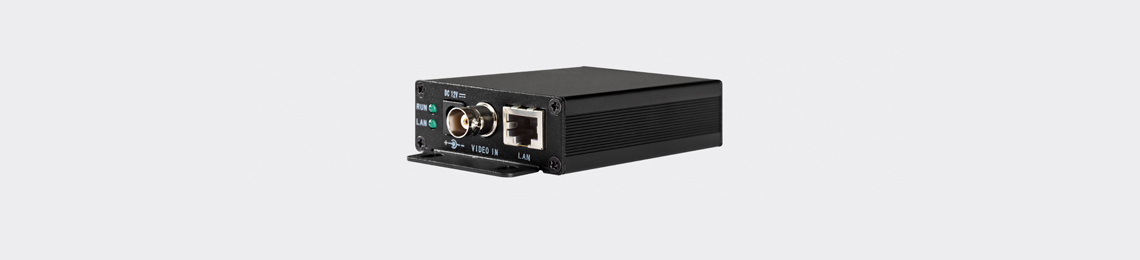

IPA102 Network Video Adapt
Mini size
  • 0.2kg / 0.54lb
  • 120 x 64 x 24mm / 4.72’’ x 2.52’’  x 0.94’’
  • Easy to install
  • Built-in Web Server, easy to manage and configure
  • Abundant functions and features
  • H.264 high profile video codec, saves up to 30% bandwidth and storage
Dual streams
  • TF card slot, supports Automatic Network Replenishment (ANR)

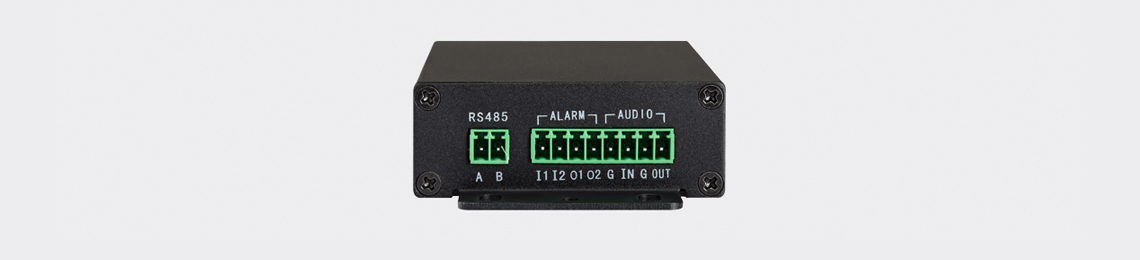

  • Bi-directional audio / alarm in and out / RS485
 IPA102
Video
CompressionH.264
Image ResolutionD1, CIF, QCIF
Frame Rate1 ~ 25fps
Bitrate64kbps ~ 4Mbps
Audio
CompressionG.711 / ADPCM
Bitrate32kbps ~ 64kbps
Network
Network ProtocolsTCP/IP, ARP, ICMP, FTP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, NTP, SNMP
User InterfaceWeb
Interfaces
Ethernet10/100M, RJ45 interface
Audio In / Out1 x Line in / 1 x Line out
Control1 x RS485
Alarm In / Out1 x Input / 1 x Output
Video In1 x BNC
Memory SlotTF card slot
Environmental
Operating Temperature-20°C ~ 60°C / -4°F ~ 140°F
Operating Humidity 10% ~ 90%
Electrical
Power 12V DC
Power ConsumptionMax. 4W
Mechanical
Weight 0.2kg / 0.54lb (Gross Weight)
Dimensions120 x 64 x 24mm / 4.72’’ x 2.52’’  x 0.94’’
