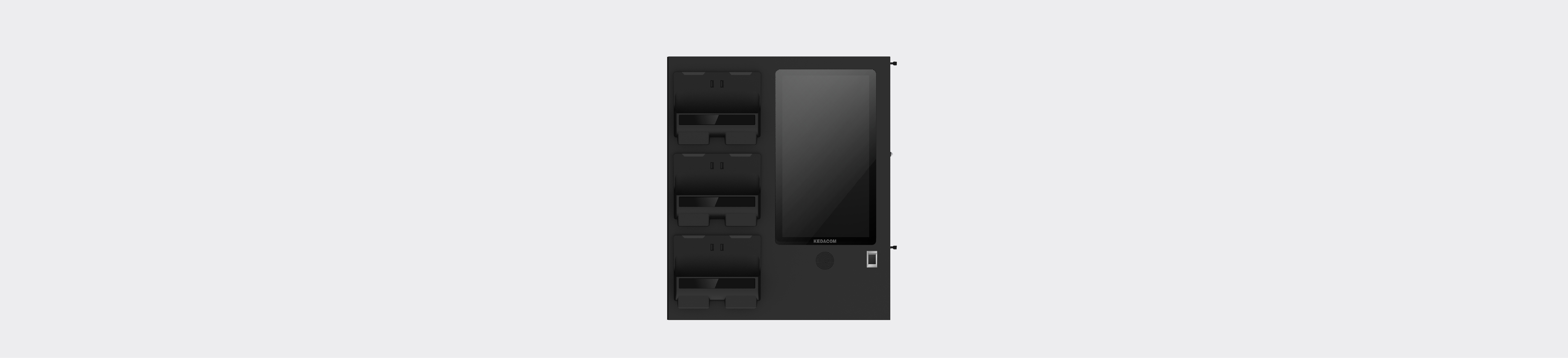

ZCS-KDCA3 Data Docking Station
High Performance
  • 13.3” color LCD with resolution of 1920*1080

  • Supports up to 24 units of body worn camera

  • Supports up to 24TB storage

Easy to Use
  • Wall-mounted and desktop design, easy to install

  • Modular design, easy to upgrade system capacity

  • Open slot design, compatible with all kinds of portable cameras

  • Plug and play, auto charging and data transmission

  • Touch screen operation

Abundant Functions and Features
  • Record searching and playback

  • Use password / fingerprint to request device

  • Priority slot for high speed data transmission

  • Built-in battery protection for sudden power-off / shut down



ZCS-KDCA3
System
Operating SystemWindows10
ProcessorIntel N3710
Application SystemData Docking Station Management Software
RAM4GB
User ManagementAdmin / User
Log ManagementUser login / User operation / Alarm / Update
Display
Size13.3”
Resolution1920*1080
Touch ScreenSupported
Search & Playback
File TypeVideo, Audio, Pic, Log
Search ModeDuration filter / Tag
Playback Resolution1 x 1080p@30fp
FunctionsQuerying, Viewing, Downloading, Removing
Slot
Default SlotZCS-KDCA3-6N: 6 Slots by default, supports 6 units of Body Worn Camera
Supports up to 3 extended modules (6 slots per module)
Applies to DSJ-U1-S, DSJ-U1-LPN and DSJ-U3-LPN

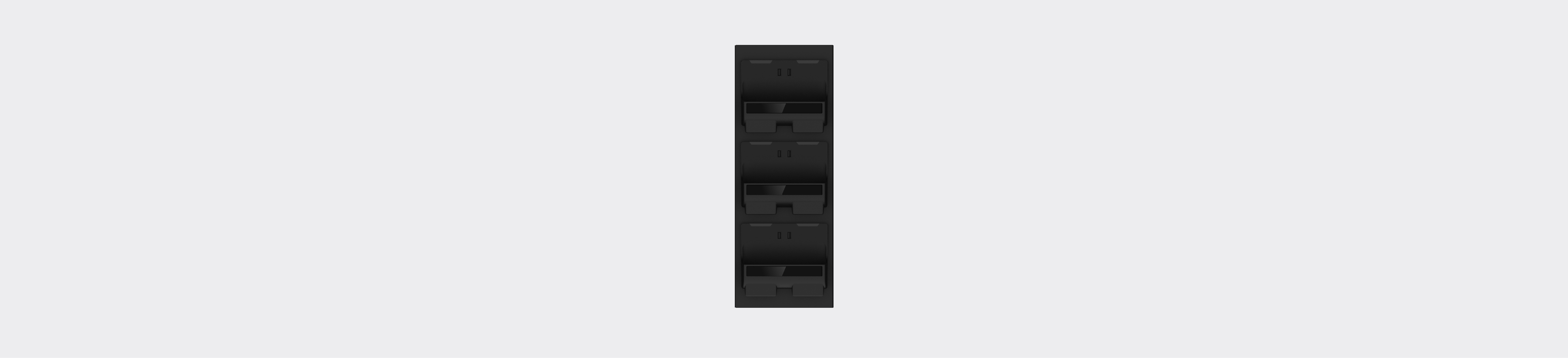

Extended ModuleZCS-KDCA1-EX6N: Extended module of ZCS-KDCA3-6N, 6 slots per module, supports 6 units of Body Worn Cameras)
Applies to DSJ-U1-S, DSJ-U1-LPN and DSJ-U3-LPN
Slot FuntionsBattery charging, Data transmission, Lock, Priority slot, Automatic upgrade, Time correction
Data Loading SpeedFull load: up to 4.6MB/s per slot
For priority slot: up to 15MB/s
Alarm
System Alarm TriggersNo disk / Insufficient recording space / Network disconnected
Alarm EventsBuzzer / Alarm text
Storage
Max. Internal HDDs3 x 3.5” hard disk drawer (1 x 4TB Hard disk included)
Max. 24TB (up to 8TB/each)
Interfaces
Ethernet1 x Gigabite network port, RJ45 interface
Audio OutBuild-in speaker
Point lock1 x Point lock (Unlock all devices at the same time bye key)
USB2 x USB 2.0
Environmental
Operating Temperature-10°C ~ 55°C / 14°F ~ 131°F
Operating Humidity 10% ~ 95%
Electrical
Power 100 ~ 240V AC, 50 ~ 60Hz
Power ConsumptionZCS-KDCA3-6N: Max. 105W
ZCS-KDCA3-6N + 1 x  ZCS-KDCA3-EX6N: Max. 135W
ZCS-KDCA3-6N + 2 x  ZCS-KDCA3-EX6N: Max. 165W
ZCS-KDCA3-6N + 3 x  ZCS-KDCA3-EX6N: Max. 195W
Emergency PowerBuilt-in battery: 2150mAh
Mechanical
Weight ZCS-KDCA3-6N: 10.3Kg / 22.7lb (HDD not included)
ZCS-KDCA3-EX6N: 3.68Kg/8.11lb
DimensionsZCS-KDCA3-6N:  430 x 510 x 113mm / 16.92’’ x 20.08’’ x 4.45’’
ZCS-KDCA3-EX6N: 190 x 510 x 113mm / 7.48’’ x 20.08’’ x 4.45’’
