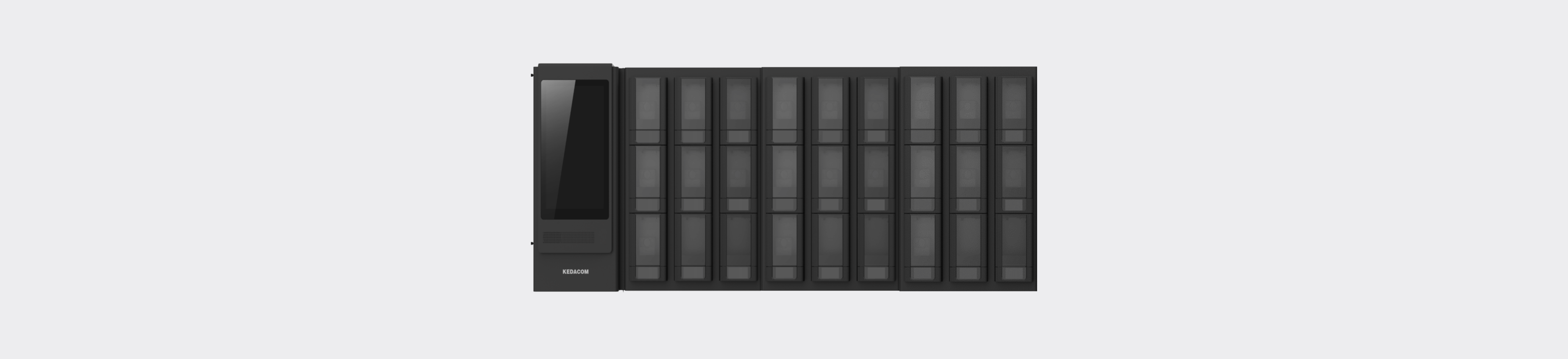

KEDACOM next-generation Data Docking Station aligns with electronic evidence management applications. Featuring a high-end configuration and a wall-mounted/docking station design, it offers aesthetic appeal and easy deployment. Compatible with various brands and models of body-worn cameras, it supports expansion up to 27 devices. Functions include account authentication, device charging, status display, file synchronization, query, playback, download, and upload.
High Performance
- 13.3" color LCD with resolution of 1920*1080
- Supports up to 27 units of body worn camera
- Supports up to 72TB storage
Easy to Use
- Wall-mounted and desktop design, easy to install
- Modular design, easy to upgrade system capacity
- Cabin slot design, compatible with all kinds of portable cameras
- Plug and play, auto charging and data transmission
- Touch screen operation
Abundant Functions and Features
- Record searching and playback
- Use password to request device
- Priority slot for high speed data transmission
System | |
Operating System | Customized Android OS |
Processor | 8 core 2.4GHz |
Application System | Data Docking Station Management Software |
RAM | 8GB |
ROM | 128GB System operating space |
User Management | Admin / User |
Log Management | User login / User operation / Alarm / Update |
Display | |
Size | 13.3" |
Resolution | 1920*1080 |
Touch Screen | Supported |
Search & Playback | |
File Type | Video, Audio, Pic, Log |
Search Mode | Duration filter / Tag |
Playback Resolution | 1 x 1080p@30fps |
Functions | Querying, Viewing, Downloading, Lock, Removing, Applying for BWC |
Slot | |
Default Slot | ZCS-KDCB1: 9 slots by default, supports 9 units of Body Worn Camera Supports up to 3 extended modules (9 slots per module) Applies to all series of BWC of our company |
Extended Module | ZCS-KDCB1-EXA: Extended module of ZCS-KDCB1, 9 slots per module, supports 9 units of Body Worn Cameras) Applies to all series of BWC of our company |
Slot Funtions | Battery charging, Data transmission, Priority slot, Automatic upgrade, Time correction |
Indicator light | Supported |
Interfaces | 1 x Type_C per Slot, Total 9 Type_C Interfaces per module |
Alarm | |
System Alarm Triggers | No disk / Insufficient recording space / Network disconnected |
A larm Events | Buzzer / Alarm text |
Storage | |
Max. Internal HDDs | 6 x 3.5"hard disk drawer (1 x 2TB Hard disk included) |
Extractive design, Supports hot swapping | |
Apply | |
Password | Supported |
Interfaces | |
Ethernet | 1 x Gigabite network port, RJ45 interface |
Audio Out | Build-in speaker |
USB | 2 x USB 3.0, 1 x USB 2.0, 1 x Type_C |
Environmental | |
Operating Temperature | -10°C ~ 55°C / 14°F ~ 131°F |
Operating Humidity | 10% ~ 95% |
Electrical | |
Power | 100 ~ 240V AC, 50 ~ 60Hz |
Power Consumption | ZCS-KDCB1: Max. 125W ZCS-KDCB1 + 1 x ZCS-KDCB1-EXA: Max. 170W ZCS-KDCB1 + 2 x ZCS-KDCB1-EXA: Max. 215W |
Mechanical | |
Weight | ZCS-KDCB1: 8.55kg / 18.85lb (HDD not included) ZCS-KDCB1-EXA: 6.79kg/14.97lb |
Dimensions | ZCS-KDCB1: 550mm x 660mm x 85mm / 21.65" x 25.98"x 3.35" ZCS-KDCB1-EXA: 550mm x 360mm x 85mm / 21.65" x 14.17" x 3.35" |
