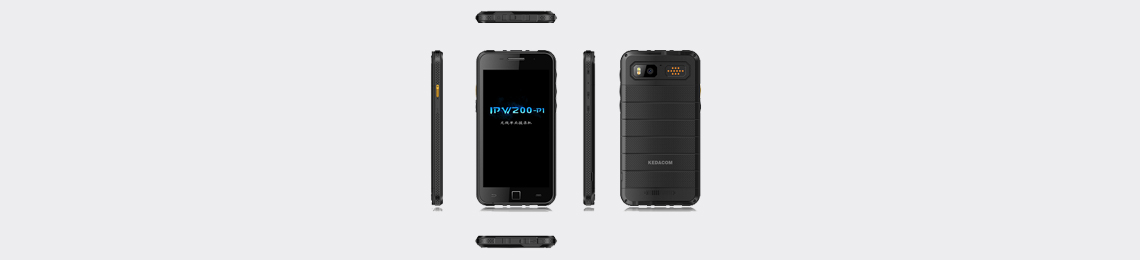

IPW200-P1BD Body Worn Surveillance Phone
High Level Protection
  • IP67, adaptive to various environments
  • 1.5 meters drop shock protection
Excellent Video Transmission
  • KWTP protocal for 3G / 4G / Wi-Fi transmission, improve the video stream continuity under unstable network
  • H.264 high profile video codec, saves up to 30% bandwidth and storage
Various Camera
  • 13MP main camera + 8MP front camera
  • Optional extendable camera types (button, badge, ear-hook)
  • Optional DV adaptor, supports HDMI video input
High Performance
Qualcomm 8 core 1.5GHz processor
  • High definition and smooth picture, 1080p@30fps
  • Supports all kinds of mobile network
  • Supports dual SIM dual standby
Abundant Functions and Features
  • Android 5.0 OS, supports third party app
  • 5.5” 1080p HD IPS screen display
  • Supports location function by GPS, GLONASS, Beidou
 IPW200-P1BD
System
Operating SystemAndroid 5.0 64bit OS
ProcessorQualcomm 8 core 1.5GHz
RAM2GB
Video
Compression FormatH.264
Image ResolutionMain stream: 1080p
Secondary stream: D1
Frame RateMain stream: 1080p@30fps
Secondary stream: D1@25fps
Bitrate64Kbps ~ 8Mbps
Dual StreamsSupported
CaptionDate&Time / Customized
Audio
Compression FormatG.711a / G.7221c / ADPCM / AMR
Coding Rate12Kbps ~ 64Kbps
Audio FunctionBi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Display
Size5.5”
Resolution1920 x 1080
TechnologyIPS screen, visible under the sun,
Touch Screen5 point touch, supports gloves mode
Camera
Main Camera13MP, Auto focus, Flashlight, Snapshot
Front Camera8MP
Network
2GGSM: B2 / B3 / B5 / B8
CDMA: BC0
3GWCDMA: B1 / B2 / B5 / B8
TD-SCDMA: B34 / B39
EVDO: BC0
4GFDD-LTE: B1 / B3 / B7
TD-LTE: B38 / B39 / B40 / B41
Wi-Fi802.11 b/g/n 2.4G
BluetoothBluetooth 4.0
NFCSupported
Location TechnologyGPS, GLONASS, Beidou
Storage
ROM16G
External MemoryMicroSD (up to 128G)
Interface
Shortcut ButtonPTT , Alarm
Audio In / OutBuilt-in Mic, Built-in Speaker, 1 x 3.5mm Stereo Earjack
SIM2 x Micro SIM slot
Extension1 x Private extension interface
USB1 x Micro USB2.0
Protection
Ingress Protection RatingIP67
Shock Protection1.5 meters drop
Battery
Capacity4000mAh
ReplaceableSupported
Built-in Camera Usage Time (Hours)4G (on)Screen on: Up to 5h
Screen off: Up to 8h
WIFI (on)Screen on: Up to 4h
Screen off: Up to 7h
4G (off) / WIFI (off)Screen on: Up to 6h
Screen off: Up to 10.5h
External Camera
 (720p)
Usage Time (Hours)
4G (on)Screen on: Up to 2.3h
Screen off: Up to 2.8h
WIFI (on)Screen on: Up to 2.1h
Screen off: Up to 2.5h
4G (off) / WIFI (off)Screen on: Up to 2.4h
Screen off: Up to 2.9h
External Camera (1080p)
Usage Time (Hours)
4G (on)Screen on: Up to 1.1h
Screen off: Up to 1.4h
WIFI (on)Screen on: Up to 1h
Screen off: Up to 1.3h
4G (off) / WIFI (off)Screen on: Up to 1.2h
Screen off: Up to 1.4h
Mechanical
Weight237.7g (including battery)
Dimensions163mm × 83.8 × 12mm
Accessories
StandardPower adapter, USB cable, Battery, Headset
OptionalAdditional battery, External battery module, Button / Badge camera, Ear-hook camera, DV adaptor
