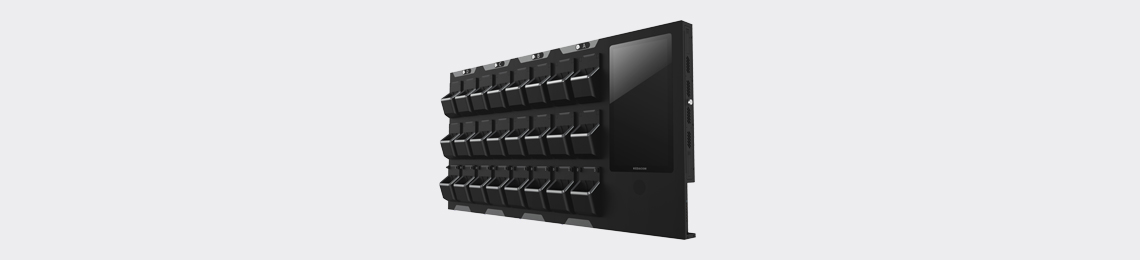

ZCS-KDCA1 Data Docking Station
High Performance
  • 13.3” color LCD with resolution of 1920 x 1080

  • Supports up to 24 units of body worn camera

  • Supports up to 24TB storage


Easy to Use
  • Wall-mount and desktop design, easy to install

  • Modular design, easy to upgrade system capacity

  • Plug and play, auto charging and data transmission

  • Touch screen operation


Abundant Functions and Features
  • Record seaching and playback

  • Auto lock after device plug in

  • Use the password to unlock device

  • Priority slot for far speed data transmission

  • Built-in battery protection for sudden power-off / shut down


 ZCS-KDCA1
System
Operating SystemWindows10
ProcessorIntel N3710
Application SystemData Docking Station Management Software
RAM4GB
User ManagementAdmin / User
Log ManagementUser login / User operation / Alarm / Update
Display
Size13.3”
Resolution1920*1080
Touch ScreenSupported
Search & Playback
File TypeVideo, Audio, Pic, Log
Search ModeDuration filter / Tag
Playback Resolution1 x 1080p@30fp
FunctionsQuerying, Viewing, Downloading, Removing
Slot
Default Slot6 Slots by default, supports 6 units of Body Worn Camera
Supports up to 3 extended modules (6 slots per module)
Extended ModuleZCS-KDCA1-EX6: Extended module of ZCS-KDCA1-6, 6 slots per module, supports 6 units of Body Worn Cameras
Slot FuntionsBattery charging, Data transmission, Lock, Priority slot, Automatic upgrade, Time correction
Data Loading SpeedFull load: up to 4.6MB/s per slot
For priority slot: up to 15MB/s
Alarm
System Alarm TriggersNo disk / Insufficient recording space / Network disconnected
Alarm EventsBuzzer / Alarm text
Storage
Max. Internal HDDs3 x 3.5” hard disk drawer (1 x 4TB Hard disk included)
Max. 24TB (up to 8TB/each)
RAIDRAID 1
Interfaces
Ethernet1 x Gigabite network port, RJ45 interface
Audio OutBuild-in speaker
Point lock1 x Point lock (Unlock all devices at the same time bye key)
USB1 x USB 2.0: for extended device
2 x Mini USB: for thirdparty device charging
2 x Micro USB: for thirdparty device charging
Environmental
Operating Temperature-10°C ~ 55°C / 14°F ~ 131°F
Operating Humidity 10% ~ 95%
Electrical
Power 100 ~ 240V AC, 50 ~ 60Hz
Power ConsumptionZCS-KDCA1-6: Max. 105W
ZCS-KDCA1-6 + 1 x  ZCS-KDCA1-EX6: Max. 135W
ZCS-KDCA1-6 + 2 x  ZCS-KDCA1-EX6: Max. 165W
ZCS-KDCA1-6 + 3 x  ZCS-KDCA1-EX6: Max. 195W
Power-Off ProtectionBuilt-in battery: 2150mAh
Mechanical
Weight ZCS-KDCA1-6: 10.3Kg / 22.7lb (HDD not included)
ZCS-KDCA1-EX6: 3.68Kg/8.11lb
DimensionsZCS-KDCA1-6:  430 x 510 x 98mm / 16.92’’ x 20.08’’ x 3.86’’
ZCS-KDCA1-EX6: 190 x 510 x 98mm / 7.48’’ x 20.08’’ x 3.86’’
