5.0 Megapixel 1/2.8’’ progressive scan CMOS sensor
High definition and smooth picture, 2880×1620@30fps
H.265 video codec, saves up to 50% bandwidth and storage
Ultra low illumination, 0.0005lux with color picture
Support WDR
3D noise reduction / Auto Iris / HLC
Deep learning(Human & Vehicle Detection) / Motion detection / Tampering / Guard line / Enter guard area / Exit guard area
Industrial IR LED with long operational lifespan
30m IR distance
Smart IR function
Supports 90°, 180°, 270° image rotation
Micro SD card slot, supports Automatic Network Replenishment (ANR)
Bi-directional audio / Built-in Mic / alarm in and out / RS485
2 channel audio input simultaneously
Dual-stream (2880×1620 + D1)
IP67
IK10 (optional)

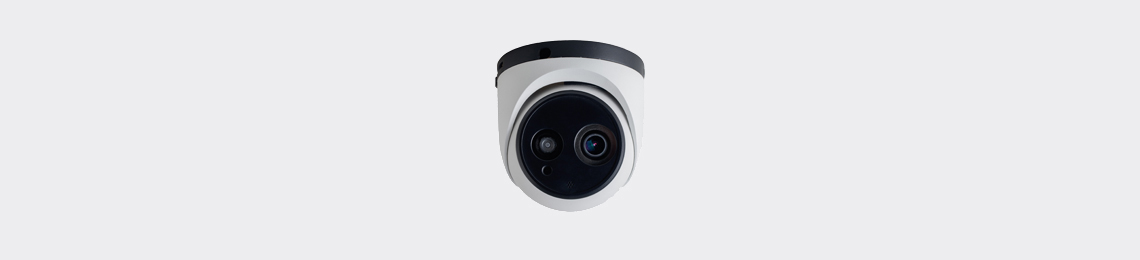

| Model | IPC2511-FN-SIR |
| Camera | |
| Image Sensor | 1/2.8’’ Progressive Scan CMOS |
| Pixels | 5.0 Megapixel |
| Min. Illumination | Color: 0.0005lux @ (F1.6, AGC ON) |
| B/W: 0.0001lux @ (F1.6, AGC ON) | |
| Shutter Speed | 1 ~ 1/30,000s |
| Day / Night | Auto (ICR) / Color / B/W |
| Wide Dynamic Range | Ultra WDR, >=120db |
| S/N Ratio | >55dB |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Backlight Compensation | Off / WDR / BLC / HLC |
| Lens | |
| Mount Type | M12 |
| Focal Length | 2.8mm (-L0280) / 3.6mm (-L0360) / 6mm (-L0600) |
| Angle of View | 111.4° (-L0280) / 91.5° (-L0360) / 51.8° (-L0600) |
| Adjustment Range | Pan: 0° ~ 360° / Tilt: 0° ~ 85° / Rotation: 0° ~ 360° |
| Infrared | |
| IR Distance | 30m |
| IR Intensity | Smart IR |
| Video | |
| Compression | H.265 / H.264 / MJPEG |
| Image Resolution | Main stream: 2880×1620 |
| Secondary stream: D1 | |
| Frame Rate | Main stream: 2880×1620@25fps |
| Secondary stream: D1@25fps | |
| Bitrate | 32Kbps ~ 16Mbps |
| Bitrate Control | VBR / CBR |
| Dual-Stream | Supported |
| Caption | Date and time / Alarm / Customized |
| Privacy Masking | Up to 4 zones |
| Motion Detection | Up to 4 zones |
| ROI | Supported |
| Digital Noise Reduction | 3D noise reduction |
| Digital Defog | Supported |
| Image Flip | Flip / Mirror / Rotation 90°, 180°, 270° |
| Audio | |
| Compression | G.711a / G.711u / ADPCM / G.722 / G.726 / OPUS |
| Bitrate | 32kbps ~ 64kbps |
| Audio Function | Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute |
| Network | |
| Network Protocols | TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 |
| User Interface | Chrome |
| Max. User Access | Max. 20 Users (includes 2 internal) |
| Application Programming | ONVIF (Profile S, Profile G, Profile T), GB/T 28181-2011, API, CGI |
| Automatic Network Replenishment (ANR) | Supported |
| Alarm | |
| Alarm Triggers | Alarm input / Network disconnect / Disk full / Disk error |
| Intelligent | Deep learning: Human & Vehicle Detection Basic intelligence: Motion detection / Tampering / Guard line / Enter guard area / Exit guard area |
| Alarm Events | Alarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm |
| Interfaces | |
| Ethernet | 10/100M, RJ45 interface |
| Audio In / Out | 2 x Line in / 1 x Line out / 1 x Built-in Mic |
| Control | 1 x RS485 |
| Alarm In / Out | 1 x Input / 1 x Output |
| Memory Slot | Micro SD card slot, supports up to 256GB |
| Environmental | |
| Operating Temperature | -40°C ~ 70°C / -40°F ~ 158°F |
| Operating Humidity | 10% ~ 95% |
| Protection level | IK10 (optional), IP67 |
| Electrical | |
| Power | 12V DC ± 10% / PoE (IEEE802.3af) |
| Power Consumption | Max. 11W |
| Mechanical | |
| Weight | 1 kg / 2.2lb (Gross Weight) |
| Dimensions | Φ93.6 × 93.3mm / Φ3.69’’ x 3.68’’ |
