2.0 Megapixel 1/2.7'' progressive scan CMOS sensor
High definition and smooth picture, 1080p@30fps
H.265 video codec, saves up to 50% bandwidth and storage
Ultra low illumination, 0.002lux with color picture
120dB Ultra WDR
3D noise reduction / Auto Iris / HLC
Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
Support Deep Learning Algorithm
Above IK10 @ 50J collision energy
Industrial IR LED with long operational lifespan
20 ~ 40m IR distance
Smart IR function
Supports 90°, 180°, 270° image rotation
Motorized varifocal lens
Micro SD card slot, supports Automatic Network Replenishment (ANR)
Bi-directional audio / alarm in and out / video out / RS485
2 channel audio input simultaneously
PoE
IP67

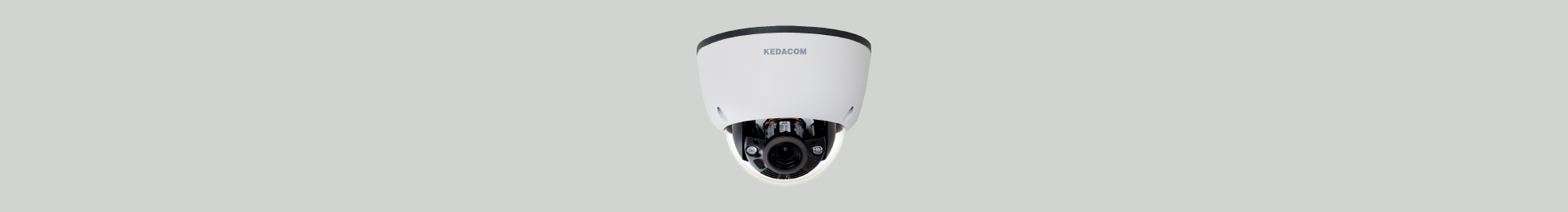

| IPC2233-FN-SIR40-Z2712 | |
| Camera | |
| Image Sensor | 1/2.7" progressive scan CMOS |
| Pixels | 2.0 Megapixel |
| Min. Illumination | Color: 0.0005lux@ (AGC ON) |
| B/W: 0.0001lux@ (AGC ON) | |
| Shutter Speed | 1 ~ 1/30,000s |
| Day / Night | Auto (ICR) / Color / B/W |
| Wide Dynamic Range | Ultra WDR, >=120dB |
| S/N Ratio | >52dB |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Backlight Compensation | Off / BLC / WDR / HLC |
| Lens | |
| Mount Type | Φ14 |
| Auto Iris | DC drive |
| Focal Length | 2.7~12mm @ F1.85 ~ F3.0 motorized varifocal lens |
| Focus Control | Manual / Semi-Automatic / Auto |
| Angle of View | 106° ~ 33° |
| Adjustment Range | Pan: -120° ~ +120° / Tilt: 0° ~ 65° / Rotation: -90° ~ +90° |
| Infrared | |
| IR Distance | 20 ~ 40m |
| IR Intensity | Smart IR |
| Video | |
| Compression | H.265 / H.264 / MJPEG |
| Image Resolution | Main stream: 1080p |
| Secondary stream: D1 | |
| Frame Rate | Main stream: 1080p@30fps |
| Secondary stream: D1@30fps | |
| Bitrate | 32kbps ~ 16Mbps |
| Bitrate Control | VBR / CBR |
| Multi-stream | Supported |
| Caption | Date and time / Alarm / Customized |
| Privacy Masking | Up to 4 zones |
| Motion Detection | Up to 4 zones |
| ROI | Supported |
| Digital Noise Reduction | 3D noise reduction |
| Digital Defog | Supported |
| Image Flip | Flip / Mirror / Rotation at 90°,180°,270° |
| Audio | |
| Compression | G.711a / G.711u / ADPCM / G.722 |
| Bitrate | 32kbps ~ 64kbps |
| Audio Function | Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute |
| Network | |
| Network Protocols | TCP/IP, UDP, HTTP, DHCP, DDNS, RTP/RTCP, RTSP, PPPoE, FTP, UPnP, NAT, SMTP, RTMP, IPv4, IPv6 |
| User Interface | Chrome |
| Max. User Access | Max. 20 Users (includes 2 internal) |
| Application Programming | ONVIF (Profile S, Profile G, Profile T), GB/T 28181-2011, API, CGI |
| Automatic Network Replenishment (ANR) | Supported |
| Alarm | |
| Alarm Triggers | Alarm input / Network disconnect / Disk full / Disk error |
| Basic Intelligent | Tampering / Defocus / Scene change / Object left / Object removal / Audio surge |
| Deep Learning Intelligent | Human & Vehicle Detection: Motion detection / Guard line / Enter guard area / Exit guard area / People Gathering |
| Alarm Events | Alarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm |
| Interfaces | |
| Ethernet | 10/100M, RJ45 interface |
| Audio In / Out | 2 x Line in / 1 x Line out |
| Control | 1 x RS485 |
| Alarm In / Out | 1 x Input / 1 x Output |
| Memory Slot | Micro SD card slot, supports up to 128GB |
| Environmental | |
| Operating Temperature | -40°C ~ 70°C / -40°F ~ 158°F |
| Operating Humidity | 10% ~ 95% |
| Protection Level | IK10+ @50J, IP67 |
| Electrical | |
| Power | DC12V ± 10% / PoE (IEEE802.3af) |
| Power Consumption | Max. 11W |
| Mechanical | |
| Weight | 0.71 kg / 1.57lb (Gross Weight) |
| Dimensions | Φ122× 96.13mm / Φ4.8’’ x 3.78’’ |
