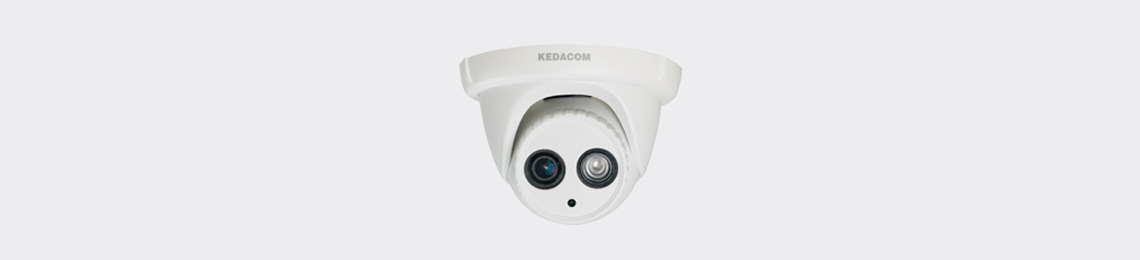

LC2110-AN 1.3MP HD Network IR Semi Dome
Excellent Image Quality
  • 1.3 Megapixel 1/3’’ progressive scan CMOS sensor
  • High definition and smooth picture, 960p@30fps
  • H.264 high profile video codec, saves up to 30% bandwidth and storage
  • Low illumination, 0.01lux with color picture
  • WDR support / 3D noise reduction
Integrated High Efficiency IR
  • Industrial IR LED with long operational lifespan
  • 30m IR distance
  • Smart IR function
A Variety of Installation Modes
  • Supports 90°, 180°, 270° image rotation
Abundant Functions and Features
  • TF card slot, supports Automatic Network Replenishment (ANR)
  • Up to 3 Multi-Stream
  • PoE
  • IP66
 LC2110-AN(-IR1, -IR2, -IR3, -IR4, -IR5)
Camera
Image Sensor 1/3’’ Progressive Scan CMOS
Pixels1.3 Megapixel
Min. Illumination Color: 0.01lux @ (F1.6, AGC ON)
B/W: 0lux  with IR
Shutter Speed1/10 ~ 1/10,000s
Day / NightAuto (ICR) / Color / B/W
Wide Dynamic RangeDigital WDR
S/N Ratio>50dB
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationOff / BLC / WDR
Lens
Mount TypeM12
Focal Length2.8mm (-IR1) / 3.6mm (-IR2) / 6mm (-IR3) / 8mm (-IR4) / 12mm (-IR5)
Angle of View96.3° (-IR1) / 74.5° (-IR2) / 46.3° (-IR3) / 35.5° (-IR4) / 23° (-IR5)
Adjustment RangePan: 0° ~ 360° / Tilt: 0° ~ 85° / Rotation: 0° ~ 360°
Infrared
IR LED1pcs IR LED
IR Distance30m
IR IntensitySmart IR
Video
CompressionH.264 / MJPEG
Image ResolutionMain stream: 960p
Secondary stream: D1
Frame RateMain stream: 960p@30fps
Secondary stream: D1@30fps
Bitrate32kbps ~ 16Mbps
Bitrate ControlVBR / CBR
Multi-StreamSupported
CaptionDate and time / Alarm / Customized
Privacy MaskingUp to 4 zones
Motion DetectionUp to 4 zones
Video FreezeSupported
Digital Noise Reduction3D noise reduction
Image FlipFlip / Mirror / Rotation at 90°,180°,270°
Network
Network ProtocolsTCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, IPv4, IPv6 (optional)
User InterfaceIPC Control (IE, Firefox, Chrome)
Max. User AccessMax. 10 Users (includes 2 internal)
Application ProgrammingONVIF (Profile S), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR)Supported
Alarm
Alarm TriggersMotion detection / Shield area / Network disconnect / Disk full / Disk Error
Alarm EventsAlarm report / Recording / Alarm caption / Snapshot
Interfaces
Ethernet10/100M, RJ45 interface
Memory SlotTF card slot, supports up to 128GB
Environmental
Operating Temperature-30°C ~ 60°C / -22°F ~ 140°F
Operating Humidity 10% ~ 95%
Protection LevelIP66
Electrical
Power 12V DC ± 10% / PoE (IEEE802.3af)
Power ConsumptionMax. 10W
Mechanical
Weight 1 kg / 2.2lb (Gross Weight)
DimensionsΦ131.4 × 95.6mm / Φ5.17’’ x 3.76’’
