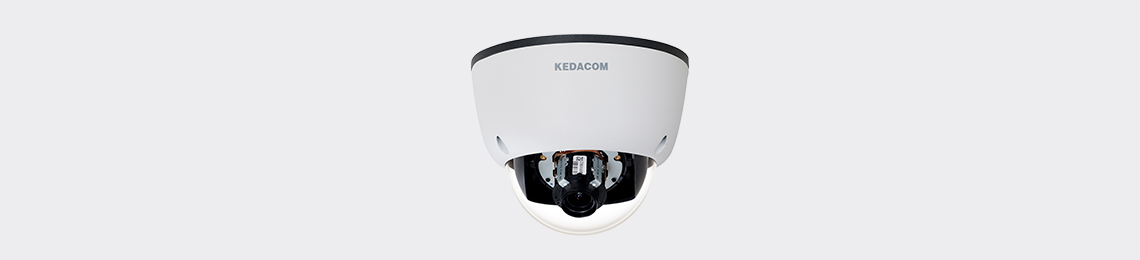

IPC2231-HN-S 2.0MP HD Network Vandal-Proof Semi Dome
Excellent Image Quality
  • 2.0 Megapixel 1/3'' progressive scan CMOS sensor
  • High definition and smooth picture, 1080p@30fps
  • H.265 video codec, saves up to 50% bandwidth and storage
  • Low illumination, 0.03lux with color picture
  • WDR support / 3D noise reduction / Auto Iris / HLC
Intelligent Functions
  • Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
Vandal-Proof
  • Above IK10 @ 50J collision energy
A Variety of Installation Modes
  • Supports 90°, 180°, 270° image rotation
  • Varifocal AF lens (-Z3009 only)
Abundant Functions and Features
  • TF card slot, supports Automatic Network Replenishment (ANR)
  • Bi-directional audio / alarm in and out / video out / RS485
  • 2 channel audio input simultaneously
  • Up to 3 Multi-Stream
  • PoE / Power output
  • IP67
 IPC2231-HN-S
Camera
Image Sensor 1/3’’ Progressive Scan CMOS
Pixels2.0 Megapixel
Min. Illumination Color: 0.03lux @ (F1.4, AGC ON)
B/W: 0.003lux @ (F1.4, AGC ON)
Shutter Speed1 ~ 1/30,000s
Day / NightAuto (ICR) / Color / B/W
Wide Dynamic RangeDigital WDR
S/N Ratio>52dB
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationOff / BLC / WDR / HLC
Lens
Mount Type-Z3009: Φ14
-L0200 / -L0220: M12
Auto Iris-Z3009: DC drive
-L0200 / -L0220: Fixed
Focal Length-Z3009: 2.8~12mm @ F1.4 motorized varifocal lens
-L0200: 2mm
-L0220: 2.2mm
Focus Control-Z3009: Manual / Semi-Automatic / Auto
-L0200 / -L0220: Fixed
Angle of View-L0200: 151°
-L0220: 126°
-Z3009: 108° ~ 35°
Adjustment RangePan: 0° ~ 355° / Tilt: 0° ~ 75° / Rotation: 0° ~ 355°
Video
CompressionH.265 / H.264 / MJPEG
Image ResolutionMain stream: 1080p
Secondary stream: D1
Frame RateMain stream: 1080p@30fps
Secondary stream: D1@30fps
Bitrate32kbps ~ 16Mbps
Bitrate ControlVBR / CBR
Multi-StreamSupported
CaptionDate and time / Alarm / Customized
Privacy MaskingUp to 4 zones
Motion DetectionUp to 4 zones
Video FreezeSupported
ROISupported
Digital Noise Reduction3D noise reduction
Digital DefogSupported
Image FlipFlip / Mirror / Rotation at 90°,180°,270°
Audio
CompressionG.711a / G.711u / ADPCM / G.722 / G.722.1c / G.726
Bitrate32kbps ~ 64kbps
Audio FunctionBi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network ProtocolsTCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User InterfaceIPC Control (IE, Firefox, Chrome)
Max. User AccessMax. 10 Users (includes 2 internal)
Application ProgrammingONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR)Supported
Alarm
Alarm TriggersAlarm input / Network disconnect / Disk full / Disk error
IntelligentMotion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
Alarm EventsAlarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm
Interfaces
Ethernet10/100M, RJ45 interface
Audio In / Out2 x Line in / 1 x Line out
Control1 x RS485
Alarm In / Out1 x Input / 1 x Output
Video Out1 x BNC, 1.0V [p-p] / 75Ω
Memory SlotTF card slot, supports up to 128GB
Power Output1 x DC12V / 0.1A Output
Environmental
Operating Temperature-40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity 10% ~ 95%
Protection LevelIK10+ @50J, IP67
Electrical
Power AC24V±10% / DC12V ± 10% / PoE (IEEE802.3af)
Power ConsumptionMax. 11W
Mechanical
Weight 1 kg / 2.2lb (Gross Weight)
DimensionsΦ155.8 × 125.9mm / Φ6.14’’ x 4.96’’



Recommended Bracket

DM-C24

Semi dome in-ceiling mount bracket

DM-C32

Semi dome celling mount bracket

DM-W33

Semi dome wall mount bracket
