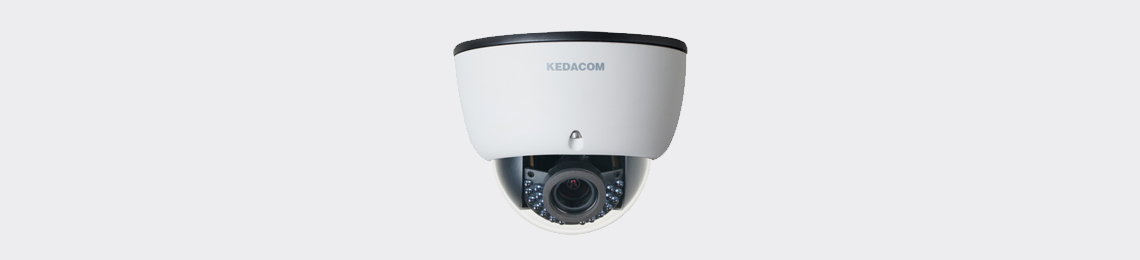

IPC2232-AN-DIR 2.0MP HD Network Vandal-Proof IR Semi Dome
Excellent Image Quality
  • 2.0 Megapixel 1/2.8'' progressive scan CMOS sensor
  • High definition and smooth picture, 1080p@30fps
  • H.264 high profile video codec, saves up to 30% bandwidth and storage
  • Low illumination, 0.05lux with color picture
  • WDR support / 3D noise reduction / Auto Iris (-DIR1 only)
Vandal-Proof
  • Above IK10 @ 50J collision energy
Integrated High Efficiency IR
  • Industrial IR LED with long operational lifespan
  • 20 ~ 40m IR distance
  • Smart IR function
A Variety of Installation Modes
  • Supports 90°, 180°, 270° image rotation
  • Varifocal lens (-DIR1 only)
Abundant Functions and Features
  • TF card slot, supports Automatic Network Replenishment (ANR)
  • Dual-streaming (1080p + D1)
  • Bi-directional audio / alarm in and out / RS485
  • IP67 (-DIR3 only)
 IPC2232-AN(-DIR1, -DIR3)
Camera
Image Sensor 1/2.8’’ Progressive Scan CMOS
Pixels2.0 Megapixel
Min. Illumination Color: 0.05lux @ (F1.6, AGC ON)
B/W: 0lux  with IR
Shutter Speed1/10 ~ 1/10,000s
Day / NightAuto (ICR) / Color / B/W
Wide Dynamic RangeDigital WDR
S/N Ratio>50dB
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationOff / BLC / WDR
Lens
Mount Type-DIR1: Φ14
-DIR3: M12
Iris-DIR1: Auto Iris (DC drive)
-DIR3: Fixed Iris
Focal Length-DIR1: 2.8 ~ 12mm @ F1.6 manual varifocal lens
-DIR3: 2.8mm
Angle of View-DIR1: 87.6.6° ~ 31.3°
-DIR3: 101°
Adjustment RangePan: 0° ~ 355° / Tilt: 0° ~ 75° / Rotation: 0° ~ 355°
Infrared
IR LED26pcs IR LED
IR Distance20 ~ 40m
IR IntensitySmart IR
Video
CompressionH.264 / MJPEG
Image ResolutionMain stream: 1080p
Secondary stream: D1
Frame RateMain stream: 1080p@30fps
Secondary stream: D1@30fps
Bitrate64kbps ~ 8Mbps
Bitrate ControlVBR / CBR
Dual-StreamSupported
CaptionDate and time / Alarm / Customized
Privacy MaskingUp to 4 zones
Motion DetectionUp to 4 zones
Video FreezeSupported
Digital Noise Reduction3D noise reduction
Image FlipFlip / Mirror / Rotation at 90°,180°,270°
Audio
CompressionG.711a / G.711u / ADPCM / G.722
Bitrate32kbps ~ 64kbps
Audio FunctionBi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network ProtocolsTCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, IPv4, IPv6 (optional), NTP, SNMP
User InterfaceIPC Control (IE)
Max. User AccessMax. 10 Users (includes 2 internal)
Application ProgrammingONVIF (Profile S), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR)Supported
Alarm
Alarm TriggersMotion detection / Alarm input
Alarm EventsAlarm caption / Snapshot / External output
Interfaces
Ethernet10/100M, RJ45 interface
Audio In / Out1 x Line in / 1 x Line out
Control1 x RS485
Alarm In / Out1 x Input / 1 x Output
Memory SlotTF card slot, supports up to 128GB
Environmental
Operating Temperature-30°C ~ 60°C / -22°F ~ 140°F
Operating Humidity 10% ~ 95%
Protection LevelIK10+ @50J, IP67 (-DIR3 only)
Electrical
Power 12V DC ± 10%
Power ConsumptionMax. 11W
Mechanical
Weight 1 kg / 2.2lb (Gross Weight)
DimensionsΦ155.8 × 125.9mm / Φ6.14’’ x 4.96’’



Recommended Bracket

DM-C24

Semi dome in-ceiling mount bracket

DM-C32

Semi dome celling mount bracket

DM-W33

Semi dome wall mount bracket
