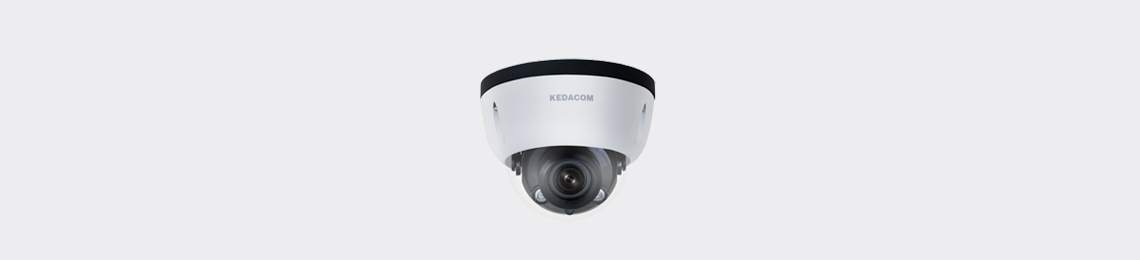

IPC2233-FN-SIR40 | ||
Camera | ||
Image Sensor | 1/2.8’’ progressive scan CMOS | |
Pixels | 2.0 Megapixel | |
Min. Illumination | Color: 0.002lux@ (F1.6, AGC ON) | |
B/W: 0.0002lux@ (F1.6, AGC ON); 0lux with IR | ||
Shutter Speed | 1 ~ 1/30,000s | |
Day / Night | Auto (ICR) / Color / B/W | |
Wide Dynamic Range | Ultra WDR, >=120dB | |
S/N Ratio | >50dB | |
White Balance | Auto / Manual | |
Gain Control | Auto / Manual | |
Backlight Compensation | Off / BLC / WDR / HLC | |
Lens | ||
Mount Type | Φ14 | |
Auto Iris | DC drive | |
Focal Length | -Z2712: 2.7~12mm @ F1.6 motorized varifocal lens | |
Focus Control | Manual / Semi-Automatic / Auto | |
Angle of View | -Z2712: 106° ~ 33° | |
Adjustment Range | Pan: -120° ~ +120° / Tilt: 0° ~ 65° / Rotation: -90° ~ +90° | |
Infrared | ||
IR Distance | 20 ~ 40m | |
IR Intensity | Smart IR | |
Video | ||
Compression | H.265 / H.264 / MJPEG | |
Image Resolution | Main stream: 1080p | |
Secondary stream: D1 | ||
Frame Rate | Main stream: 1080p@30fps | |
Secondary stream: D1@30fps | ||
Bitrate | 32kbps ~ 16Mbps | |
Bitrate Control | VBR / CBR | |
Multi-stream | Supported | |
Caption | Date and time / Alarm / Customized | |
Privacy Masking | Up to 4 zones | |
Motion Detection | Up to 4 zones | |
Video Freeze | Supported | |
ROI | Supported | |
Digital Noise Reduction | 3D noise reduction | |
Digital Defog | Supported | |
Image Flip | Flip / Mirror / Rotation at 90°,180°,270° | |
Audio | ||
Compression | G.711a / G.711u / ADPCM / G.722 / G.722.1c / G.726 | |
Bitrate | 32kbps ~ 64kbps | |
Audio Function | Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute | |
Network | ||
Network Protocols | TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional), IGMP | |
User Interface | IPC Control (IE, Firefox, Chrome) | |
Max. User Access | Max. 10 Users (includes 2 internal) | |
Application Programming | ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI | |
Automatic Network Replenishment (ANR) | Supported | |
Alarm | ||
Alarm Triggers | Alarm input / Network disconnect / Disk full / Disk error | |
Intelligent | Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge | |
Alarm Events | Alarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm | |
Interfaces | ||
Ethernet | 10/100M, RJ45 interface | |
Audio In / Out | 2 x Line in / 1 x Line out | |
Control | 1 x RS485 | |
Alarm In / Out | 1 x Input / 1 x Output | |
Video Out | 1 x BNC, 1.0V [p-p] / 75Ω | |
Memory Slot | Micro SD card slot, supports up to 128GB | |
Environmental | ||
Operating Temperature | -40°C ~ 70°C / -40°F ~ 158°F | |
Operating Humidity | 10% ~ 95% | |
Protection Level | IK10+ @50J, IP67 | |
Electrical | ||
Power | DC12V ± 10% / PoE (IEEE802.3af) | |
Power Consumption | Max. 11W | |
Mechanical | ||
Weight | 0.71 kg / 1.57lb (Gross Weight) | |
Dimensions | Φ122× 96.13mm / Φ4.8’’ x 3.78’’ |
