2.0 Megapixel 1/2.8'' progressive scan CMOS sensor
High definition and smooth picture, 1080p@30fps
H.265 video codec, saves up to 50% bandwidth and storage
Ultra low illumination, 0.001lux with color picture
120dB Ultra WDR
3D noise reduction / Auto Iris / HLC
Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
Above IK10 @ 50J collision energy
Industrial IR LED with long operational lifespan
20 ~ 40m IR distance
Smart IR function
Supports 90°, 180°, 270° image rotation
Varifocal AF lens
Micro SD card slot, supports Automatic Network Replenishment (ANR)
Bi-directional audio / alarm in and out / video out / RS485
2 channel audio input simultaneously
Up to 3 Multi-stream
PoE / Power output
IP67

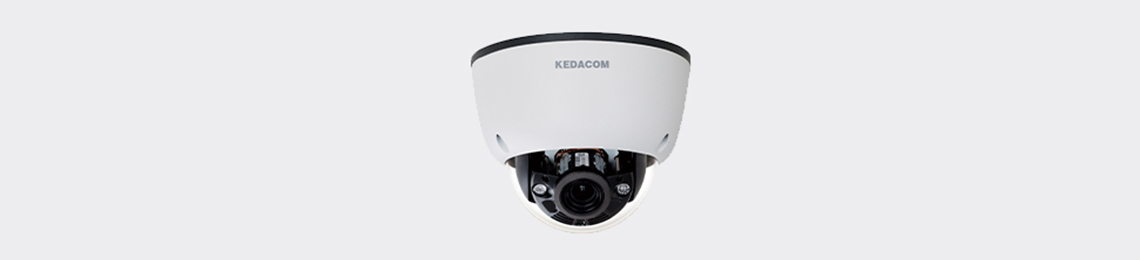

IPC2231-FN-SIR40 | |
Camera | |
Image Sensor | 1/2.8’’ progressive scan CMOS |
Pixels | 2.0 Megapixel |
Min. Illumination | Color: 0.001lux @ (F1.4, AGC ON) |
B/W: 0.0001lux @ (F1.4, AGC ON) | |
Shutter Speed | 1 ~ 1/30,000s |
Day / Night | Auto (ICR) / Color / B/W |
Wide Dynamic Range | Ultra WDR, >=120dB |
S/N Ratio | >52dB |
White Balance | Auto / Manual |
Gain Control | Auto / Manual |
Backlight Compensation | Off / BLC / WDR / HLC |
Lens | |
Mount Type | Φ14 |
Auto Iris | DC drive |
Focal Length | -Z2812: 2.8~12mm @ F1.4 motorized varifocal lens |
Focus Control | Manual / Semi-Automatic / Auto |
Angle of View | -Z2812: 108° ~ 35° |
Adjustment Range | Pan: 0° ~ 355° / Tilt: 0° ~ 75° / Rotation: 0° ~ 355° |
Infrared | |
IR Distance | 20 ~ 40m |
IR Intensity | Smart IR |
Video | |
Compression | H.265 / H.264 / MJPEG |
Image Resolution | Main stream: 1080p |
Secondary stream: D1 | |
Frame Rate | Main stream: 1080p@30fps |
Secondary stream: D1@30fps | |
Bitrate | 32kbps ~ 16Mbps |
Bitrate Control | VBR / CBR |
Multi-stream | Supported |
Caption | Date and time / Alarm / Customized |
Privacy Masking | Up to 4 zones |
Motion Detection | Up to 4 zones |
Video Freeze | Supported |
ROI | Supported |
Digital Noise Reduction | 3D noise reduction |
Digital Defog | Supported |
Image Flip | Flip / Mirror / Rotation at 90°,180°,270° |
Audio | |
Compression | G.711a / G.711u / ADPCM / G.722 / G.722.1c / G.726 |
Bitrate | 32kbps ~ 64kbps |
Audio Function | Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute |
Network | |
Network Protocols | TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, IGMP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional) |
User Interface | IPC Control (IE, Firefox, Chrome) |
Max. User Access | Max. 10 Users (includes 2 internal) |
Application Programming | ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI |
Automatic Network Replenishment (ANR) | Supported |
Alarm | |
Alarm Triggers | Alarm input / Network disconnect / Disk full / Disk error |
Intelligent | Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge |
Alarm Events | Alarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm |
Interfaces | |
Ethernet | 10/100M, RJ45 interface |
Audio In / Out | 2 x Line in / 1 x Line out |
Control | 1 x RS485 |
Alarm In / Out | 1 x Input / 1 x Output |
Video Out | 1 x BNC, 1.0V [p-p] / 75Ω |
Memory Slot | Micro SD card slot, supports up to 128GB |
Power Output | 1 x DC12V / 0.1A Output |
Environmental | |
Operating Temperature | -40°C ~ 70°C / -40°F ~ 158°F |
Operating Humidity | 10% ~ 95% |
Protection Level | IK10+ @50J, IP67 |
Electrical | |
Power | AC24V±10% / DC12V ± 10% / PoE (IEEE802.3af) |
Power Consumption | Max. 11W |
Mechanical | |
Weight | 1 kg / 2.2lb (Gross Weight) |
Dimensions | Φ155.8 × 125.9mm / Φ6.14’’ x 4.96’’ |
