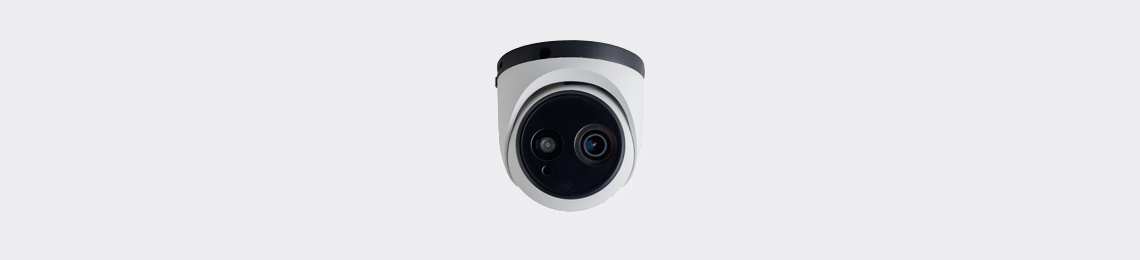

IPC2411-HN-DIR 4.0MP HD Network IR Semi Dome
Excellent Image Quality
  • 4.0 Megapixel 1/3’’ progressive scan CMOS sensor
  • High definition and smooth picture, 2592×1520@20fps, 2048×1520@25fps, 1080p@30fps
  • H.265 video codec, saves up to 50% bandwidth and storage
  • Low illumination,  0.05lux with color picture
  • WDR / HLC / 3D noise reduction
Intelligent Functions
  • Motion detection / Tampering / Guard line / Enter guard area / Exit guard area
Integrated High Efficiency IR
  • Industrial IR LED with long operational lifespan
  • 30m IR distance
  • Smart IR function
A Variety of Installation Modes
  • Supports 90°, 180°, 270° image rotation
Abundant Functions and Features
  • Built-in Mic
  • Dual-stream (2592×1520 + D1)
  • Anti-fog glass
  • IP66
ModelIPC2411-HN-DIR
Camera
Image Sensor 1/3’’ Progressive Scan CMOS
Pixels4.0 Megapixel
Min. Illumination Color: 0.05lux @ (F1.6,  AGC ON)
B/W: 0lux  with IR
Shutter Speed1 ~ 1/30,000s
Day / NightAuto (ICR) / Color / B/W
Wide Dynamic RangeDigital WDR
S/N Ratio>50dB
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationOff / WDR / BLC / HLC
Lens
Mount TypeM12
Focal Length2.8mm (-L0280) / 3.6mm (-L0360) / 6mm (-L0600) / 8mm (-L0800)
Angle of View101.2° (-L0280) / 78.6° (-L0360) / 53.2° (-L0600) / 36.8° (-L0800)
Adjustment RangePan: 0° ~ 360° / Tilt: 0° ~ 85° / Rotation: 0° ~ 360°
Infrared
IR Distance30m
IR IntensitySmart IR
Video
CompressionH.265 / H.264 / MJPEG
Image ResolutionMain stream: 2592×1520
Secondary stream: D1
Frame RateMain stream: 2592×1520@20fps, 2048×1520@25fps, 1080p@30fps
Secondary stream: D1@30fps
Bitrate64kbps ~ 16Mbps
Bitrate ControlVBR / CBR
Dual-StreamSupported
CaptionDate and time / Alarm / Customized
Privacy MaskingUp to 4 zones
Motion DetectionUp to 4 zones
ROISupported
Digital Noise Reduction3D noise reduction
Digital DefogSupported
Image FlipFlip / Mirror / Rotation 90°, 180°, 270°
Audio
CompressionG.711a / G.711u / ADPCM / G.722
Bitrate32kbps ~ 64kbps
Network
Network ProtocolsTCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User InterfaceIPC Control (IE, Firefox, Chrome)
Max. User AccessMax. 10 Users (includes 2 internal)
Application ProgrammingONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Alarm
Alarm TriggersNetwork disconnect
IntelligentMotion detection / Tampering / Guard line / Enter guard area / Exit guard area
Alarm EventsAlarm report / Text overlay / Email notice
Interfaces
Ethernet10/100M, RJ45 interface
Audio1 x Built-in Mic
Environmental
Operating Temperature-40°C ~ 60°C / -40°F ~ 140°F
Operating Humidity 10% ~ 95%
Protection levelIK10 (optional), IP66
Electrical
Power 12V DC ± 10% / External PoE (Optional)
Power ConsumptionMax. 11W
Mechanical
Weight 1 kg / 2.2lb (Gross Weight)
DimensionsΦ93.6 × 93.3mm / Φ3.69’’ x 3.68’’
