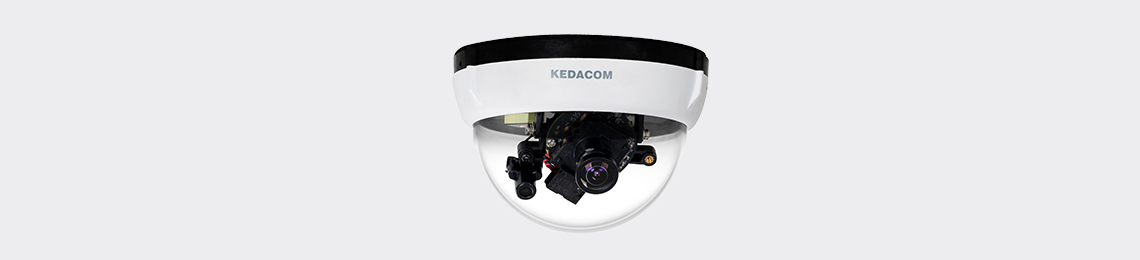

IPC2440-HN-S 4.0MP HD Network Mini Semi Dome
Excellent Image Quality
  • 4.0 Megapixel 1/3’’ progressive scan CMOS sensor
  • High definition and smooth picture, 2592×1520@20fps, 2048×1520@25fps, 1080p@30fps
  • H.265 video codec, saves up to 50% bandwidth and storage
  • Low illumination, 0.05lux with color picture
  • WDR / HLC / 3D noise reduction
Mini size
  • 0.5 kg / 1.1lb
  • Φ97.62 × 67.65mm / Φ3.85’’ x 2.67’’
Intelligent Functions
  • Motion detection / Tampering / Guard line / Enter guard area / Exit guard area
A Variety of Installation Modes
  • Supports 90°, 180°, 270° image rotation
Abundant Functions and Features
  • TF card slot, supports Automatic Network Replenishment (ANR)
  • Bi-directional audio / Built-in Mic / alarm in and out / video out / RS485
  • 2 channel audio input simultaneously
  • Dual-stream (2592×1520 + D1)
  • PoE
  • IK10
ModelIPC2440-HN-S
Camera
Image Sensor 1/3’’ Progressive Scan CMOS
Pixels4.0 Megapixel
Min. Illumination Color: 0.05lux @ (F1.6, AGC ON)
B/W: 0.005lux @ (F1.6, AGC ON)
Shutter Speed1 ~ 1/30,000s
Day / NightAuto (ICR) / Color / B/W
Wide Dynamic RangeDigital WDR
S/N Ratio>50dB
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationOff / WDR / BLC / HLC
Lens
Mount TypeM12
Focal Length2.1mm (-L0210)
Angle of View143.3° (-L0210)
Adjustment RangePan: -102.5° ~ 102.5° / Tilt: 0° ~ 70°
Video
CompressionH.265 / H.264 / MJPEG
Image ResolutionMain stream: 2560×1440
Secondary stream: D1
Frame RateMain stream:  2592×1520@20fps, 2560×1440@25fps, 2048×1520@25fps, 1080p@30fps
Secondary stream: D1@30fps
Bitrate32kbps ~ 16Mbps
Bitrate ControlVBR / CBR
Dual-StreamSupported
CaptionDate and time / Alarm / Customized
Privacy MaskingUp to 4 zones
Motion DetectionUp to 4 zones
Video FreezeSupported
ROISupported
Digital Noise Reduction3D noise reduction
Digital DefogSupported
Image FlipFlip / Mirror / Rotation at 90°,180°,270°
Audio
CompressionG.711a / G.711u / ADPCM / G.722 / G.722.1c / G.726
Bitrate32kbps ~ 64kbps
Audio FunctionBi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network ProtocolsTCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User InterfaceIPC Control (IE, Firefox, Chrome)
Max. User AccessMax. 10 Users (includes 2 internal)
Application ProgrammingONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR)Supported
Alarm
Alarm TriggersAlarm input / Network disconnect / Disk full / Disk error
IntelligentMotion detection / Tampering / Guard line / Enter guard area / Exit guard area
Alarm EventsAlarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm
Interfaces
Ethernet10/100M, RJ45 interface
Audio In / Out1 x Built-in Mic / 2 x Line in / 1 x Line out
Control1 x RS485
Alarm In / Out1 x Input / 1 x Output
Video Out1 x BNC, 1.0V [p-p] / 75Ω
Memory SlotTF card slot, supports up to 128GB
Environmental
Operating Temperature-40°C ~ 60°C / -40°F ~ 140°F
Operating Humidity 10% ~ 95%
Protection LevelIK10
Electrical
Power 12V DC ± 10% / PoE (IEEE802.3af)
Power ConsumptionMax. 11W
Mechanical
Weight 0.5 kg / 1.1lb (Gross Weight)
DimensionsΦ97.62 × 67.65mm / Φ3.85’’ x 2.67’’
