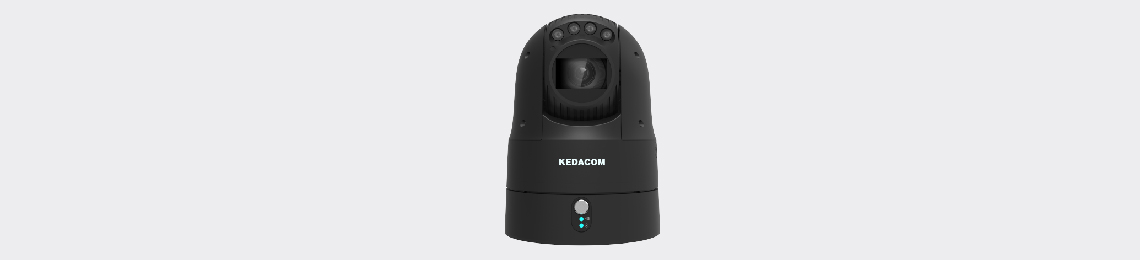

IPC522-G230-5G Recognitive 2.0MP 30x Vehicle 5G PTZ Camera
Excellent Image Quality
  • 2.0 Megapixel 1/2.8’’ Progressive Scan CMOS Sensor

  • High definition and smooth picture, 1080p@60fps

  • H.265 video codec, saves up to 50% bandwidth and storage

  • Ultra low illumination, 0.003lux with color picture

  • IR automatically adjust

  • 3D noise reduction / HLC / BLC

Recognitive Functions
  • Up to 5 targets simultaneously

  • Target capturing and characters recognizing

  • Built-in picture comparison algorithm, best picture selection

Long Operation Lifespan
  • Industrial components, withstands operation temperatures of -40°C ~ 70°C

  • IP66, TVS 6000V lightning protection, surge protection and voltage transient protection

Large Scale
  • 30x optical zoom

  • IR distance up to 80m

Abundant Functions and Features
  • Built-in Micro SD card, supports Automatic Network Replenishment (ANR)

  • Built-in super magnet

  • 4G / 5G / Wi-Fi / Blue tooth supported

  • Up to 8 hours continous working with battary in 4G / 5G

  • Vehicle based PT structure

Image Sensor 1/2.8’’ Progressive Scan CMOS
Pixels2.0 Megapixel
Min. Illumination Color: 0.003lux @ (F1.3, AGC ON)
B/W: 0.0003lux @ (F1.3, AGC ON); 0lux with IR
Shutter Speed1 ~ 1/30,000S
Day / NightAuto (ICR) / Color / B/W
Wide Dynamic RangeDigital WDR
S/N Ratio57dB
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationOff / WDR / BLC / HLC
Focal Length5 ~ 150mm, 30x optical
Zoom SpeedApprox 3s (Optical)
Angle of View58.3°~ 2.12° (Wide~Tele)
Min. Object Distance1000 ~ 1500mm (Wide~Tele)
Max. Aperture RatioF1.3(Wide) / F4.6 (Tele)
Focus ControlAuto / Manual / Semi-Automatic
IR LED4pcs IR LED Array
IR Distance40 ~ 80m
IR IntensityAutomatically adjust according to zoom ratio
Pan and Tilt
Pan / Tilt Range360° Endless / -15° ~ 90° (Auto Flip)
Pan / Tilt SpeedPan manual speed: 0.1° ~ 60°/s; Pan preset speed: 60°/s
Tilt manual speed: 0.1° ~ 50°/s; Tilt preset speed: 50°/s
Proportional ZoomPan / Tilt speed can be adjusted automatically according to zoom multiples
Preset 256
Patrol8 Patrols scheme, up to 32 presets per patrol
Pattern Scan4 Scan paths, each path can record 10 minutes of operation path
Power-off MemoryPower-off memory / Power-on recovery
Auto GuardPath / Preset  / Pan scan / Tilt scan
PT LimitManual / Scan / Pan
3D Positioning PTZ control with mouse click and drag
CompressionH.265 / H.264
Image ResolutionMain stream: 1080p
Secondary stream: 720
Frame RateMain stream: 1080p@60fps
Secondary stream: 720@60fps
Bitrate64kbps ~ 16Mbps
Bitrate ControlVBR / CBR
Multi StreamSupported
CaptionDate and time / Alarm / Direction / Customized
Privacy MaskingUp to 4 zones
Motion DetectionUp to 4 zones
Video FreezeSupported
Digital Noise Reduction3D noise reduction
Digital DefogSupported
Image FlipFlip / Mirror
Network ProtocolsTCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User InterfaceIPC Control (IE, firefox, Chrome)
Max. User AccessMax. 20 Users (includes 2 internal)
Wireless4G / 5G / Wi-Fi / Blue tooth
3G / 4G Frequency Band5G NR: n1 / n41/ n77/ n78 / n79
FDD-LTE: B1 / B3 / B5 / B8
TDD-LTE: B38 / B39 / B40 / B41
WCDMA: B1 / B8
GSM / GPRS / EDGE: 900 / 1800MHz
TD-SCDMA: B34 / B39
Customizable network spectrum
Wi-Fi802.11ac/b/g/n 2.4G / 5G, Wi-Fi AP
Blue ToothBT 4.1
Location TechnologyGPS, GLONASS (optional)
Application ProgrammingOnvif (Profile S, Profile G),  API, CGI
Alarm TriggersNetwork disconnect
Alarm EventsAlarm report / Text overlay / Email notice
Recognitive Functions
Target DetectionFace
up to 5 targets simultaneously
Captured PictureFace, Full view
Built-in picture comparison algorithm, best picture selection
Target CharactersDirection / Speed level
Aviation Port4-Pin 10/100M interface, 2-Pin Charge interface
Wi-FiBuilt-in Wi-Fi module
GPSBuilt-in GPS module
4G / 5GBuilt-in 4G / 5G module
Blue ToothBulit-in Blue Tooth module
Memory SlotBuilt-in 128G Micro SD card
Operating TemperaturePower supplied by built-in battary: -20°C ~ 60°C / -4°F ~ 140°F
Power supplied by DC: -40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity 10% ~ 95%
Protection LevelIP66, TVS 6000V lightning protection, surge protection and voltage transient protection
Power Built-in 13600mAH  normal temperature rechargeable lithium battery
Up to 8 hours continuously working with battery in 5G / 4G
Up to 10 hours continuously working with battery in Wi-Fi
12V DC ± 10%
Power ConsumptionMax. 25W (IR and 4G / 5G on )
MagnetBuilt-in super magnet
Weight 3.8kg / 8.38lb (Gross Weight)
DimensionsΦ215 × 153mm /  Φ8.47’’ x 6.03’’
Colour Black
OptionalThree-proof Suitcase
* All battery claims depend on network configuration and many other factors, actual results will vary.
