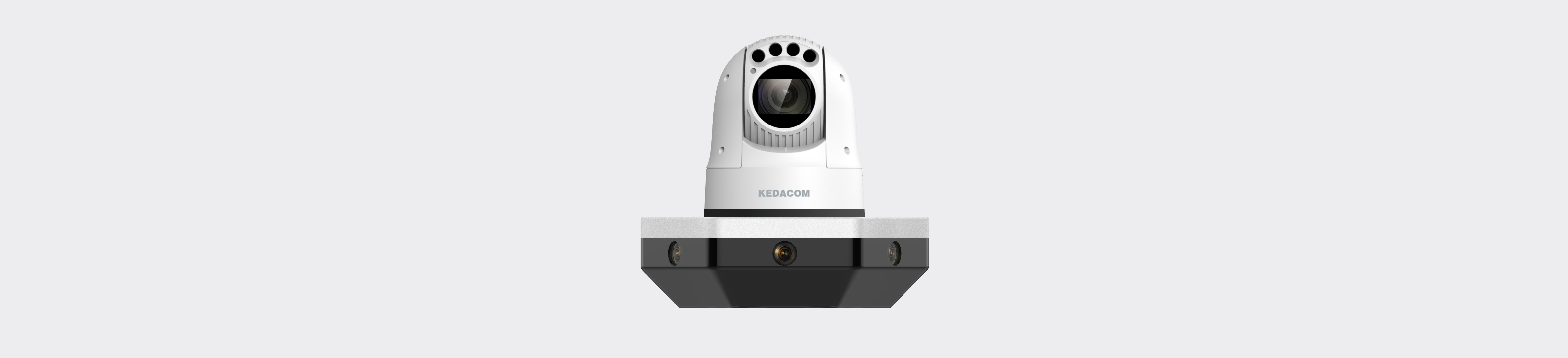

IPC981-T230-NIR Recognitive 360° Panoramic Vehicle 5G PTZ Camera
Excellent Image Quality
  • 6 x 4.0 Megapixel + 1 x 2.0 Megapixel 1/1.8’’ Progressive Scan CMOS Sensor

  • 2 x 180° panoramic stitching

  • H.265 video codec, saves up to 50% bandwidth and storage

  • Ultra low illumination, 0.0003lux with color picture

  • IR automatically adjusts

  • WDR / 3D noise reduction / HLC / BLC

Intelligent Functions
  • Motion detection / Tampering / Guard line / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge

  • Auto tracking / Facial recogniton / Plate recognition / Offline comparison

Long Operation Lifespan
  • Industrial components, withstands operation temperatures of -40°C ~70°C

  • IP67, TVS 6000V lightning protection, surge protection and voltage transient protection

Large Scale
  • 40x optical zoom

  • IR distance up to 80m

Abundant Functions and Features
  • 3 x Micro SD card slots, supports Automatic Network Replenishment (ANR)

  • 4G / 5G / Wi-Fi / Blue tooth supported

  • Built-in O-sensor

  • Built-in GPS module



IPC981-T230-NIR
Panoramic Camera
Image Sensor6 x 1/1.8'' Progressive Scan CMOS
Pixels4.0 Megapixel
Min. Illumination Color: 0.0003lux @ (F1.0, AGC ON)
B/W: 0.0001lux @ (F1.0, AGC ON); 0lux with IR
Shutter Speed1 ~ 1/30,000s
Day / NightAuto (ICR) / Color / B/W
Wide Dynamic RangeUltra WDR, >=120dB
S/N Ratio>57dB
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationOff / WDR / BLC / HLC
Focal Length5mm
CompressionH.265 / H.264 / MJPEG
Image ResolutionMain stream: 6000*2160, stiching picture
Secondary stream: 2048 x 600
Third stream: 704 x 200
Frame RateMain stream: 1 ~ 30fps
Secondary stream: 1 ~ 30fps
Third stream: 1 ~ 30fps
Bitrate256~ 32768Kbps
PTZ Camera
Image Sensor 1/1.8'' progressive scan CMOS
Pixels2.0 Megapixel
Min. Illumination Color: 0.001lux @ (F1.2, AGC ON)
B/W: 0.0005lux @ (F1.2, AGC ON); 0lux with IR
Shutter Speed1 ~ 1/30,000s
Day / NightAuto (ICR) / Color / B/W
Day / NightAuto (ICR) / Color / B/W
Wide Dynamic RangeUltra WDR, >=120dB
S/N Ratio>57dB
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationOff / WDR / BLC / HLC
Focal Length4.3 ~ 172mm, 40x optical
Angle of View60°~ 2.4° (Wide~Tele)
Min. Object Distance300 ~ 1500mm (Wide~Tele)
Focus ControlAuto / Manual / Semi-Automatic
IR Distance40~80m
IR IntensityAutomatically adjust according to zoom ratio
CompressionH.265 / H.264 / MJPEG
Image ResolutionMain stream: 1080P
Secondary stream: 1080P
Third stream: D1
Frame RateMain stream: 1 ~ 60fps
Secondary stream: 1 ~ 60fps
Third stream: 1 ~ 30fps
Bitrate32kbps ~ 16Mbps
IR Distance80
IR IntensityAutomatically adjust according to zoom ratio
Pan and Tilt
Pan / Tilt Range360° Endless / -15° ~ 90°
Pan / Tilt SpeedPan manual speed: 0.1˚~ 80˚/s; Pan preset speed: 120°/s
Tilt manual speed: 0.1˚~ 60˚/s ; Tilt preset speed: 100°/s
Proportional ZoomPan / Tilt speed can be adjusted automatically according to zoom multiples
Preset 256
Patrol8 Patrols scheme, up to 32 presets per patrol
Pattern Scan8 scan paths, each path has 32 presets
Power-off MemoryPower-off memory / Power-on recovery
Auto GuardPath / Preset / Mixed / Pan scan / Tilt scan / Frame scan / Random scan / Panorama scan
PT LimitManual / Scan / Pan
3D Positioning PTZ control with mouse click and drag
Electronic compassBuilt-in O-sensor
Audio
CompressionPCMA, PCMU, G.722.1.C, ADPCM, G722,G.726
Bitrate32kbps ~ 64kbps
Audio FunctionBi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network ProtocolsTCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User InterfaceIPC Control (IE, Firefox, Chrome)
Max. User AccessMax. 20 Users (includes 2 internal)
Wireless4G / 5G / Wi-Fi / Blue tooth
4G / 5G Frequency Band5G NR: n1 / n41 / n77 / n78 / n79
FDD-LTE: B1 / B3 / B5 / B8
TDD-LTE: B38 / B39 / B40 / B41
WCDMA: B1 / B8
GSM / GPRS / EDGE: 900 / 1800MHz
TD-SCDMA: B34 / B39
EVDO/CDMA: BC0
Customizable network spectrum
Wi-Fi802.11ac/b/g/n 2.4G / 5G, Wi-Fi AP
Blue ToothBT 4.1
Location TechnologyGPS / GLONASS
Application ProgrammingONVIF (Profile S, Profile G), API, CGI
Automatic Network Replenishment (ANR)Supported
Alarm
Alarm TriggersAlarm input / Network disconnect / Disk full / Disk error
IntelligentPTZ Camera: Motion detection / Tampering / Guard line / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge / Facial recogniton / Plate recognition (Optional) / Offline comparison
Panoramic Camera: Motion detection / Tampering / Guard line / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge / Auto tracking
Alarm EventsAlarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm
Interfaces
Ethernet10/100M, RJ45 interface
GPSBuild-in GPS module
Audio In / Out1 x Line in / 1 x Line out
Memory Slot3 x Micro SD card slot, supports up to 256GB / slot
Environmental
Operating Temperature-40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity 10% ~ 95%
Protection LevelIP67, TVS 6000V lightning protection, surge protection and voltage transient protection
Electrical
Power DC9 ~ 36V
Power ConsumptionMax. 36W (IR on)
Mechanical
Weight 7 kg / 15.4lb (Gross Weight)
DimensionsΦ245 × 412.5 mm / Φ9.6" × 16.2"
