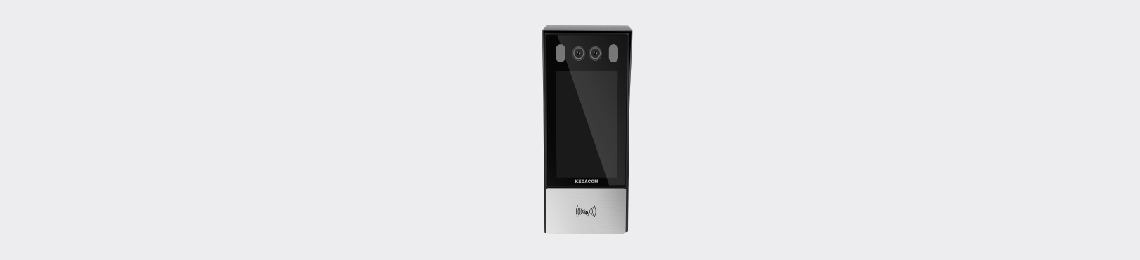

KSCA120-AI-FC | |
Camera | |
Image Sensor | 2 x 1/2.8’’ Progressive Scan CMOS |
Pixels | 2.0 Megapixel |
Min. Illumination | Color: 0.001lux |
Focal Length | 4mm dula-lens |
Compression | H.265 / H.264 |
Image Resolution | 1080p@30fps |
Bitrate | 32kbps ~ 32Mbps |
Audio | |
Compression | G.711a / G.711u / ADPCM / G.722 / G.726 |
Bitrate | 32kbps ~ 64kbps |
Audio Function | Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute |
Display | |
Size | 5” |
Type | LCD |
Resolution | 480 x 800 |
Operation Method | Capacitive touchscreen |
Screen Hardness | >= 6H |
Access Control | |
Card Reader | IC / M1 / CPU card |
Card Capacity | 100,000 |
Face Detection Comparison Library | 20,000 |
Unlock Mode | Face Recogintion \ Card \ Face Recognition and Card \ Face Recognition or Card \ Remote Control |
Envent Capacity | 1,000,000 |
1:N Face Recognition | Supported |
Face Recognition Duration (1:N) | <= 0.5s |
Accuracy Rate | >= 99% |
Face Detection Distance | 0.3 ~ 2m |
Face Anti-Spoofing | Supported |
Face Exposure | Supported |
Network | |
Network Protocols | TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 |
Wi-Fi | 802.11 b/g/n 2.4G |
User Interface | IPC Control (IE, Firefox, Chrome) |
Max. User Access | Max. 10 Users (includes 2 internal) |
Application Programming | ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI |
Automatic Network Replenishment (ANR) | Supported |
Interfaces | |
Ethernet | 10/100M, RJ45 interface |
Audio In / Out | 1 x Built-in Mic, 1 x Speaker |
Control | 1x RS485, 1 x Exit button, 1 x Lock NO / NC, 1 x Door contact, 1 x Tamper |
Alarm In / Out | 2 x Input / 1 x Output |
Memory Slot | Micro SD card slot, supports up to 256GB |
Environmental | |
Operating Temperature | -40°C ~ 60°C / -40°F ~ 140°F |
Operating Humidity | 10% ~ 95% |
Protection Level | IP66 |
Electrical | |
Power | 12V DC ± 10% |
Power Consumption | Max. 20W |
Mechanical | |
Weight | 1.8kg / 3.97lb (Gross Weight) |
Dimensions | 215 x 94.2 x 54.2mm / 8.46’’ x 3.71’’ x 2.13’’ |
