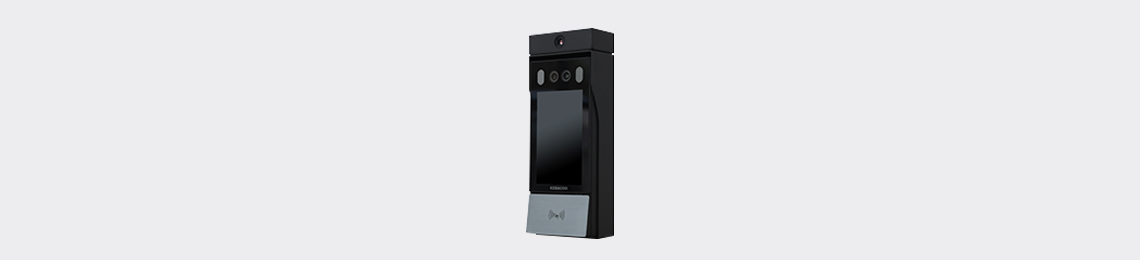

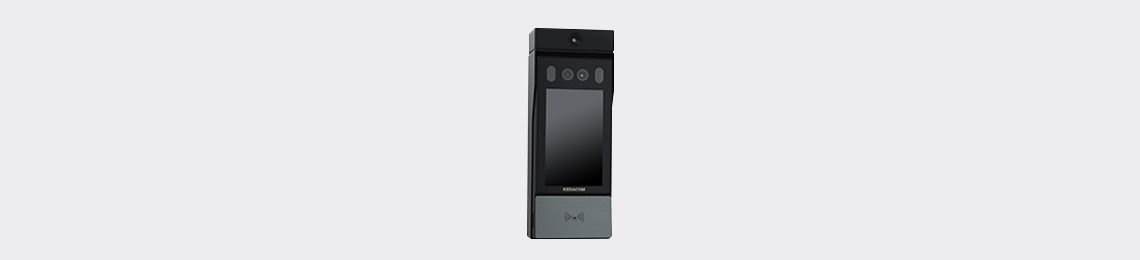

KSCA120-ANW-TFC Face Recognition & Fever Screening Terminal
Excellent Image Quality
  • 2.0 Megapixel 1/2.8’’ Progressive Scan CMOS Sensor

  • High definition and smooth picture, 1080p@30fps

  • 0.001lux,ultra low illumination

  • 4mm ultra wide angle dual-lens

Recognitive Functions
  • Built-in deeplearning face recognition algorithm

  • Support face anti-spoofing

  • Face intelligence exposure

Flexible Access Control
  • Support Face Recogintion \ Card \ Face Recognition and Card \ Face Recognition or Card \ Face Rcognition and Fever Screening \ Remote Control

  • Support up to 20,000 face library, up to 100,000 card capacity and 1,000,000 event records

Temperature Measurement
  • Support fever screening

  • Measurement accuracy ±0.5°C

Abundant Functions and Features
  • 5” Capacitive touchscreen

  • Micro SD card slot, supports Automatic Network Replenishment (ANR)

  • Built-in Mic and speaker / Bi-directional audio / alarm in&out / RS485 / exit button / lock NO NC / door contact / tamper button


Image Sensor 2 x 1/2.8’’ Progressive Scan CMOS
Pixels2.0 Megapixel
Min. Illumination Color: 0.001lux
Focal Length4mm dual-lens
CompressionH.265 / H.264
Image Resolution1080p@30fps
Bitrate32kbps ~ 32Mbps
Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Resolution265 x 192
Detector Pitch12μmm
NETD<= 50mk @F1.0
Response Waveband8μmm ~ 14μmm
Angel of View42° × 32°
CompressionG.711a / G.711u / ADPCM / G.722 / G.726
Bitrate32kbps ~ 64kbps
Audio FunctionBi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Resolution480 x 800
Operation MethodCapacitive touchscreen
Screen Hardness>= 6H
Temperature Measurement
Temperature Measurement Range30°C ~ 45°C
Temperature Measurement Accuracy±0.5°C
Temperature Measurement Distance0.5 ~ 0.8m
Access Control
Card ReaderIC / M1 / CPU card
Card Capacity100,000
Face Detection Comparison Library20,000
Unlock ModeFace Recogintion \ Card \ Fever Screening \ Face Recognition and Card \ Face Recognition or Card \Face Rcognition and Fever Screening \ Remote Control
Envent Capacity1,000,000
1:N Face RecognitionSupported
Face Recognition Duration (1:N)<= 0.5s
Accuracy Rate>= 99%
Face Detection Distance0.3 ~ 2m
Face Anti-SpoofingSupported
Face ExposureSupported
Network ProtocolsTCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6
Wi-Fi802.11 b/g/n 2.4G
User InterfaceIPC Control (IE, Firefox, Chrome)
Max. User AccessMax. 10 Users (includes 2 internal)
Application ProgrammingONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR)Supported
Ethernet10/100M, RJ45 interface
Audio In / Out1 x Built-in Mic, 1 x Speaker
Control1x RS485, 1 x Exit button, 1 x Lock NO / NC, 1 x Door contact, 1 x Tamper
Memory SlotMicro SD card slot, supports up to 256GB
Operating Temperature0°C ~ 40°C / 32°F ~ 104°F
Operating Humidity 10% ~ 95%
Power 12V DC ± 10%
Power ConsumptionMax. 30W
Weight 2kg / 4.4lb (Gross Weight)
Dimensions241 x 94.2 x 54.2mm / 9.49’’ x 3.71’’ x 2.13’’
