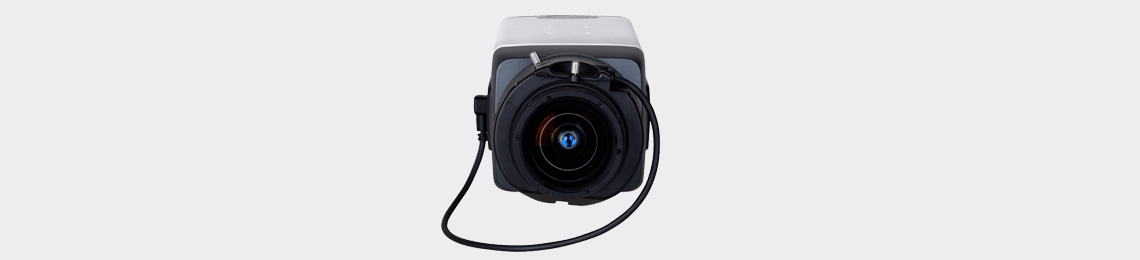

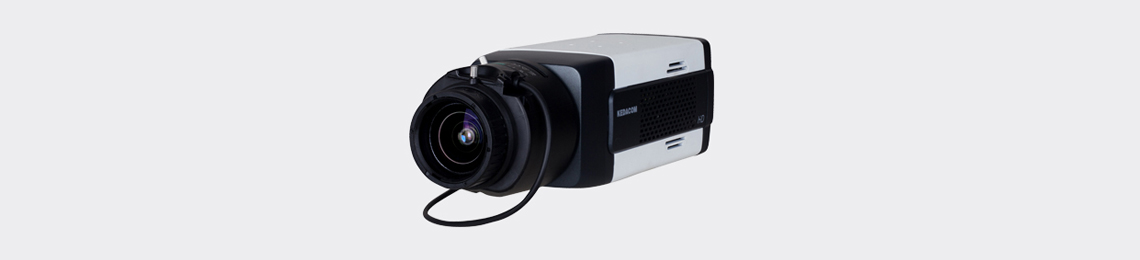

com.jeecms.content.domain.ContentAttr@6e1a1ed 8.0MP (4K) UHD Network Box Camera -KEDACOM

UHD 4K Resolution

8.0 Megapixel 1/1.7’’ progressive scan CMOS sensor
UHD 4K@25fps

Excellent Image Quality

H.264 high profile video codec, saves up to 30% bandwidth and storage
Low illumination, 0.5lux with color picture
WDR support / 3D noise reduction

Abundant Functions and Features

TF card slot, supports up to 128GB
Supports Automatic Network Replenishment (ANR)
Dual-stream (4K+D1)
Bi-directional audio / alarm in and out / video out / RS485
PoE

	IPC185-AN
Camera
Image Sensor	1/1.7’’ progressive scan CMOS
Pixels	8.0 Megapixel
Min. Illumination	Color: 0.5lux @ (F1.2, AGC ON)
Min. Illumination	B/W: 0.05lux @ (F1.2, AGC ON)
Shutter Speed	1/10 ~ 1/10,000s
Day / Night	Auto (ICR) / Color / B/W
Wide Dynamic Range	Digital WDR
S/N Ratio	>50dB
White Balance	Auto / Manual
Gain Control	Auto / Manual
Backlight Compensation	Off / BLC / WDR
Lens (not included)
Mount Type	C / CS
Auto Iris	DC drive
Video
Compression	H.264
Image Resolution	Main stream: 4K (4096×2160)
Image Resolution	Secondary stream: D1
Frame Rate	Main stream: 4K@25fps
Frame Rate	Secondary stream: D1@25fps
Bitrate	64kbps ~ 32Mbps
Bitrate Control	VBR / CBR
Dual-Stream	Supported
Caption	Date and time / Alarm / Customized
Privacy Masking	Up to 4 zones
Motion Detection	Up to 4 zones
Video Freeze	Supported
Digital Noise Reduction	3D noise reduction
Image Flip	Flip / Mirror
Audio
Compression	G.711a / G.711u / ADPCM / G.722
Bitrate	32kbps ~ 64kbps
Audio Function	Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network Protocols	TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, IPv4, IPv6, HTTPS, NTP, SNTP, IEEEE802.1X
User Interface	IPC Control (IE)
Max. User Access	8 Users (include 2 internal access)
Application Programming	ONVIF (Profile S), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR)	Supported
Alarm
Alarm Triggers	Motion detection / Alarm input
Alarm Events	Alarm caption / Snapshot / External output
Interfaces
Ethernet	10/100/1000M, RJ45 interface
Audio In / Out	1 x Line in / 1 x Line out
Control	1 x RS485
Alarm In / Out	1 x Input / 1 x Output
Video Out	1 x BNC, 1.0V [p-p] / 75Ω
Memory Slot	Micro SD card slot, supports up to 128GB
Environmental
Operating Temperature	-40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity	10% ~ 95%
Electrical
Power	AC 24V ± 10% / DC 12V ± 10% / PoE (IEEE802.3af)
Power Consumption	Max. 8W
Mechanical
Weight	0.65 kg / 1.4lb (Gross Weight)
Dimensions	168.9 x 75.5 x 66.4mm / 6.65’’ x 2.98’’ x 2.62’’
