2.0 Megapixel 1/1.9’’ Progressive Scan CMOS Sensor
High definition and smooth picture, 1080p@60fps
H.264 high profile video codec, save up to 30% bandwidth and storage
Ultra low illumination, 0.002Lux with color picture
WDR support / 3D noise reduction
Variety of Installation Application
Support Image rotation 90°,180°,270°
TF card slot, support Automatic Network Replenishment (ANR)
Up to 4 multi stream
Bi-directional audio / alarm in&out / video out / RS485
PoE

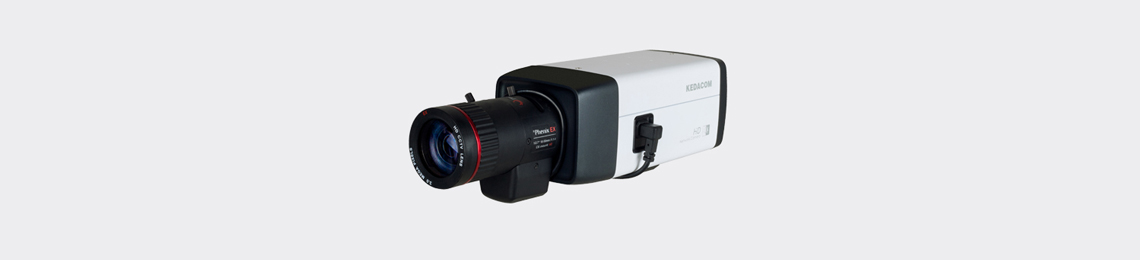

IPC123-EN | |
Camera | |
Image Sensor | 1/1.9’’ Progressive Scan CMOS |
Pixels | 2.0 Megapixel |
Min. Illumination | Color: 0.002Lux @ (F1.2, AGC ON) |
B/W: 0.0002Lux @ (F1.2, AGC ON) | |
Shutter Speed | 1/10 ~ 1/10,000S |
Day / Night | Auto (ICR) / Color / B/W |
Wide Dynamic Range | Digital WDR |
S/N Ratio | >52dB |
White Balance | Auto / Manual |
Gain Control | Auto / Manual |
Backlight Compensation | Off / BLC / WDR |
Lens (not included) | |
Mount Type | C / CS |
Auto Iris | DC drive |
Video | |
Compression Format | H.264 / MJPEG |
Image Resolution | Main stream: 1080p |
Secondary stream: D1 | |
Frame Rate | Main stream: 1080p@60fps |
Secondary stream: D1@30fps | |
Bitrate | 64kbps ~ 16Mbps |
Bitrate Control | VBR / CBR |
Multi Stream | Support |
Caption | Date&Time / Alarm / Customized |
Privacy Masking | Up to 4 zones |
Motion Detection | Up to 4 zones |
Video Freeze | Support |
Digital Noise Reduction | 3D noise reduction |
Image Flip | Flip / Mirror / Rotation 90°,180°,270° |
Audio | |
Compression Format | G.711a / G.711u / ADPCM / G.722 |
Bitrate | |
Audio Function | Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute |
Network | |
Network Protocol | TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, IPv4, IPv6 (optional) |
User Interface | |
Max. User Access | 10 Users (include 2 internal access) |
Application Program | Onvif, GB/T 28181-2011, API |
ANR | Support |
Alarm | |
Alarm Triggers | Motion detection / Alarm input |
Alarm Events | |
Interfaces | |
Ethernet | 10/100M, RJ45 interface |
Audio In / Out | 1 x Line in / 1 x Line out |
Control | |
Alarm In / Out | 1 x Input / 1 x Output |
Video Out | 1 x BNC, 1.0V [p-p] / 75Ω |
Memory Slot | Micro SD card slot, support 128GB |
Environmental | |
Operating Temperature | -30°C ~ 60°C / -22°F ~ 140°F |
Operating Humidity | 10% ~ 95% |
Electrical | |
Power | 12V DC ± 10% / PoE (IEEE802.3af) |
Power Consumption | Max. 6W |
Mechanical | |
Weight | 0.5Kg / 1.1lb (Gross Weight) |
Dimensions | 147.5 x 68 x 61mm / 5.81’’ x 2.68’’ x 2.40’’ |
CM-W13
Wall mounted big bracket
CM-W16
Wall mounted small bracket
CH-010
Indoor small shield
CH-111
Outdoor small shield
CH-112
Outdoor small shield
CH-113
Outdoor small shield
CH-114
Outdoor small shield
DV3.8X4SR4A-SA1L
FUJINON, 4~15.2mm, 1/1.8", 3 Megapixels Manual focus
M12VM412IRR7
EVETAR, 4~12mm, 1/2", 3 Megapixels Manual focus
DV4x12.5SR4A-SA1L
FUJINON, 12.5~50mm, 1/1.8", 5 Megapixels Manual focus
SV1040GNBIRMP
AVENIR, 10~40mm, 1/1.8", 3.0 Megapixels Manual focus
118VD3818C
LNC, 3.8~18mm, 1/1.8", 3.0 Megapixels Manual focus
