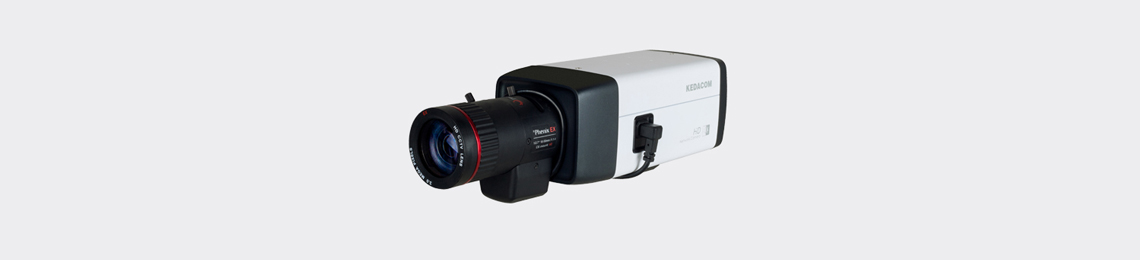

IPC113-AN 1.3MP HD Network Box Camera
Excellent Image Quality
  • 1.3 Megapixel 1/3’’ progressive scan CMOS sensor
  • High definition and smooth picture, 960p@30fps
  • H.264 high profile video codec, saves up to 30% bandwidth and storage
  • Low illumination, 0.01lux with color picture
  • WDR support / 3D noise reduction
A Variety of Installation Modes
  • Supports 90°, 180°, 270° image rotation
Abundant Functions and Features
  • TF card slot, support Automatic Network Replenishment (ANR)
  • Dual-stream (960p+D1)
  • Bi-directional audio / alarm in and out / video out / RS485
  • PoE
 IPC113-AN
Camera
Image Sensor1/3’’ progressive scan CMOS
Pixels1.3 Megapixel
Min. IlluminationColor: 0.01lux @ (F1.2, AGC ON)
B/W: 0.001lux @ (F1.2, AGC ON)
Shutter Speed1/10 ~ 1/10,000s
Day / NightAuto (ICR) / Color / B/W
Wide Dynamic RangeDigital WDR
S/N Ratio>50dB
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationOff / BLC / WDR
Lens (not included)
Mount TypeC / CS
Auto IrisDC drive
Video
CompressionH.264 / MJPEG
Image ResolutionMain stream: 960p
Secondary stream: D1
Frame RateMain stream: 960p@30fps
Secondary stream: D1@30fps
Bitrate64kbps ~ 8Mbps
Bitrate ControlVBR / CBR
Dual-StreamSupported
CaptionDate and time / Alarm / Customized
Privacy MaskingUp to 4 zones
Motion DetectionUp to 4 zones
Video FreezeSupported
Digital Noise Reduction3D noise reduction
Image FlipFlip / Mirror / Rotation at 90°,180°,270°
Audio
CompressionG.711a / G.711u / ADPCM / G.722
Bitrate32kbps ~ 64kbps
Audio FunctionBi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network ProtocolsTCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, IPv4, IPv6 (optional)
User InterfaceIPC Control (IE)
Max. User AccessMax. 10 Users (includes 2 internal)
Application ProgrammingONVIF (Profile S), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR)Supported
Alarm
Alarm TriggersMotion detection / Alarm input
Alarm EventsAlarm caption / Snapshot / External output
Interfaces
Ethernet10/100M, RJ45 interface
Audio In / Out1 x Line in / 1 x Line out
Control1 x RS485
Alarm In / Out1 x Input / 1 x Output
Video Out1 x BNC, 1.0V [p-p] / 75Ω
Memory SlotMicro SD card slot, supports up to 128GB
Environmental
Operating Temperature-30°C ~ 60°C / -22°F ~ 140°F
Operating Humidity10% ~ 95%
Electrical
Power12V DC ± 10% / PoE (IEEE802.3af)
Power ConsumptionMax. 6W
Mechanical
Weight0.5 kg / 1.1lb (Gross Weight)
Dimensions147.5 x 68 x 61mm / 5.81’’ x 2.68’’  x 2.40’’
Recommended Bracket

CM-W13

Wall mounted mounted small bracket

CM-W16

Wall mounted small bracket

Recommended Cover

CH-010

Indoor small shield

CH-111

Outdoor small shield

CH-112

Outdoor small shield

CH-113

Outdoor small shield

CH-114

Outdoor small shield

Recommended Lens

TV033105M.IR-B

RICOM, 3.3~10.5mm, 1/2.5", 3.0 Megapixels Manual focus

PVH04D14-3MEX

Phenix, 4~16mm, 1/2", 3.0 Megapixels Manual focus

YTN2812D.IR-3MP-9

YTOT, 2.8~12mm, 1/2.7", 3.0 Megapixels Manual focus

YV2.7X2.2SA-SA2L

FUJINON, 2.2~6mm, 1/3", 3 Megapixels Manual focus

YV4.3X2.8SA-SA2L

FUJINON, 2.8~12mm, 1/3", 3 Megapixels Manual focus

NV0560D.IR

RICOM, 5~60mm, 1/2.7", 1.3 Megapixels Manual focus

YTN0550D.IR

YTOT, 5~50mm, 1/2.7", 2.0 Megapixels Manual focus

YV3.3X15SR4A-SA2L

FUJINON, 15~50mm, 1/3", 3 Megapixels Manual focus

M13VG850IR

TAMRON, 8~50mm, 1/3", 3.0 Megapixels Manual focus
