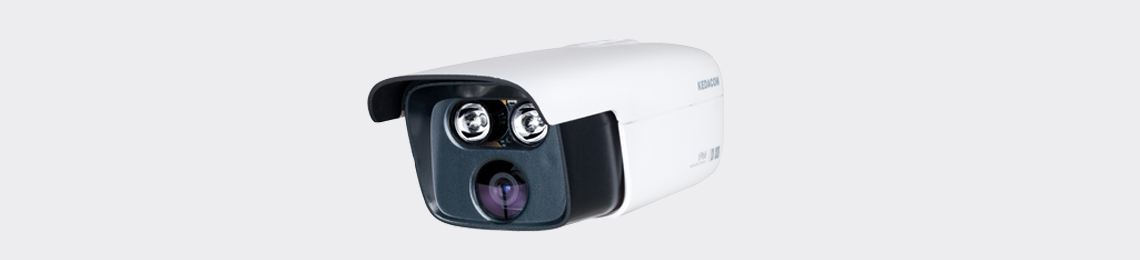

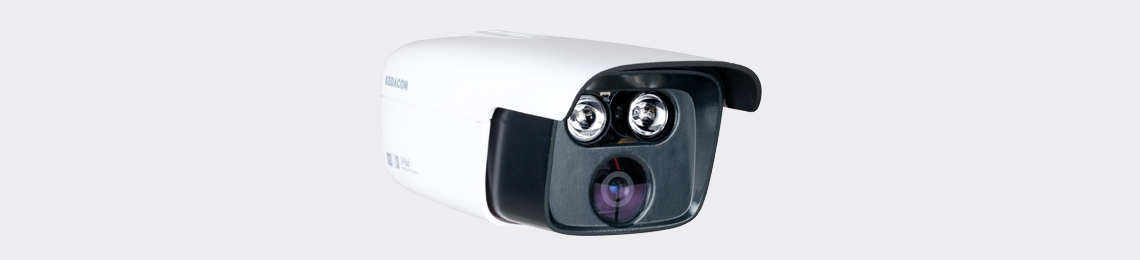

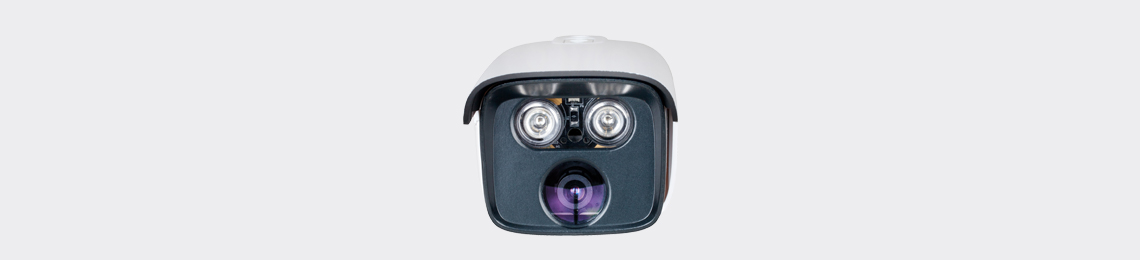

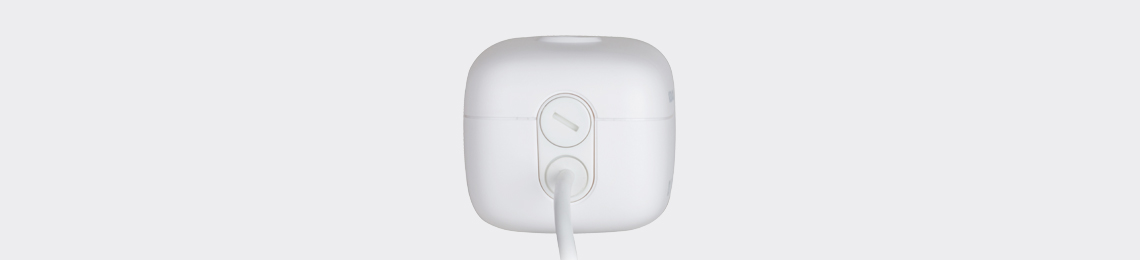

LC2150-AN 1.3MP HD Network IR Bullet Camera
Excellent Image Quality
  • 1.3 Megapixel 1/3'' progressive scan CMOS sensor
  • High definition and smooth picture, 960p@30fps
  • H.264 high profile video codec, saves up to 30% bandwidth and storage
  • Low illumination, 0.01lux with color picture
  • WDR support / 3D noise reduction / Auto Iris
Integrated High Efficiency IR
  • Industrial IR LED with long operational lifespan
  • 60 ~ 70m IR distance
  • Smart IR function
A Variety of Installation Modes
  • Supports 90°, 180°, 270° image rotation
  • Varifocal lens (Manual / Motorized)
Abundant Functions and Features
  • TF card slot, support Automatic Network Replenishment (ANR)
  • Dual-streaming (960p + D1)
  • Bi-directional audio / alarm in and out / video out / RS485
  • One click autofocus (-IR2 only)
  • -40°C ~ 70°C operation temperature
  • IP66
　LC2150-AN(-IR2, -IR3, -IR4, -IR5, -IR6)
Camera
Image Sensor1/3’’ progressive scan CMOS
Pixels1.3 Megapixel
Min. IlluminationColor: 0.01lux @ (F1.6, AGC ON)
B/W: 0lux  with IR
Shutter Speed1/10 ~ 1/10,000s
Day / NightAuto (ICR) / Color / B/W
Wide Dynamic RangeDigital WDR
S/N Ratio>50dB
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationOff / BLC / WDR
Lens
Mount TypeM12
Focal Length3.6mm (-IR2) / 6mm (-IR3) / 8mm (-IR4) / 12mm (-IR5) / 16mm (-IR6)
Angle of View75.6° (-IR2) / 46.7° (-IR3) / 35.3° (-IR4) / 23° (-IR5) / 16.9° (-IR6)
Infrared
IR LED1 pc IR LED(-IR2, -IR3, -IR4)
2 pcs IR LED(-IR5, -IR6)
IR Distance30m (-IR2, -IR3, -IR4)
50m (-IR5, -IR6)
IR IntensitySmart IR
Video
CompressionH.264 / MJPEG
Image ResolutionMain stream: 960p
Secondary stream: D1
Frame RateMain stream: 960p@30fps
Secondary stream: D1@30fps
Bitrate32kbps ~ 16Mbps
Bitrate ControlVBR / CBR
Multi-streamSupported
CaptionDate and time / Alarm / Customized
Privacy MaskingUp to 4 zones
Motion DetectionUp to 4 zones
Video FreezeSupported
Digital Noise Reduction3D noise reduction
Image FlipFlip / Mirror / Rotation at 90°,180°,270°
Network
Network ProtocolsTCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, IPv4, IPv6 (optional)
User InterfaceIPC Control (IE, Firefox, Chrome)
Max. User AccessMax. 10 Users (includes 2 internal)
Application ProgrammingONVIF (Profile S), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR)Supported
Alarm
Alarm TriggersMotion detection / Shield area / Network disconnect / Disk full / Disk Error
Alarm EventsAlarm report / Recording / Alarm caption / Snapshot
Interfaces
Ethernet10/100M, RJ45 interface
Memory SlotMicro SD card slot, supports up to 128GB
Environmental
Operating Temperature-30°C ~ 60°C / -22°F ~ 140°F
Operating Humidity10% ~ 95%
Protection LevelIP66
Electrical
Power12V DC ± 10% / PoE (IEEE802.3af)
Power ConsumptionMax. 10W
Mechanical
Weight1  kg / 2.2lb (Gross Weight)
Dimensions181.5 x 80 x 73mm / 7.15’’ x 3.15’’  x 2.87’’
Recommended Bracket

CM-W13

Wall mounted/ceiling mounted small bracket

CM-W16

Wall mounted small bracket
