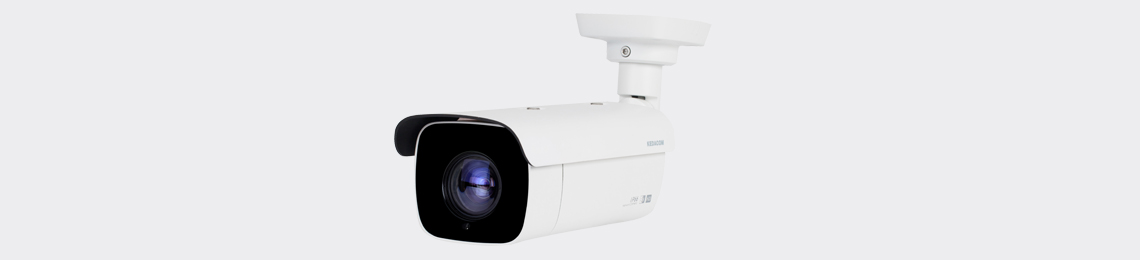

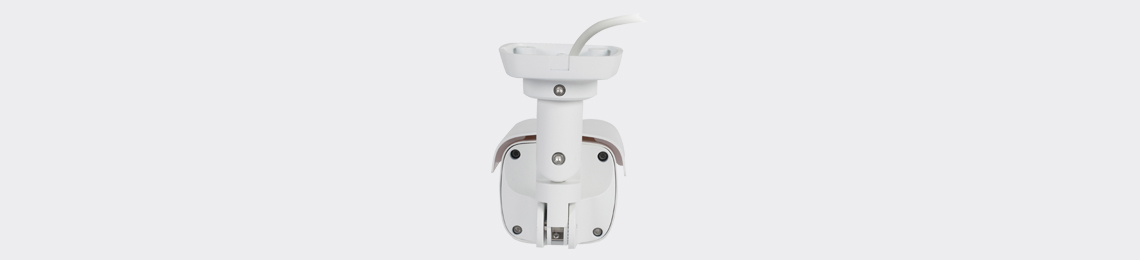

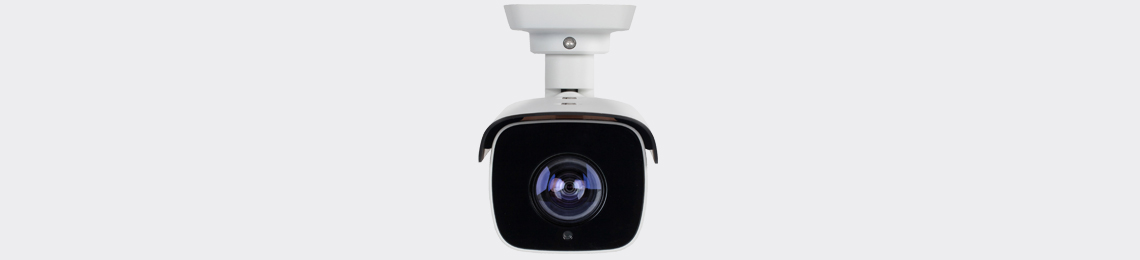

| IPC2251-HN/HNB(-SIR40-Z3009, -SIR80-Z6048) | |
| Camera | |
| Image Sensor | 1/2.8’’ progressive scan CMOS |
| Pixels | 2073600 Pixels |
| Min. Illumination | Color: 0.001lux @ (F1.4, AGC ON) |
| B/W: 0.0001lux @ (F1.4, AGC ON); 0Lux with IR | |
| Shutter Speed | 1 ~ 1/30,000s |
| Day / Night | Auto (ICR) / Color / B/W |
| Wide Dynamic Range | Ultra WDR, ≥120dB |
| S/N Ratio | >57dB |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Backlight Compensation | Off / BLC / WDR / HLC |
| Lens | |
| Mount Type | Φ14 |
| Auto Iris | DC drive |
| Focal Length | -SIR40-Z3009: 2.8-12mm @ F1.4 motorized varifocal lens -SIR80-Z6048: 6-48mm @ F1.4 motorized varifocal lens |
| Focus Control | Manual / Semi-Automatic / Auto |
| Angle of View | -SIR40-Z3009: 90°~ 37° -SIR80-Z6048: 65°~ 7.2° |
| Infrared | |
| IR Distance | -SIR40-Z3009: 30 ~ 50m -SIR80-Z6048: 80 ~ 120m |
| IR Intensity | Smart IR |
| Video | |
| Compression | H.265 / H.264 / MJPEG |
| Image Resolution | Main stream: 1080p |
| Secondary stream: D1 | |
| Frame Rate | Main stream: 1080p@30fps |
| Secondary stream: D1@30fps | |
| Bitrate | 32kbps ~ 16Mbps |
| Bitrate Control | VBR / CBR |
| Multi-stream | Support |
| Caption | Date and time / Alarm / Direction / Customized |
| Privacy Masking | Up to 4 zones |
| Motion Detection | Up to 4 zones |
| Video Freeze | Supported |
| ROI | Supported |
| Digital Noise Reduction | 3D noise reduction |
| Digital Defog | Supported |
| Image Flip | Flip / Mirror / Rotation at 90°,180°,270° / Auto flip (Built-in G-sensor) |
| Audio | |
| Compression | G.711a / G.711u / ADPCM / G.722 / G.722.1c / G.726 |
| Bitrate | 32kbps ~ 64kbps |
| Audio Function | Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute |
| Network | |
| Network Protocols | TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6, HTTPS, NTP, SNTP,SNMP, IEEEE802.1X
|
| User Interface | IPC Control (IE, Firefox, Chrome) |
| Max. User Access | Max. 10 Users (includes 2 internal) |
| Application Programming | ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI |
| Automatic Network Replenishment (ANR) | Supported |
| Alarm | |
| Alarm Triggers | Alarm input / Network disconnect / Disk full / Disk error |
| Intelligent | Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge |
| Alarm Events | Alarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm |
| Interfaces | |
| Ethernet | 10/100M, RJ45 interface |
| Audio In / Out | 2 x Line in / 1 x Line out |
| Control | 1 x RS485 |
| Alarm In / Out | 1 x Input / 1 x Output |
| Video Out | 1 x BNC, 1.0V [p-p] / 75Ω |
| Memory Slot | Micro SD card slot, supports up to 128GB |
| Environmental | |
| Operating Temperature | -40°C ~ 70°C / -40°F ~ 158°F |
| Operating Humidity | 10% ~ 95% |
| Protection level | IP67 |
| Electrical | |
| Power | 12V DC ± 10% / PoE (IEEE802.3af) |
| Power Consumption | -SIR40-Z3009: Max. 12.5W -SIR80-Z6048: Max. 15W |
| Mechanical | |
| Weight | -HNB: 2.5 kg / 5.5lb (Gross Weight) -HN: 2 kg / 4.4lb (Gross Weight) |
| Dimensions | -HNB: 313.6mm×108.8mm×157mm / 12.35'' x 4.28'' x 6.19'' -HN: 233.3mm×108.8mm×91.5mm / 9.19'' x 4.28'' x 3.60'' |
| Mounting Bracket | -HNB: Bracket included -HN: Bracket not included |
CM-W15
Wall mounted big bracket
CM-W21
Ceiling mounted big bracket
