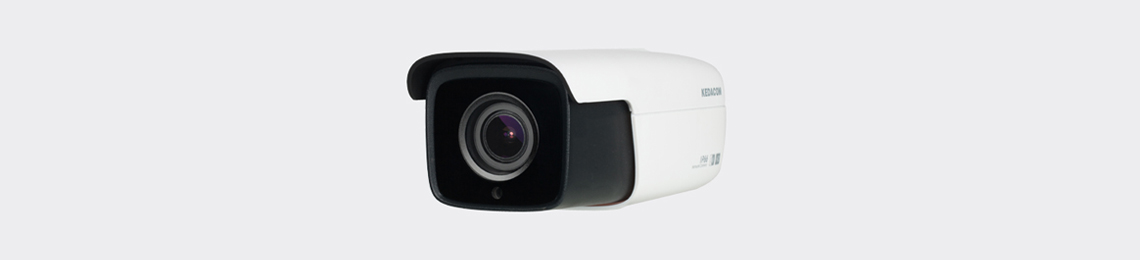

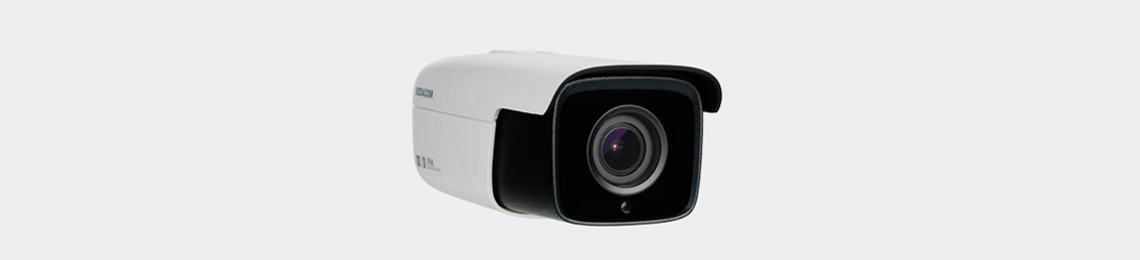

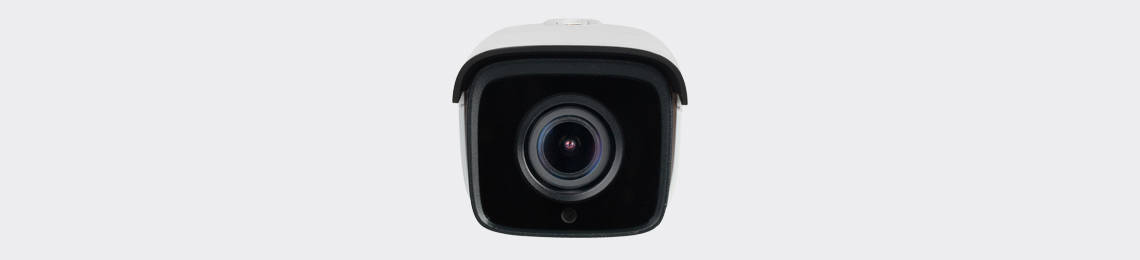

IPC2252-HN-PIR50-Z2812 2.0MP HD Network Varifocal IR Bullet Camera

Excellent Image Quality

  • 2.0 Megapixel 1/3’’ progressive scan CMOS Sensor
  • High definition and smooth picture, 1080p@30fps
  • H.265 video codec, saves up to 50% bandwidth and storage
  • Low illumination, 0.03lux with color picture
  • WDR / HLC / 3D noise reduction

Intelligent Functions

  • Motion detection / Tampering / Guard line / Enter guard area / Exit guard area

Integrated High Efficiency IR

  • Industrial IR LED with long operational lifespan
  • 30 ~ 50m IR distance
  • Smart IR function

A Variety of Installation Modes

  • Supports 90°, 180°, 270° image rotation
  • Motorized varifocal lens

Abundant Functions and Features

  • TF card slot,  support Automatic Network Replenishment (ANR)
  • Up to 3 video streams
  • Anti-fog with heating glass
  • -40°C ~ 70°C operation temperature
  • PoE
  • IP66
 IPC2252-HN-PIR50-Z2812
Camera
Image Sensor1/3’’ progressive scan CMOS
Pixels2.0 Megapixel
Min. IlluminationColor: 0.03lux @ (F1.6,  AGC ON)
B/W: 0lux  with IR
Shutter Speed1 ~ 1/30,000s
Day / NightAuto (ICR) / Color / B/W
Wide Dynamic RangeDigital WDR
S/N Ratio>50dB
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationOff / WDR / BLC / HLC
Lens
Mount TypeΦ14
Auto IrisDC drive
Focal Length2.8-12mm @ F1.6 motorized varifocal lens
Focus ControlManual / Semi-Automatic / Auto
Angle of View95°~ 38°
Infrared
IR Distance30 ~ 50m
IR IntensitySmart IR
Video
CompressionH.265 / H.264 / MJPEG
Image ResolutionMain stream: 1080p
Secondary stream: D1
Frame RateMain stream: 1080p@30fps
Secondary stream: D1@30fps
Bitrate32kbps ~ 16Mbps
Bitrate ControlVBR / CBR
Multi-streamSupported
CaptionDate and time / Alarm / Customized
Privacy MaskingUp to 4 zones
Motion DetectionUp to 4 zones
ROISupported
Digital Noise Reduction3D noise reduction
Digital DefogSupported
Image FlipFlip / Mirror / Rotation at 90°, 180°, 270°
Network
Network ProtocolsTCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User InterfaceIPC Control (IE, Firefox, Chrome)
Max. User AccessMax. 10 Users (includes 2 internal)
Application ProgrammingONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR)Supported
Alarm
Alarm TriggersNetwork disconnect / Disk full / Disk error
IntelligentMotion detection / Tampering / Guard line / Enter guard area / Exit guard area
Alarm EventsAlarm report / Recording / Text overlay / Snapshot / Email notice / Acoustic alarm
Interfaces
Ethernet10/100M, RJ45 interface
Memory SlotMicro SD card slot, supports up to 128GB
Environmental
Operating Temperature-40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity10% ~ 95%
Protection LevelIP66
Electrical
Power12V DC ± 10% / PoE (IEEE802.3af)
Power ConsumptionMax. 11W
Mechanical
Weight1kg / 2.2lb (Gross Weight)
Dimensions187.3 x 80 x 73mm / 7.37’’ x 3.15’’  x 2.87’’
Mounting BracketBracket included
