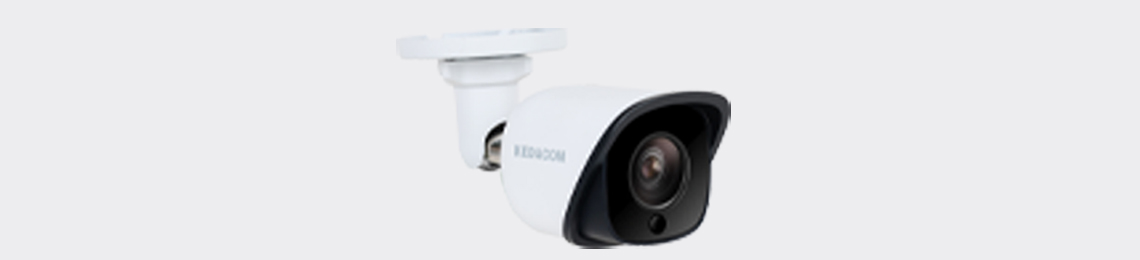

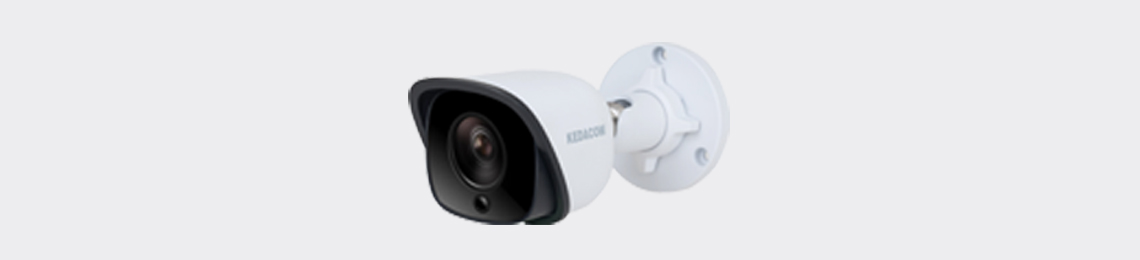

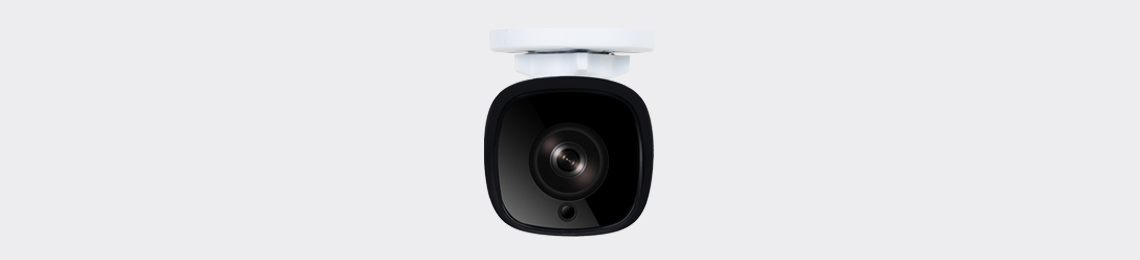

IPC2253-FNB-PIR40 2.0MP Starlight & Ultra WDR HD Network Mini IR Bullet Camera
Excellent Image Quality
  • 2.0 Megapixel 1/2.8’’ Progressive Scan CMOS Sensor
  • High definition and smooth picture, 1080p@30fps
  • H.265 video codec, saves up to 50% bandwidth and storage
  • Ultra low illumination, 0.002lux with color picture
  • 120dB Ultra WDR
  • 3D noise reduction / HLC
Mini size
  • 0.6 kg / 1.32lb (Gross Weight)
  • 161.5 x 62 x 57mm / 6.36''  x 2.44'' x 2.24''
Intelligent Functions
  • Motion detection / Tampering / Guard line / Enter guard area / Exit guard area
Integrated High Efficiency IR
  • Industrial IR LED with long operational lifespan
  • 40m IR distance
  • Smart IR function
A Variety of Installation Modes
  • Supports 90°, 180°, 270° image rotation
Abundant Functions and Features
  • Micro SD card slot, supports Automatic Network Replenishment (ANR)
  • Dual-stream (1080p + D1)
  • Anti-fog glass
  • -40°C ~ 70°C operation temperature
  • PoE
  • IP67



 IPC2253-FNB-PIR40
Camera
Image Sensor 1/2.8’’ progressive scan CMOS
Pixels2.0 Megapixel
Min. Illumination Color: 0.002lux @ (F2.0,  AGC ON)
B/W: 0.0002lux @ (F2.0,  AGC ON); 0lux  with IR
Shutter Speed1 ~ 1/30,000s
Day / NightAuto (ICR) / Color / B/W
Wide Dynamic RangeUltra WDR, >=120db
S/N Ratio>50dB
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationOff / WDR / BLC / HLC
Lens
Mount TypeM12
Focal Length3.6mm (-L0360) / 6mm (-L0600)
Angle of View78.6° (-L0360) / 53.2° (-L0600)
Infrared
IR Distance40m (-L0360, -L0600)
IR IntensitySmart IR
Video
CompressionH.265 / H.264 / MJPEG
Image ResolutionMain stream: 1080p
Secondary stream: D1
Frame RateMain stream: 1080p@30fps
Secondary stream: D1@30fps
Bitrate64kbps ~ 8Mbps
Bitrate ControlVBR / CBR
Dual-streamSupported
CaptionDate and time / Alarm / Customized
Privacy MaskingUp to 4 zones
Motion DetectionUp to 4 zones
ROISupported
Digital Noise Reduction3D noise reduction
Digital DefogSupported
Image FlipFlip / Mirror / Rotation at 90°, 180°, 270°
Network
Network ProtocolsTCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User InterfaceIPC Control (IE, Firefox, Chrome)
Max. User AccessMax. 10 Users (includes 2 internal)
Application ProgrammingONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR)Supported
Alarm
Alarm TriggersNetwork disconnect / Disk full / Disk error
IntelligentMotion detection / Tampering / Guard line / Enter guard area / Exit guard area
Alarm EventsAlarm report / Recording / Text overlay / Snapshot / Email notice
Interfaces
Ethernet10/100M, RJ45 interface
Memory SlotMicro SD card slot, supports up to 128GB
Environmental
Operating Temperature-40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity 10% ~ 95%
Protection LevelIP67
Electrical
Power 12V DC ± 10% / PoE (IEEE802.3af)
Power ConsumptionMax. 7W
Mechanical
Weight 0.6 kg / 1.32lb (Gross Weight)
Dimensions161.5 x 62 x 57mm / 6.36’’ x 2.44’’ x 2.24’’
Mounting BracketBracket included
