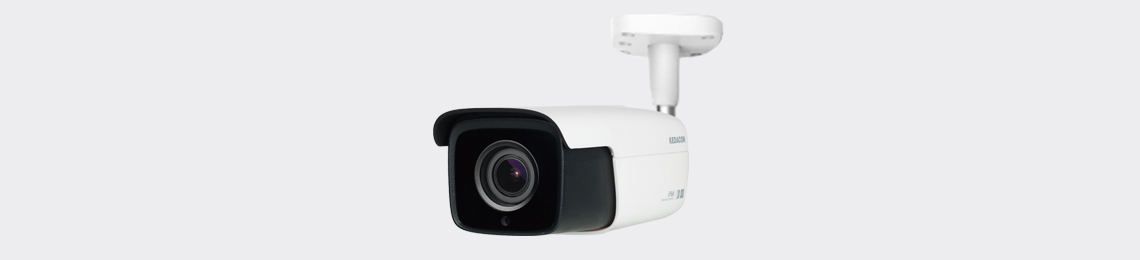

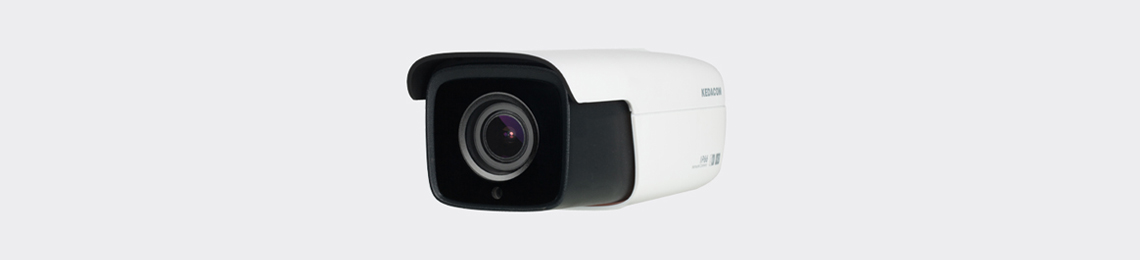

IPC2552-FN/FNB-SIR50-Z2812 5.0MP Starlight & Ultra WDR HD Network Varifocal IR Bullet Camera
Excellent Image Quality
  • 5.0 Megapixel 1/2.8’’ progressive scan CMOS sensor

  • High definition and smooth picture,  3072x1728@30fps

  • H.265 video codec, saves up to 50% bandwidth and storage

  • Ultra low illumination, 0.005lux with color picture

  • 120dB Ultra WDR

  • 3D noise reduction / HLC

Intelligent Functions
  • Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area  / Object left / Object removal / Gathering / Audio surge

  • Support Deep Learning Algorithm

Integrated High Efficiency IR
  • Industrial IR LED with long operational lifespan

  • Up to 70m IR distance

  • Smart IR function

A Variety of Installation Modes
  • Supports 90°, 180°, 270° image rotation

  • Motorized varifocal lens

Abundant Functions and Features
  • Micro SD card slot, supports Automatic Network Replenishment (ANR)

  • Bi-directional audio / alarm in and out / RS485

  • Up to 3 Multi-stream

  • Anti-fog glass

  • -40°C ~ 70°C operation temperature

  • PoE

  • IP67



 IPC2552-FN/FNB-SIR50-Z2812
Camera
Image Sensor 1/2.8’’ progressive scan CMOS
Pixels5.0 Megapixel
Min. Illumination Color: 0.005lux@ (F1.6,  AGC ON)
B/W: 0.0005lux@ (F1.6,  AGC ON); 0lux with IR
Shutter Speed1 ~ 1/30,000s
Day / NightAuto (ICR) / Color / B/W
Wide Dynamic RangeUltra WDR, >=120db
S/N Ratio>=58db
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationOff / WDR / BLC / HLC
Lens
Mount TypeΦ14
Auto IrisDC drive
Focal Length-Z2812: 2.8-12mm @F1.6~F3.3 motorized varifocal lens
Focus ControlManual / Semi-Automatic / Auto
Angle of ViewHorizontal : 30.3°(T)~107°(W)   Vertical : 17°(T)~56.1°(W)
Infrared
IR Distance50 ~ 70m
IR IntensitySmart IR
Video
CompressionSmart 265 / H.265 (Main Profile) / H.264 (BaseLine Profile/Main Profile/High Profile) / MJPEG
Image ResolutionMain stream: 3072x1728
Secondary stream: 720P
Third stream: D1
Frame RateMain stream:3072x1728@30fps / 3072x1728@25fps(with WDR on)
Secondary stream: 720P@30fps
Third stream: D1@30fps
Bitrate32kbps ~ 16Mbps
Bitrate ControlVBR / CBR
Multi-streamSupported
CaptionDate and time / Alarm / Customized
Privacy MaskingUp to 4 zones
Motion DetectionUp to 4 zones
ROISupported
Digital Noise Reduction3D noise reduction
Digital DefogSupported
Image FlipFlip / Mirror / Rotation 90°, 180°, 270°
Audio
CompressionG.711a / G.711u / ADPCM / G.722 / G.722.1c / G.726
Bitrate32kbps ~ 64kbps
Audio FunctionBi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network ProtocolsTCP/IP, UDP, HTTP,HTTPS, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, IGMP,UPnP, 802.1x, NAT, QoS, SMTP, IPv4 , IPv6 (optional)
Max. User AccessMax. 20 Users (includes 2 internal)
Application ProgrammingONVIF (Profile S, Profile G), GB/T 28181-2016, API, CGI
Automatic Network Replenishment (ANR)Supported
Alarm
Alarm TriggersAlarm input / Network disconnect / Disk full / Disk error
Basic IntelligentTampering / Defocus / Scene change / Object left / Object removal / Audio surge
Deep Learning IntelligentHuman & Vehicle Detection:
Motion detection / Guard line  / Enter guard area / Exit guard area / People Gathering
Alarm EventsAlarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm
Interfaces
Ethernet10/100M, RJ45 interface
Audio In / Out1 x Line in / 1 x Line out
Control1 x RS485
Alarm In / Out2 x Input / 1 x Output
Memory SlotMicro SD card slot,supports up to 256GB
Environmental
Operating Temperature-40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity 10% ~ 95%, No condensation
Protection LevelIP67, IK10(optional)
Electrical
Power 12V DC ± 10% / PoE (IEEE802.3af)
Power ConsumptionMax. 11W
Mechanical
Weight -FN: 1kg / 2.2lb (Gross Weight)
-FNB: 1.2kg / 2.65lb (Gross Weight)
Dimensions-FN: 181.5 x 80 x 73mm / 7.15’’ x 3.15’’ x 2.87’’
-FNB: 271.3 x 80 x 87.8mm / 10.68’’ x 3.15’’ x 3.46’’
Mounting Bracket-FN: Bracket not included
-FNB: Bracket included
