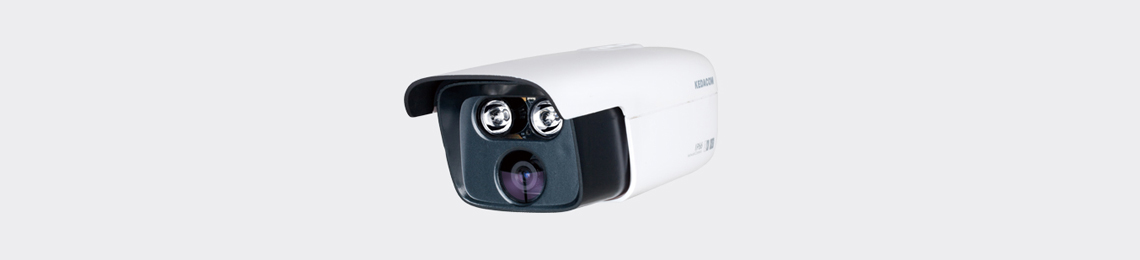

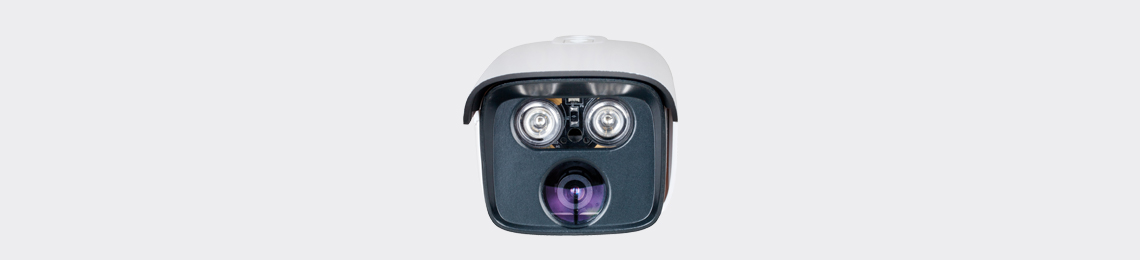

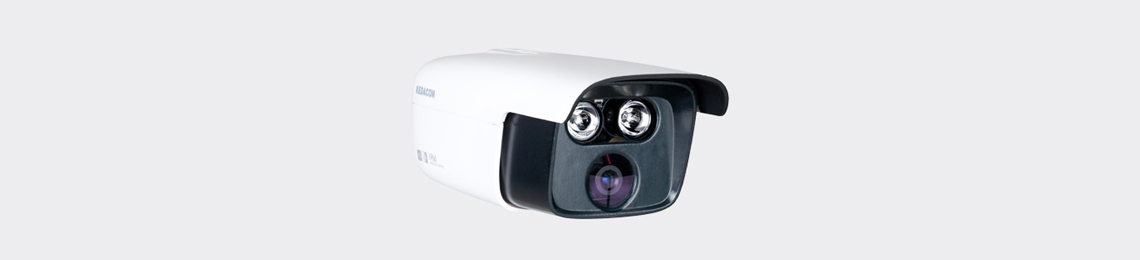

IPC2452-HN-DIR | |
Camera | |
Image Sensor | 1/3’’ progressive scan CMOS |
Pixels | 4.0 Megapixel |
Min. Illumination | Color: 0.05lux @ (F1.6, AGC ON) |
B/W: 0lux with IR | |
Shutter Speed | 1 ~ 1/30,000s |
Day / Night | Auto (ICR) / Color / B/W |
Wide Dynamic Range | Digital WDR |
S/N Ratio | >50dB |
White Balance | Auto / Manual |
Gain Control | Auto / Manual |
Backlight Compensation | Off / WDR / BLC / HLC |
Lens | |
Mount Type | M12 |
Focal Length | 3.6mm (-L0360) / 6mm (-L0600) / 8mm (-L0800) / 12mm (-L1200) / 16mm (-L1600) |
Angle of View | 78.6° (-L0360) / 53.2° (-L0600) / 36.8° (-L0800) / 23.7° (-L1200) / 17.8° (-L1600) |
Infrared | |
IR Distance | 30m (-L0360, -L0600, -L0800) 50m (-L1200, -L1600) |
IR Intensity | Smart IR |
Video | |
Compression | H.265 / H.264 / MJPEG |
Image Resolution | Main stream: 2592×1520 |
Secondary stream: D1 | |
Frame Rate | Main stream: 2592×1520@20fps, 2048×1520@25fps, 1080p@30fps |
Secondary stream: D1@30fps | |
Bitrate | 64kbps ~ 16Mbps |
Bitrate Control | VBR / CBR |
Dual-stream | Supported |
Caption | Date and time / Alarm / Customized |
Privacy Masking | Up to 4 zones |
Motion Detection | Up to 4 zones |
ROI | Supported |
Digital Noise Reduction | 3D noise reduction |
Digital Defog | Supported |
Image Flip | Flip / Mirror / Rotation 90°, 180°, 270° |
Network | |
Network Protocols | TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional) |
User Interface | IPC Control (IE, Firefox, Chrome) |
Max. User Access | Max. 10 Users (includes 2 internal) |
Application Programming | ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI |
Alarm | |
Alarm Triggers | Network disconnect |
Intelligent | Motion detection / Tampering / Guard line / Enter guard area / Exit guard area |
Alarm Events | Alarm report / Text overlay / Email notice |
Interfaces | |
Ethernet | 10/100M, RJ45 interface |
Environmental | |
Operating Temperature | -40°C ~ 70°C / -40°F ~ 158°F |
Operating Humidity | 10% ~ 95% |
Protection Level | IP66 |
Electrical | |
Power | 12V DC ± 10% / External PoE (Optional) |
Power Consumption | Max. 11W |
Mechanical | |
Weight | 1 kg / 2.2lb (Gross Weight) |
Dimensions | 181.5 x 80 x 73mm / 7.15’’ x 3.15’’ x 2.87’’ |
CM-W13
Wall mounted/ceiling mounted small bracket
CM-W16
Wall mounted small bracket
